LA9800XPW1 07 – GEARCASE

LA9800XPW1 07 – GEARCASE

Written by

in

LA9800XPW1 07 – GEARCASE

Products

PositionProduct

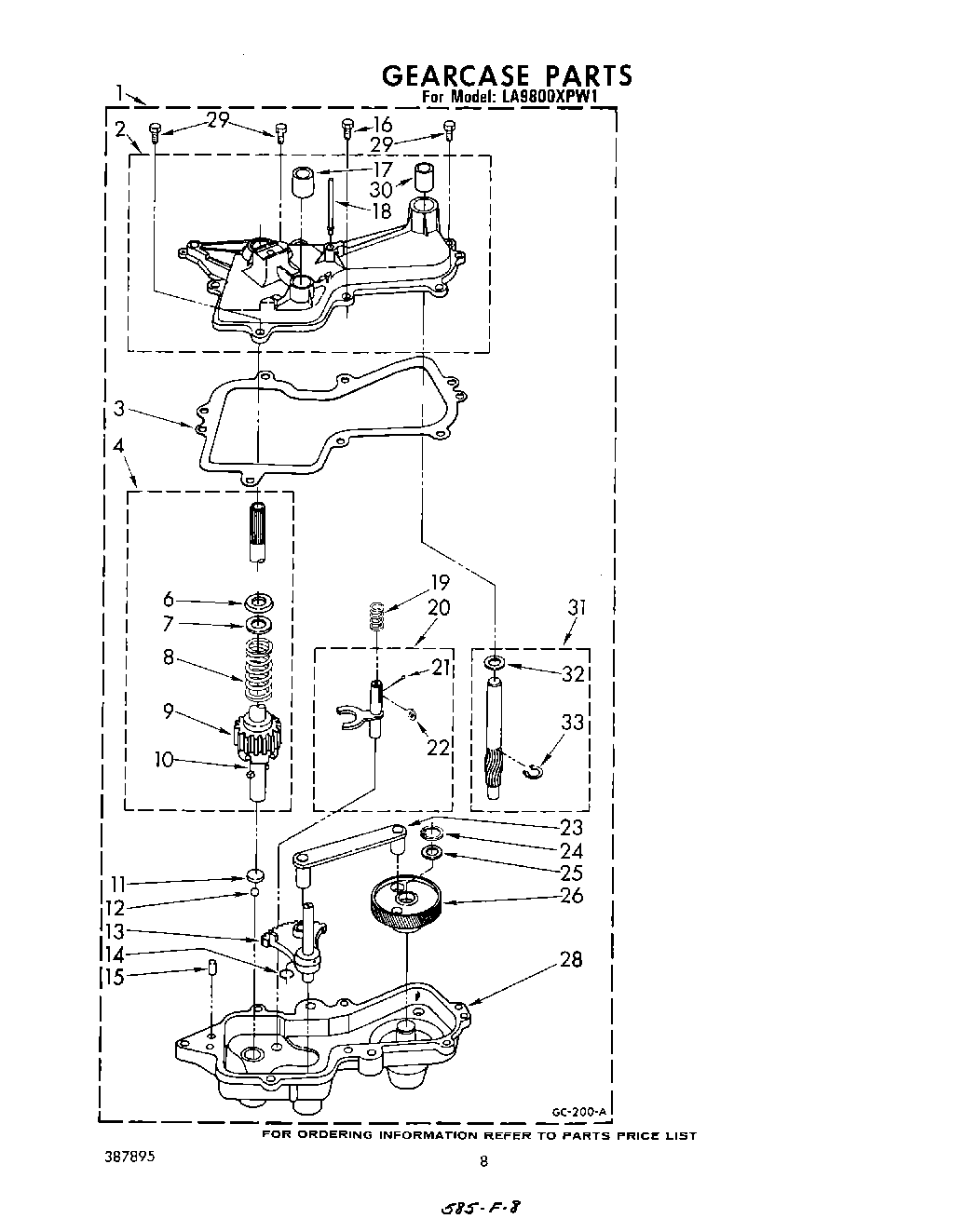

1Gearcase (For Further Breakdown Refer To Page 10)
2Cover, Gearcase
3Gasket, Gearcase
4Shaft, Agitator
6Seal, Agitator Shaft
7Shield, Agitator Spring
8Spring, Agitator Shaft
9Gear, Agitator Shaft
10Shaft, Agitator
11285205 Whirlpool Bearing
13Gear, Sector
14Ring, Retainer
15Pin, Dowel
16Bolt, 5/16-24 x 3/4 (4)
17Bearing, Gear Fork
18Support, Brake Shoe Yoke
19Spring, Gear Fork Shaft
20Fork, Agitator Gear
21Pin, Gear Fork Shaft
22Roller, Gear Fork Shaft
23Rod, Connecting
24Ring, Retaining
25Washer, Retainer
26Gear, Main Drive
28Gearcase
29Bolt, 5/16-24 x 1-1/8 (2)
30Bearing, Drive Pinion
31Pinion, Drive
32Washer, Drive Pinion
33Ring, Retainer
33350572 Whirlpool Oil Transmission 15 Oz
