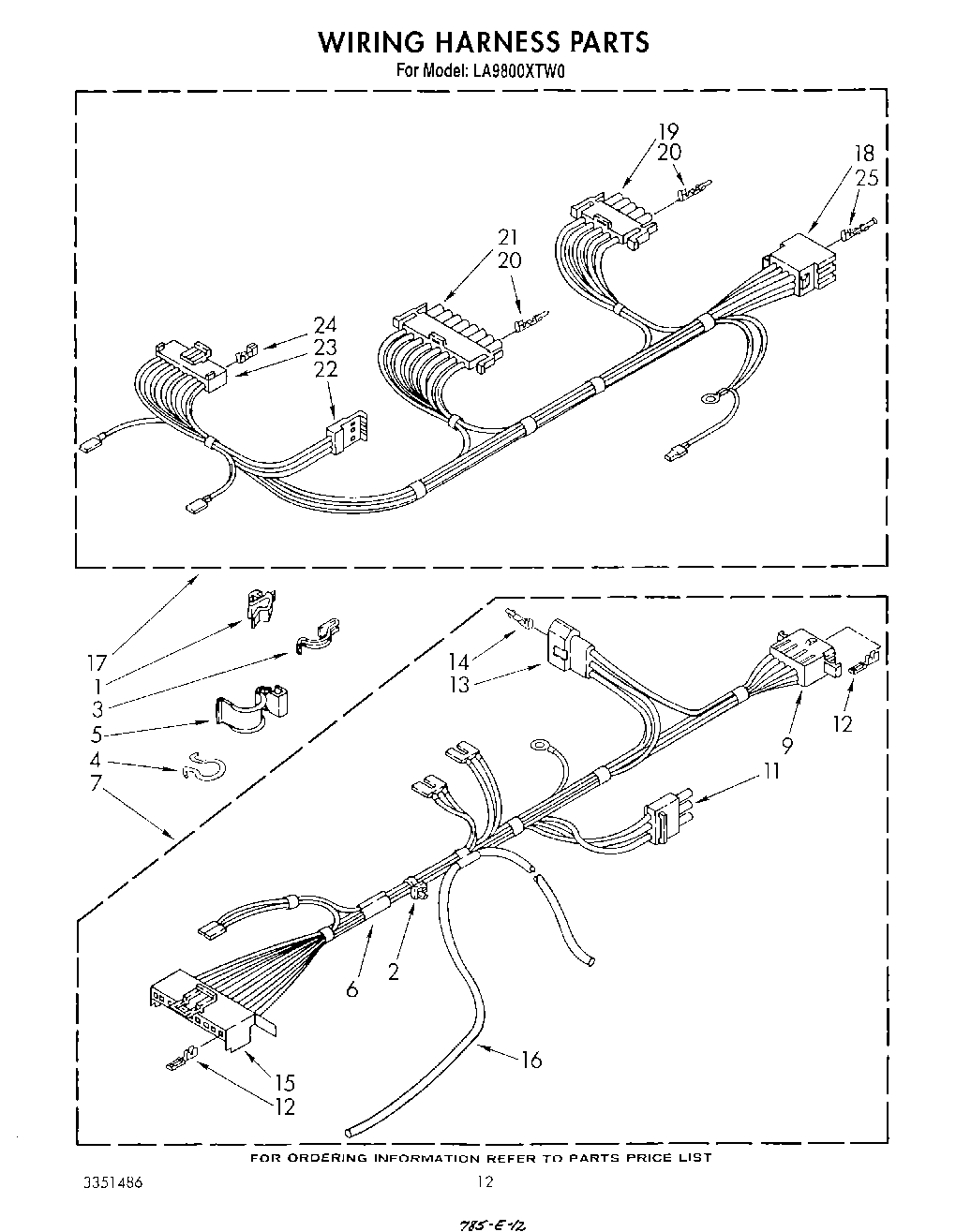

LA9800XTF0 10 – WIRING HARNESSadmin2025-04-26T12:35:03+00:00LA9800XTF0 10 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Clip, Harness |
| 2 | Clip, Harness |
| 3 | 8528351 Whirlpool Clip |
| 4 | Clip, Harness (3) |
| 5 | WP90016 Whirlpool Clip |
| 6 | Protector, Harness |
| 7 | Wiring Harness & Pressure Switch Hose (Base) |
| 9 | Plug, Terminal (15 Way) |
| 11 | WP62889 Whirlpool Washer Lid Switch Terminal Receptacle |
| 12 | WP94614 Whirlpool Terminal |
| 13 | 353424 Whirlpool Connector |
| 15 | WP62505 Whirlpool Connector |
| 16 | WP353244 Whirlpool Hose |
| 17 | Harness, Wiring (Console) |
| 18 | Cap, Terminal (15 Way) |
| 19 | Connector, 5 Terminal (Uses Terminal 388499) |
| 20 | Terminal |
| 21 | Connector, 8 Terminal (Uses Terminal 388499) |
| 22 | Connector, 3 Terminal |
| 23 | Cap, 10 Pin (Uses Terminal 772581) |
| 24 | Terminal |
| 25 | WP596797 Whirlpool Terminal |
