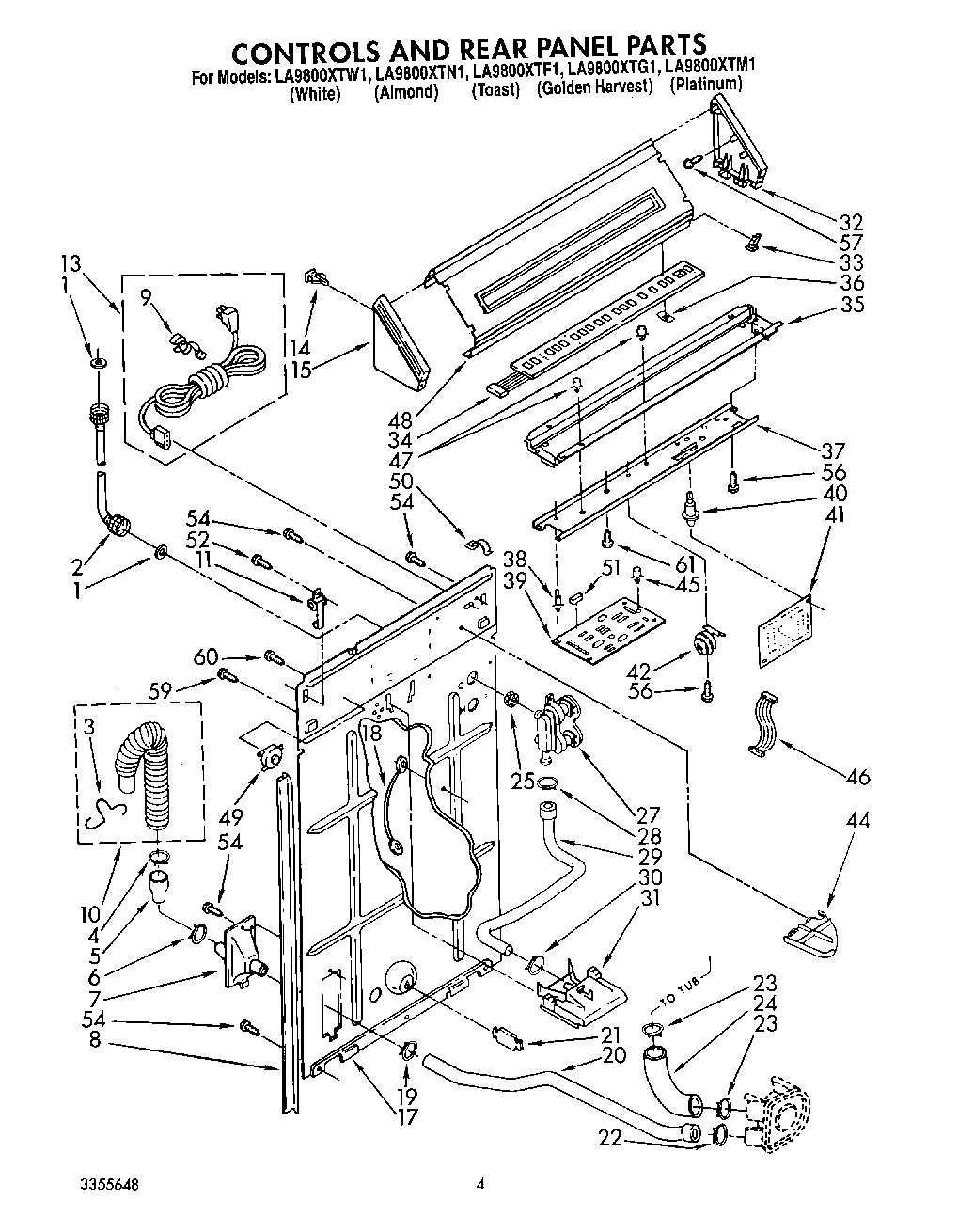

LA9800XTF1 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP89503 Whirlpool Washer Fill Hose
3	WPL 3350222
4	WP616099 Whirlpool Clamp
5	WP384496 Whirlpool Hose Coupling
7	WPW10358149 Whirlpool Hose
8	WP62747 Whirlpool Pad
9	Strain Relief, Power Cord
10	285666 Whirlpool Drain Hose 10'
10	285664 Whirlpool Drain Hose
11	Hinge, Console (2)
13	Cord, Power
14	WP689559 Whirlpool Nut
15	Cap, End (L.H.)
17	Panel, Rear
18	WPL 364089
19	WP356138 Whirlpool Hose Clamp
20	WP3348552 Whirlpool Hose
21	WP8519200 Whirlpool Support Assembly
22	WP285655 Whirlpool Hose Clamp
23	WP371502 Whirlpool Clamp
24	285871 Whirlpool Hose and Clamp
25	WP96160 Whirlpool Washer Inlet Valve Screen
27	285805 Whirlpool Washer Water Inlet Valve
29	HOSE
30	WP596669 Whirlpool Hose Clamp
31	WP3360977 Whirlpool Washer Tub Fill Nozzle
32	WPL 63795
33	W10113937 Whirlpool Clamp
34	Touch Module
35	Bracket, Control
36	Nut (6)
37	Bracket, Console
38	WPL 313087
39	Microcomputer
40	Support, Power Control
41	Relay, Power Control Board
42	Switch, Water Level
44	WPL 3348424
45	Support, Circuit Board
46	Jumper, Board To Board
47	Support, Circuit Board (3)
48	Panel and Bezel, Control
49	Speaker
50	8528351 Whirlpool Clip
51	Connector, Two Terminal
52	WP308685 Whirlpool Microwave Screw
54	WP3390631 Whirlpool Screw
56	WP90767 Whirlpool Screw
57	WPL 355326
60	SCREW
61	Wire, 25` Roll (Red 12 Ga.)
61	Wire, 25` Roll (Blue 16 Ga.)
61	WP3351614 Whirlpool Screw
