LA9900 04 – CONTROL PANEL

LA9900 04 – CONTROL PANEL

Written by

in

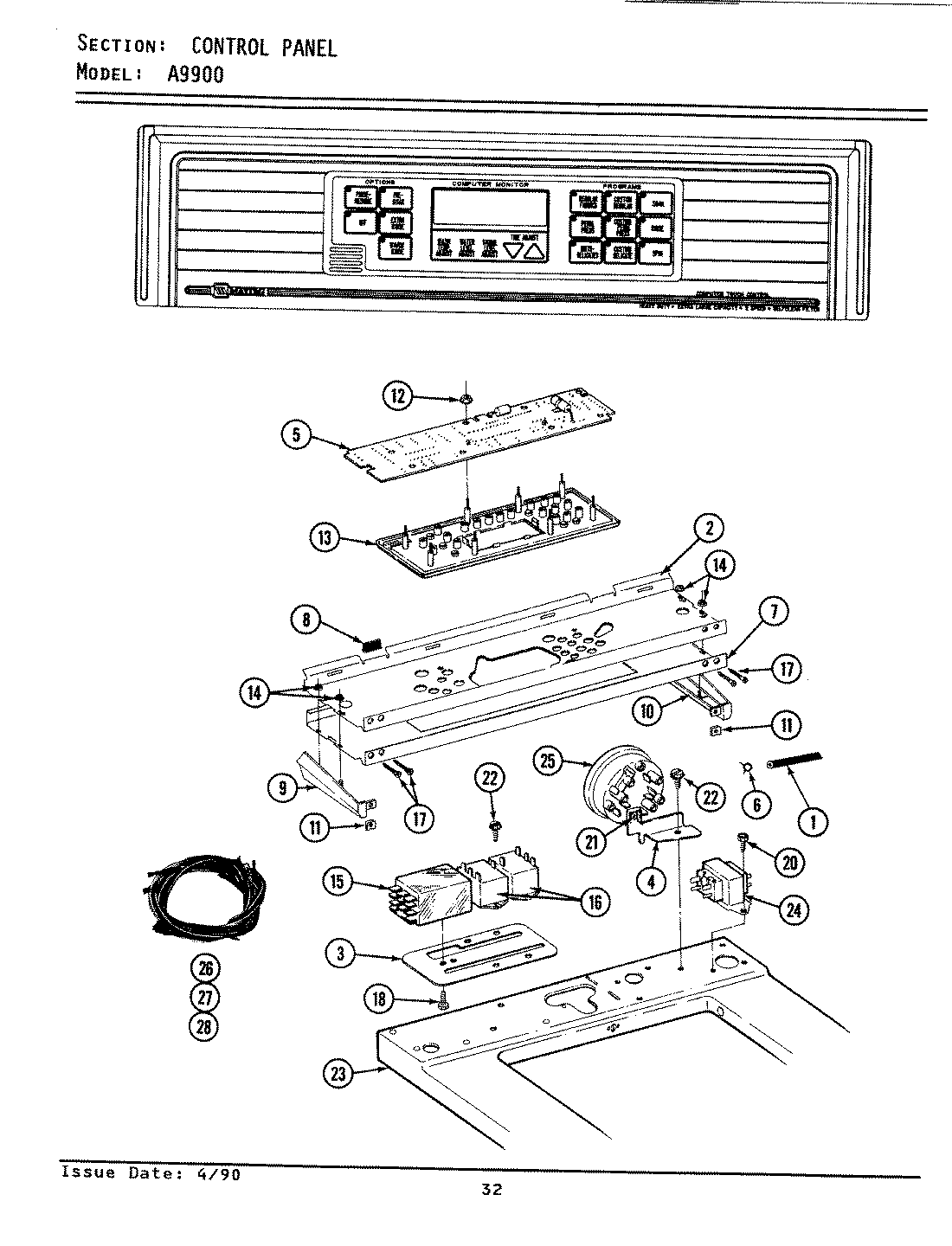

LA9900 04 – CONTROL PANEL

Products

PositionProduct
1MAY 212942
2MAY 215722
3MAY 215725
4MAY 215720
5MAY 207208
6WP596669 Whirlpool Hose Clamp
7MAY 207220
8MAY 214897
9MAY 207215
10MAY 207216
11MAY 214894
12M0282005 Whirlpool Nut
13MAY 207235
14MAY 214872
15MAY 206421
16MAY 207770
17MAY 210932
18SCREW, BUSHINGS
19WP90767 Whirlpool Screw
20MAY Y313559
21MAY Y311711
22SCREW
23MAY 207170L
24MAY 207766
25MAY 207213
26MAY 207218
27MAY 207211
28MAY 207212
