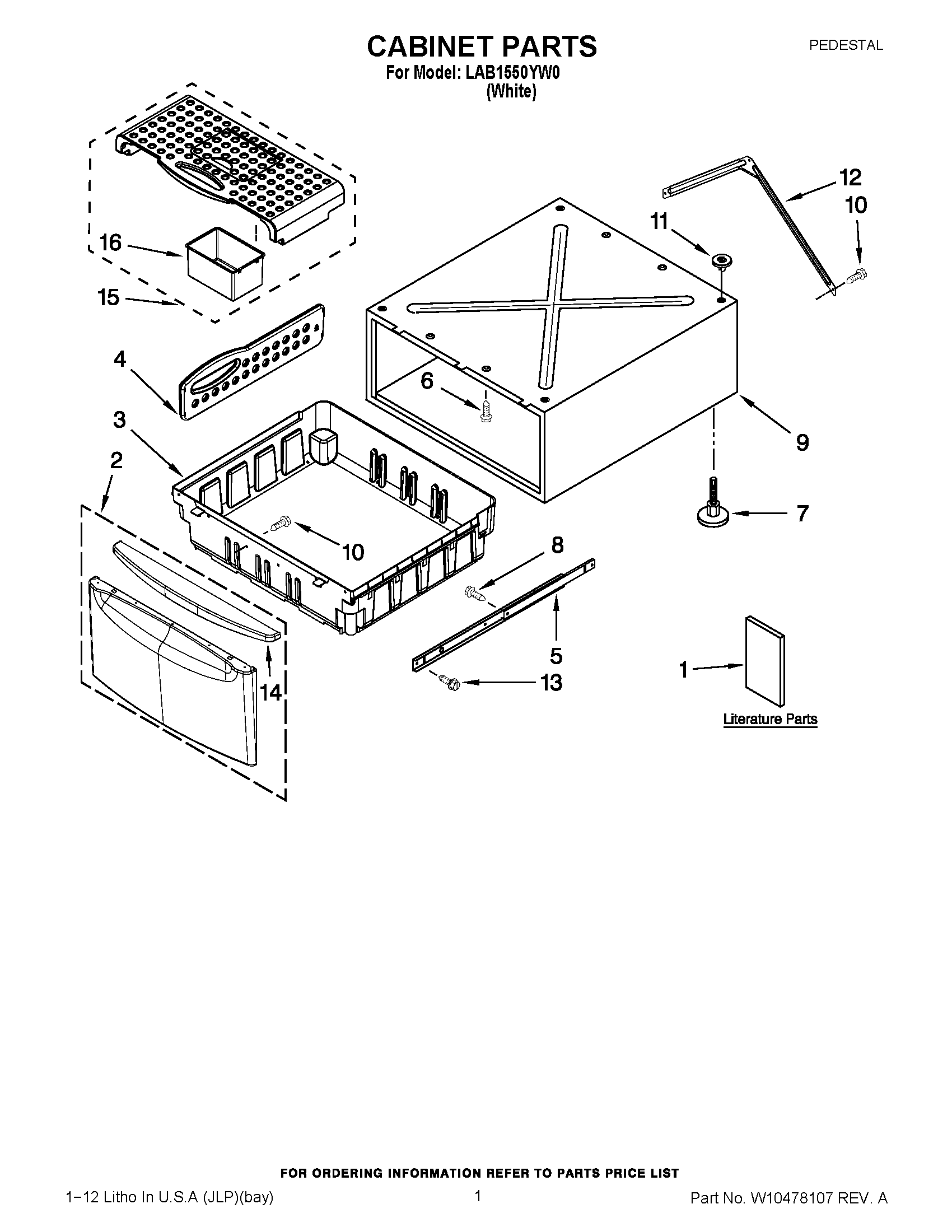

LAB1550YW0 01 – CABINET PARTS

Products

Position	Product
NI	350930 Whirlpool White Spray Paint
NI	350938 Whirlpool Spray Gun
NI	72017 Whirlpool Appliance Touch-Up Paint White
1	INSTALLATION INSTRUCTIONS
2	WPW10103454 Whirlpool Front
3	W11047790 Whirlpool Drawer
4	WPW10189999 Whirlpool Divider
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	CABINET (NOT A SERVICEABLE PART)
10	WPW10213953 Whirlpool Screw
11	WP8537982 Whirlpool Pad
12	WPW10169550 Whirlpool Brace
13	WP9740849 Whirlpool Screw
14	WPW10243437 Whirlpool Handle
15	Shelf, U Assembly
16	Box, U Shelf
