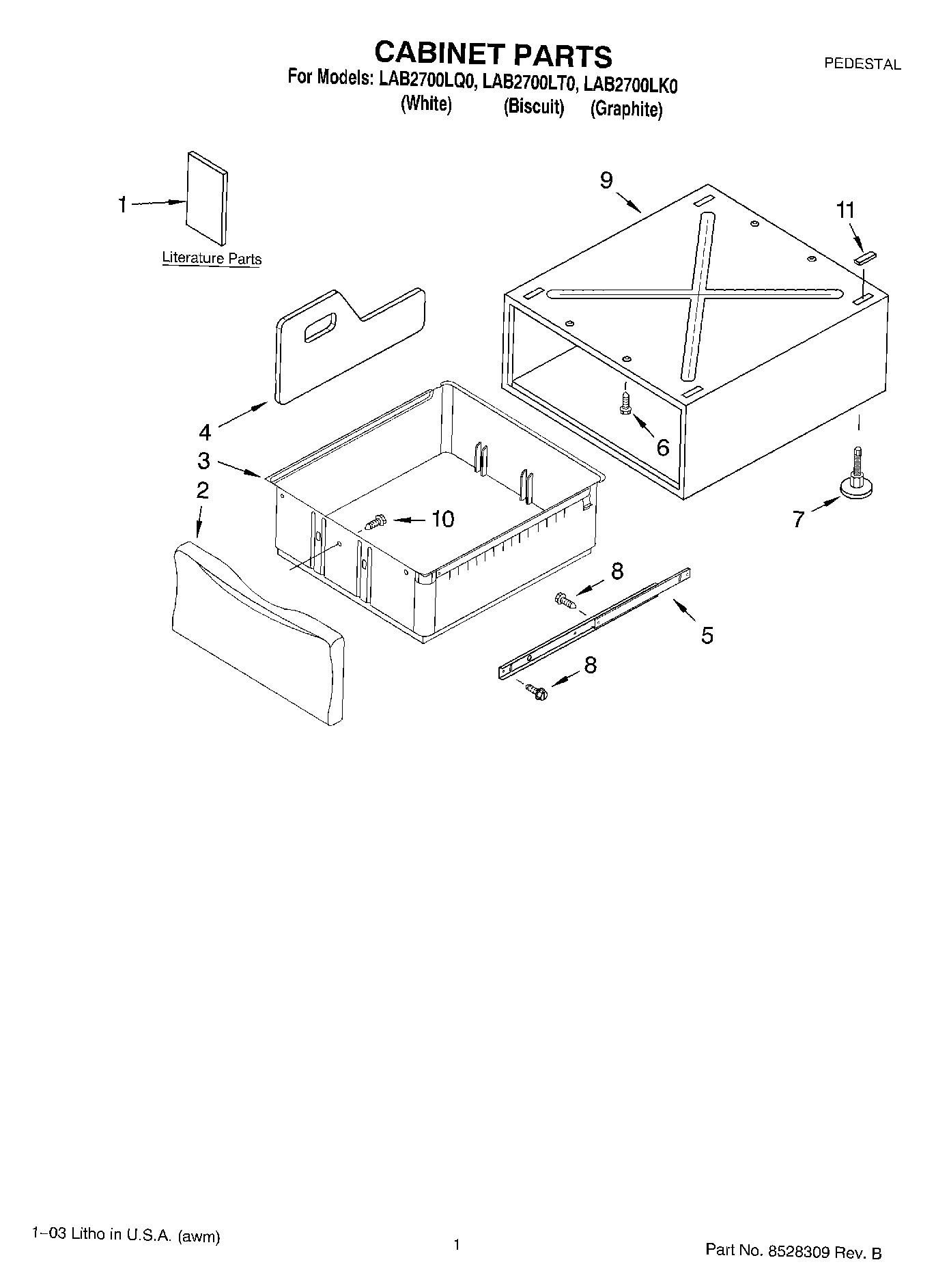

LAB2700LT0 01 – CABINET PARTS

LAB2700LT0 01 – CABINET PARTS

Written by

in

LAB2700LT0 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (Biscuit)
2Drawer Front Assembly (White)
3Drawer
4Divider, Drawer (Set Of 2)
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP694091 Whirlpool Screw
9Cabinet (Not Serviced)
10WP488729 Whirlpool Refrigerator Door Screw
11Pad (4)
1172017 Whirlpool Appliance Touch-Up Paint White
11PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
114392899 Whirlpool Biscuit Touch-Up Paint
11Optional Parts Not Included
