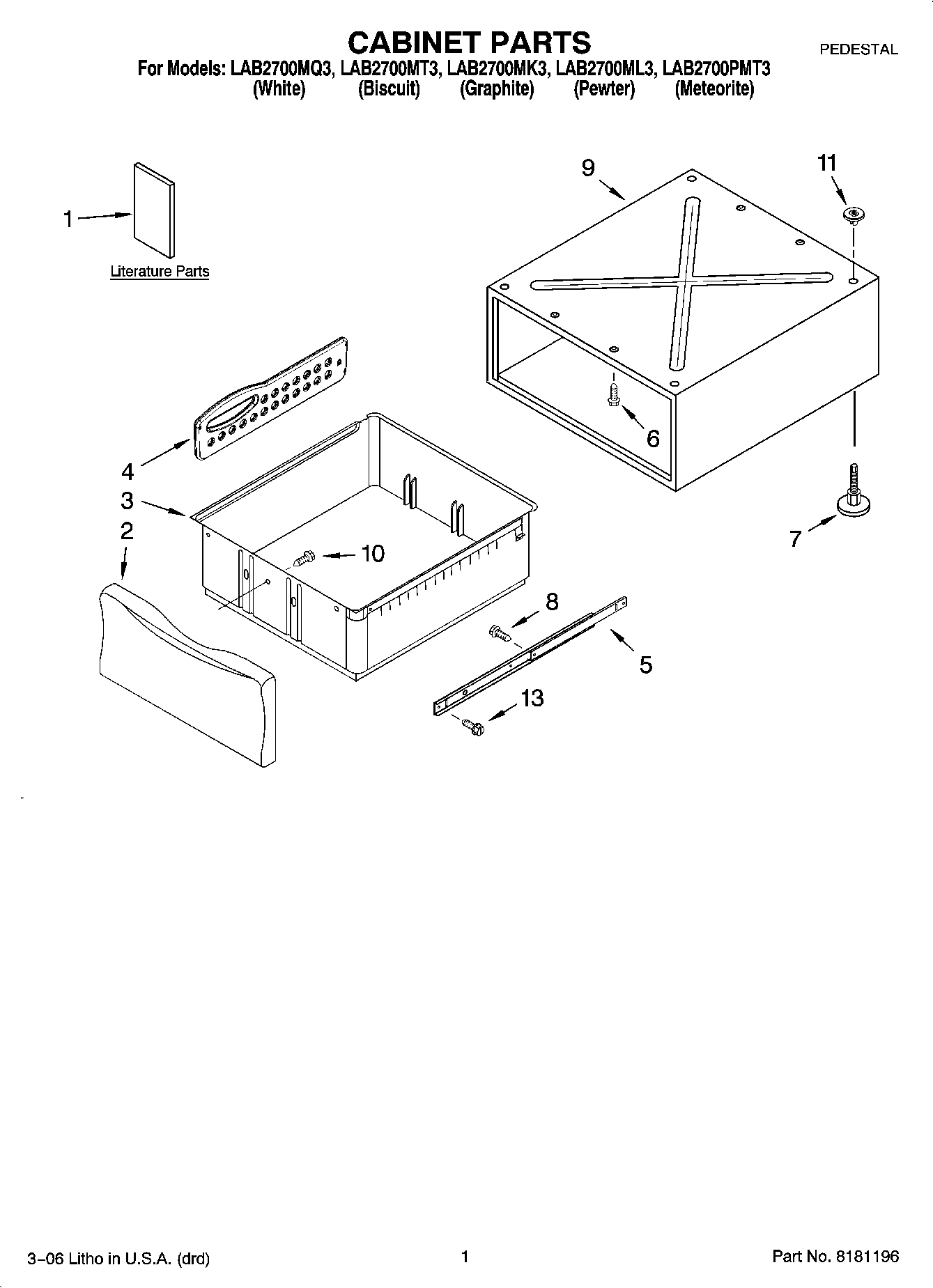

LAB2700MK3 01 – CABINET PARTS

LAB2700MK3 01 – CABINET PARTS

Written by

in

LAB2700MK3 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
2Drawer Front Assembly
2Drawer Front Assembly (Meteorite)
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (Biscuit)
2Drawer Front Assembly (Pewter)
3Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
3For LAB2700PMT
3LAB2700ML
4Divider, Drawer
4Divider, Drawer (Set Of 2) (For LAB2700PMT)
4LAB2700ML
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WPW10213953 Whirlpool Screw
11WP8537982 Whirlpool Pad
134392901 Whirlpool Biscuit Spray Paint
134392899 Whirlpool Biscuit Touch-Up Paint
1372017 Whirlpool Appliance Touch-Up Paint White
13350938 Whirlpool Spray Gun
138171357 Whirlpool Spray Nozzle
13PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
13W10202939 Whirlpool Touch Up
13PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
13WP4396174 Whirlpool Touch-Up Paint
13WP9740849 Whirlpool Screw
13350930 Whirlpool White Spray Paint
