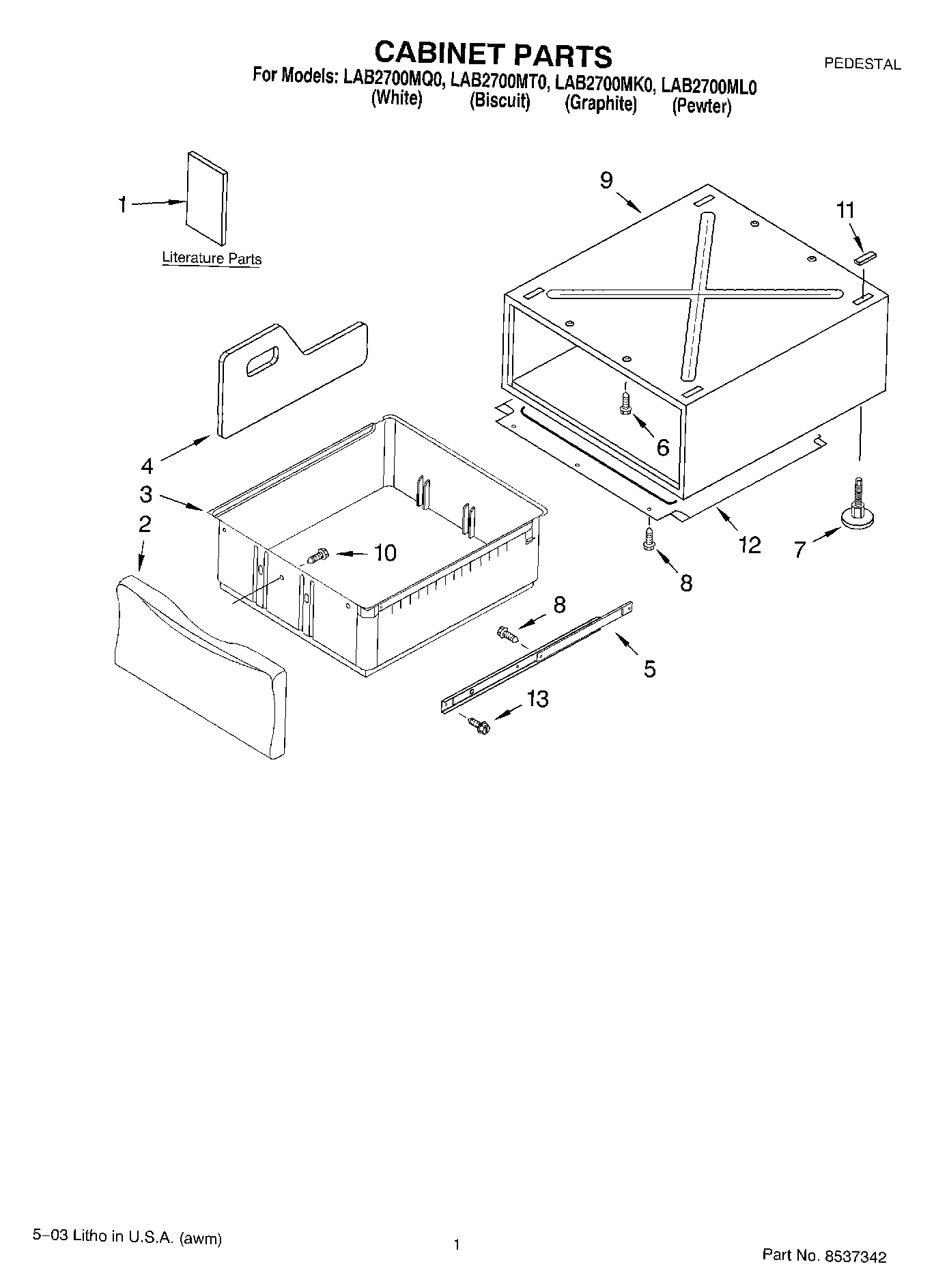

LAB2700ML0 01 – CABINET PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
W10202939 Whirlpool Touch Up
WP4396174 Whirlpool Touch-Up Paint
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
8171357 Whirlpool Spray Nozzle
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1Literature Parts (Parts List)
1Literature Parts (Installation Instructions)
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (Meteorite)
2Drawer Front Assembly (Pewter)
2Drawer Front Assembly (White)
2Drawer Front Assembly (Biscuit)
3For LAB2700PMT
3Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4For LAB2700PMT
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11Pad (4)
12Pan, Bottom
133400618 Whirlpool Screw
14WP90767 Whirlpool Screw
