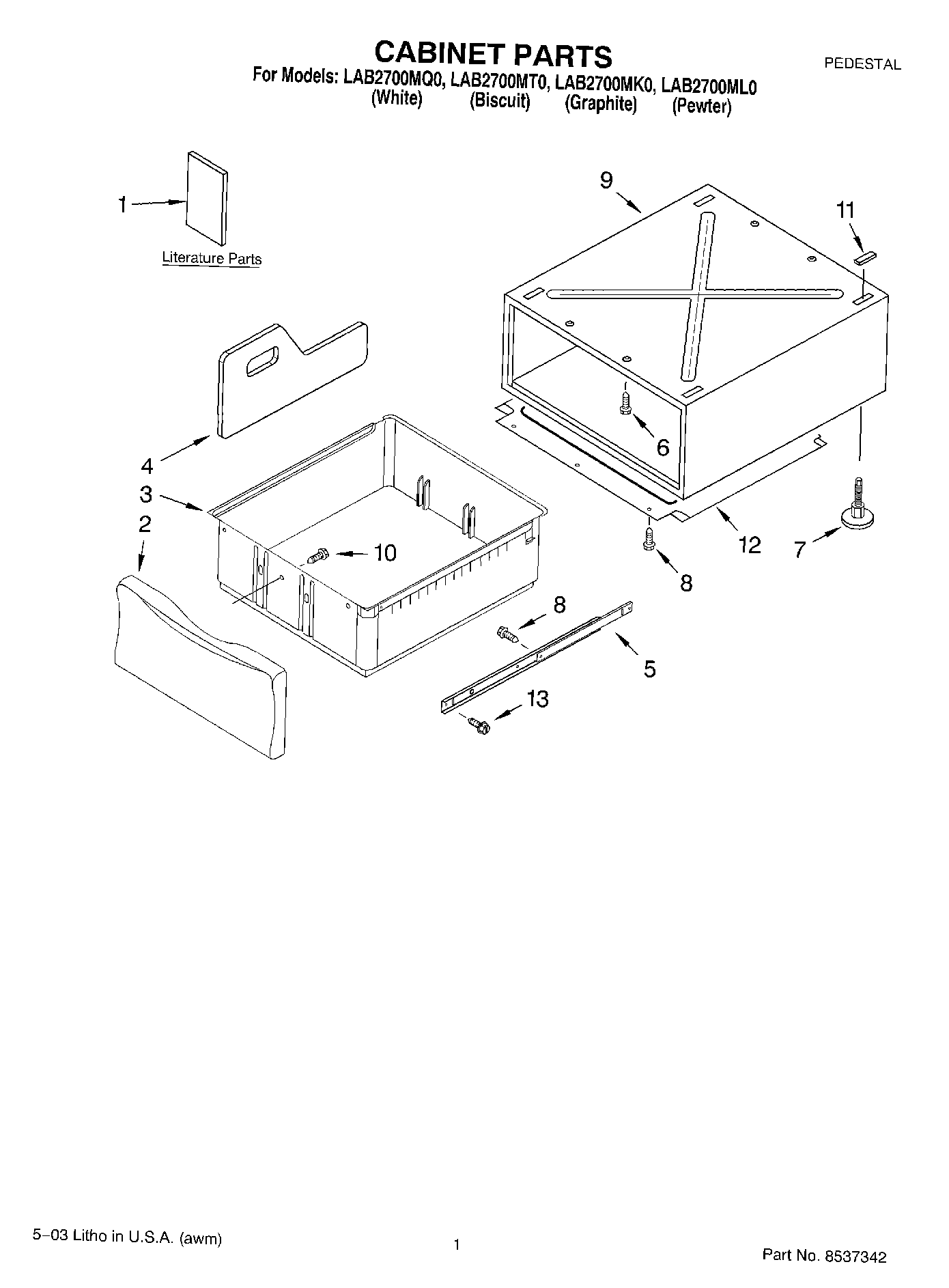

LAB2700MT0 01 – CABINET PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	W10202939 Whirlpool Touch Up
	WP4396174 Whirlpool Touch-Up Paint
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	8171357 Whirlpool Spray Nozzle
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Literature Parts (Parts List)
1	Literature Parts (Installation Instructions)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (Pewter)
2	Drawer Front Assembly (White)
2	Drawer Front Assembly (Biscuit)
3	For LAB2700PMT
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	For LAB2700PMT
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	Pan, Bottom
13	3400618 Whirlpool Screw
14	WP90767 Whirlpool Screw
