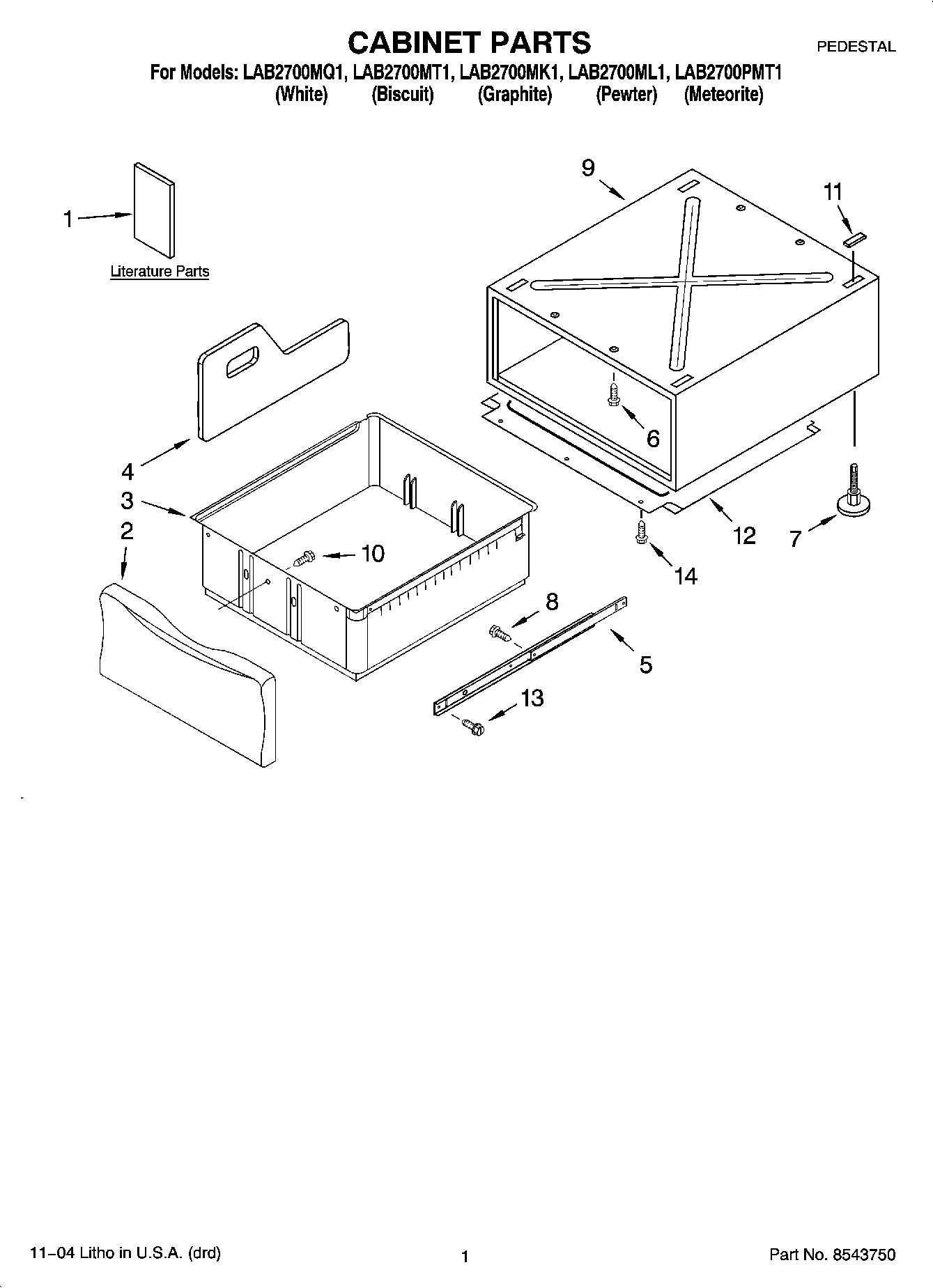

LAB2700MT1 01 – CABINET PARTS

Products

Position	Product
1	Parts List
1	Installation Instructions
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (Pewter)
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (White)
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
3	For LAB2700PMT
4	Divider, Drawer (Set Of 2)
4	Divider, Drawer (Set Of 2) (For LAB2700PMT)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	Pan, Bottom
13	WP9740848 Whirlpool Dishwasher Screw
14	350938 Whirlpool Spray Gun
14	72017 Whirlpool Appliance Touch-Up Paint White
14	WP90767 Whirlpool Screw
14	4392899 Whirlpool Biscuit Touch-Up Paint
14	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
14	WP4396174 Whirlpool Touch-Up Paint
14	4392901 Whirlpool Biscuit Spray Paint
14	8171357 Whirlpool Spray Nozzle
14	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
14	W10202939 Whirlpool Touch Up
14	350930 Whirlpool White Spray Paint
