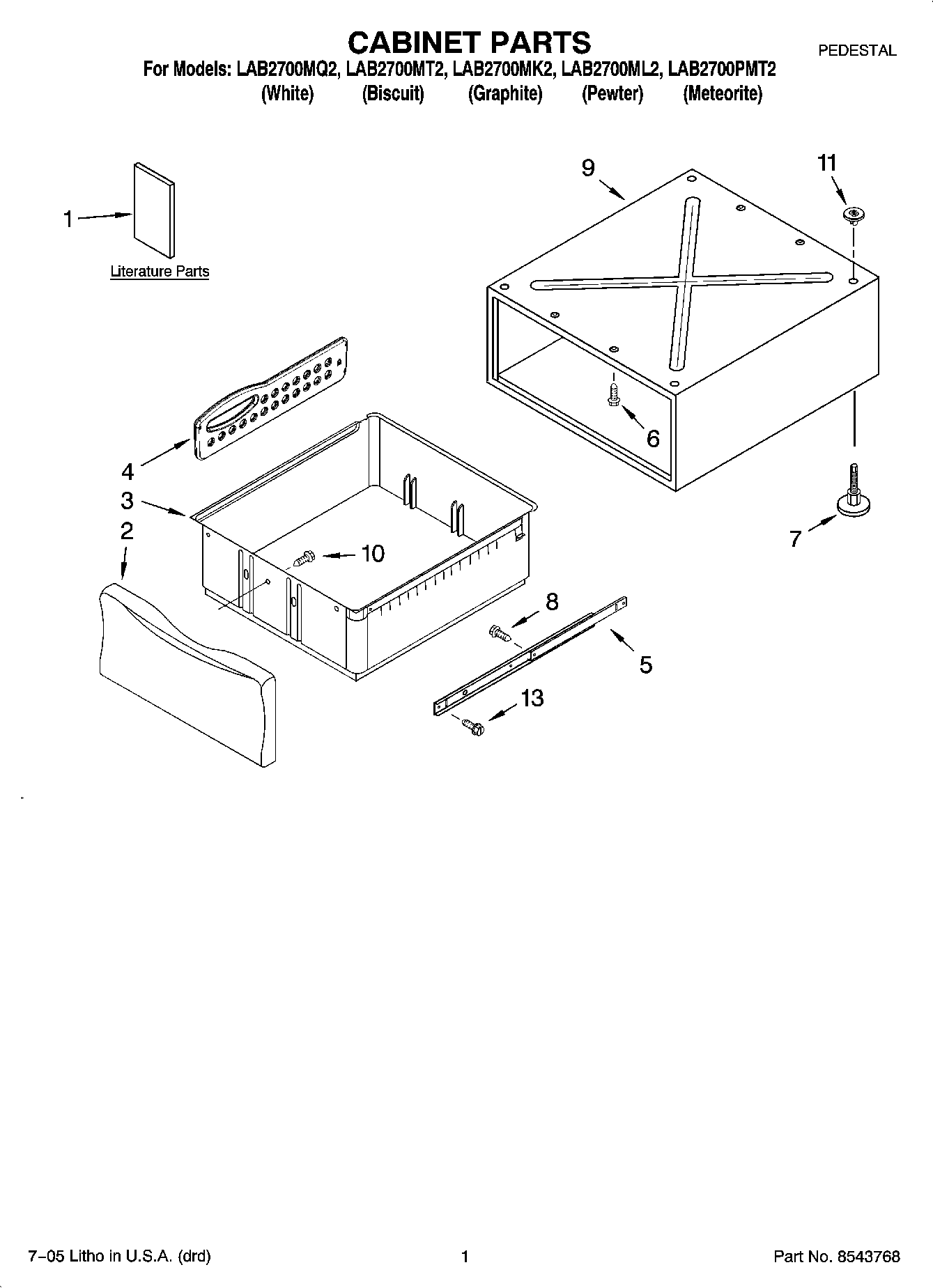

LAB2700PMT2 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Parts List (8)
2Drawer Front Assembly (Meteorite)
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (Biscuit)
2Drawer Front Assembly (Pewter)
2Drawer Front Assembly
3Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
3For LAB2700PMT
4Divider, Drawer
4Divider, Drawer (Set Of 2) (For LAB2700PMT)
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11WP8537982 Whirlpool Pad
13350938 Whirlpool Spray Gun
1372017 Whirlpool Appliance Touch-Up Paint White
134392899 Whirlpool Biscuit Touch-Up Paint
134392901 Whirlpool Biscuit Spray Paint
138171357 Whirlpool Spray Nozzle
13PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
13PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
13WP4396174 Whirlpool Touch-Up Paint
13WP9740849 Whirlpool Screw
13W10202939 Whirlpool Touch Up
13350930 Whirlpool White Spray Paint
