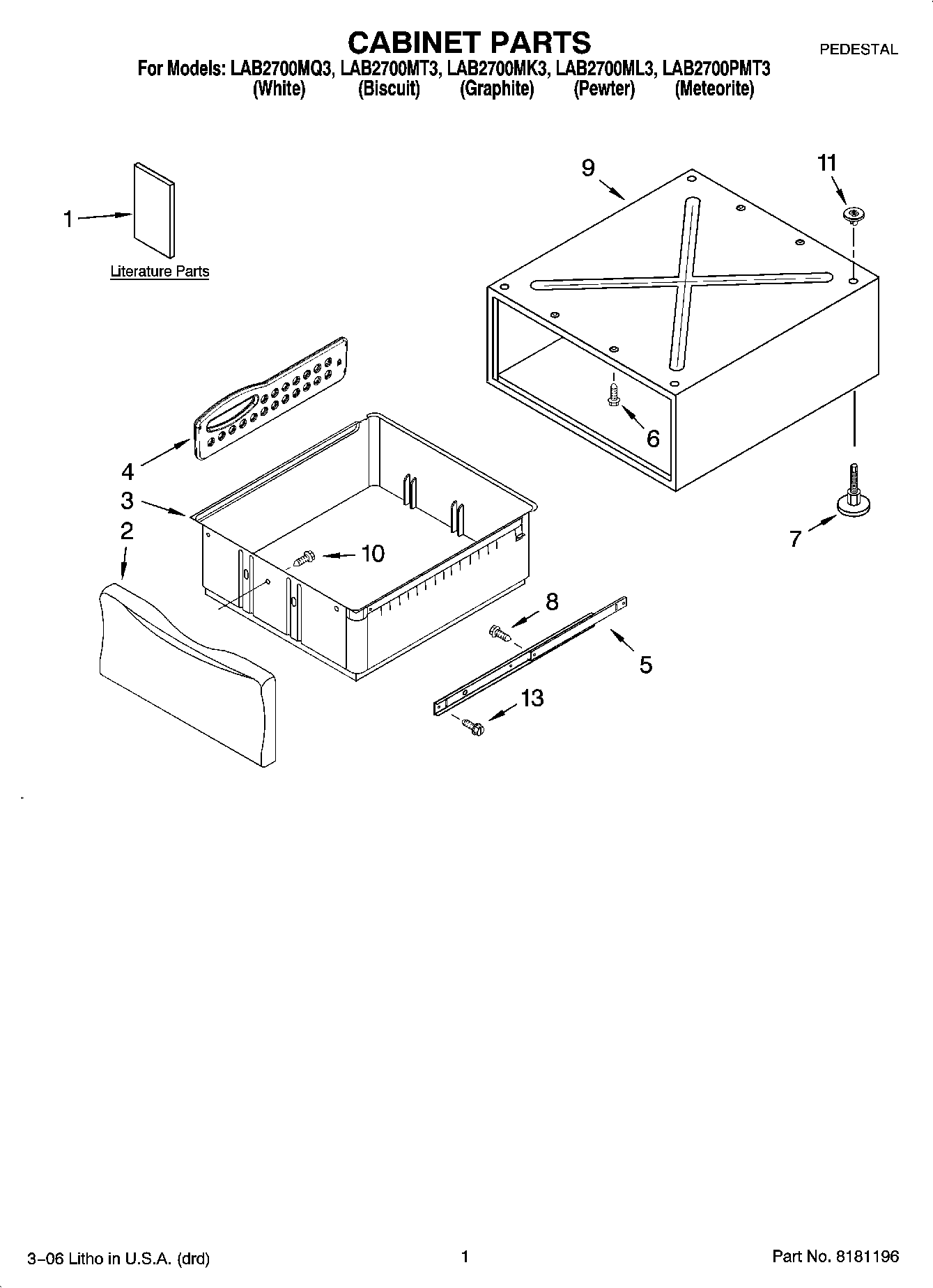

LAB2700PMT3 01 – CABINET PARTS

Products

Position	Product
1	Installation Instructions
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly
2	Drawer Front Assembly (Pewter)
3	For LAB2700PMT
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
3	LAB2700ML
4	Divider, Drawer
4	LAB2700ML
4	Divider, Drawer (Set Of 2) (For LAB2700PMT)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WPW10213953 Whirlpool Screw
11	WP8537982 Whirlpool Pad
13	72017 Whirlpool Appliance Touch-Up Paint White
13	4392899 Whirlpool Biscuit Touch-Up Paint
13	4392901 Whirlpool Biscuit Spray Paint
13	350938 Whirlpool Spray Gun
13	8171357 Whirlpool Spray Nozzle
13	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
13	W10202939 Whirlpool Touch Up
13	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
13	WP4396174 Whirlpool Touch-Up Paint
13	WP9740849 Whirlpool Screw
13	350930 Whirlpool White Spray Paint
