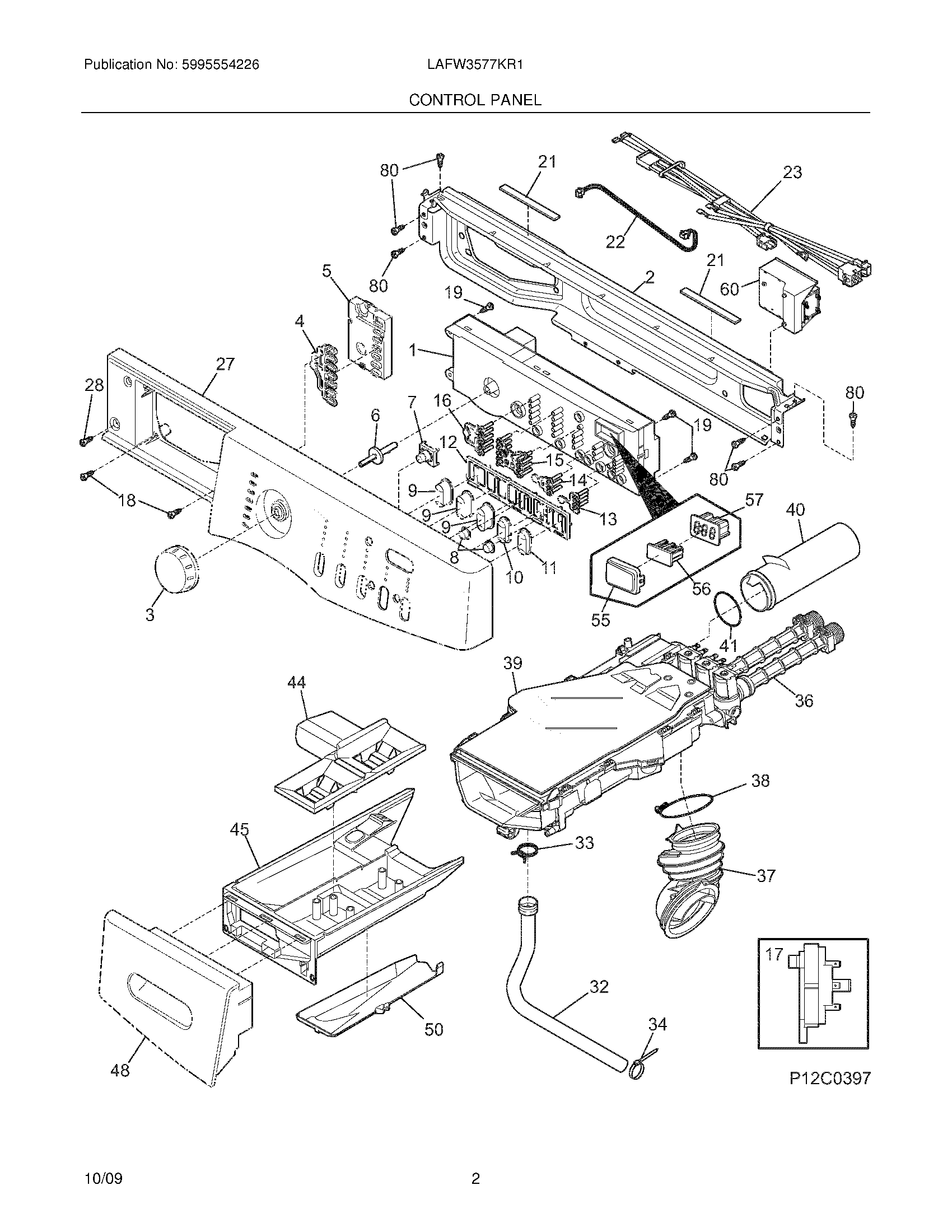

LAFW3577KR1 03 – CONTROL PANEL

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	134371300 DISPENSER TO VALVE GASKET
NI	WCI 134887800
NI	WCI 134555800
NI	WCI 137215000
1	137007010 Frigidaire Control Board
2	WCI 134364800
3	WCI 134551225
4	WCI 134553100
5	134556500NH Frigidaire UIB
6	WCI 134347700
7	WCI 134891500
8	WCI 134555525
9	WCI 134553425
10	WCI 134555440
11	WCI 134864400
12	WCI 134884900
13	WCI 134557500
14	WCI 134557400
15	WCI 134552800
16	WCI 134600000
17	134762000 Frigidaire Pressure Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
21	134407900 Frigidaire Dampener
22	WCI 134602100
23	WCI 134739500
27	WCI 137167240
28	131205300 Frigidaire Screw
32	WCI 134586500
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	134371220 Frigidaire Dispenser Fill Valve
37	134372300 Frigidaire Hose
38	134372400 Frigidaire Clamp
40	WCI 134372100
41	134372200 Frigidaire O-Ring
44	134370200 Frigidaire Washer Dispenser Drawer Cover
45	134370000 Frigidaire Washer Detergent Dispenser Drawer
48	WCI 137168040
50	134409320 Frigidaire Dispenser Assembly
55	WCI 134553200
56	WCI 134557300
57	WCI 134503300
60	134558200 Frigidaire Control
80	131168200 Frigidaire Dryer Screw
