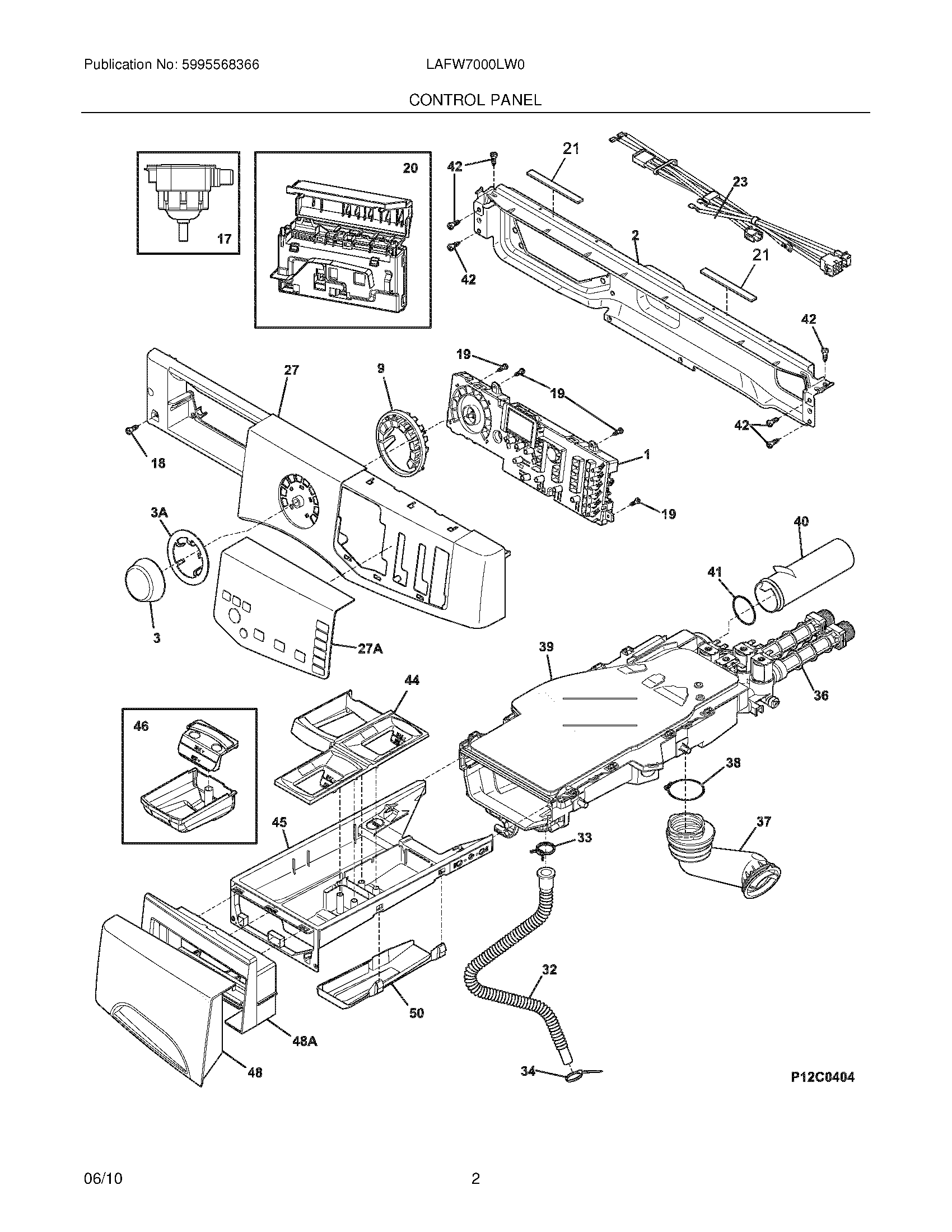

LAFW7000LW0 03 – CONTROL PANEL

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	134371300 DISPENSER TO VALVE GASKET
1	WCI 137260830
2	134887400 Frigidaire Bracket
3A	WCI 137296900
3	WCI 137286500
9	WCI 137286600
17	134762010 Frigidaire Washer Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
20	134958213 Frigidaire Control Board
21	134407900 Frigidaire Dampener
23	WCI 137288700
27	WCI 137316810
27A	WCI 137355610
32	WCI 134586500
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	WATER VALVE W/O THERMISTER
37	134372300 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	WCI 134964010
40	WCI 134372100
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
44	WCI 134638310
45	WCI 134638200
46	137143800 Frigidaire Cup
48	WCI 137288210
48A	WCI 137286000
50	WCI 134638400
