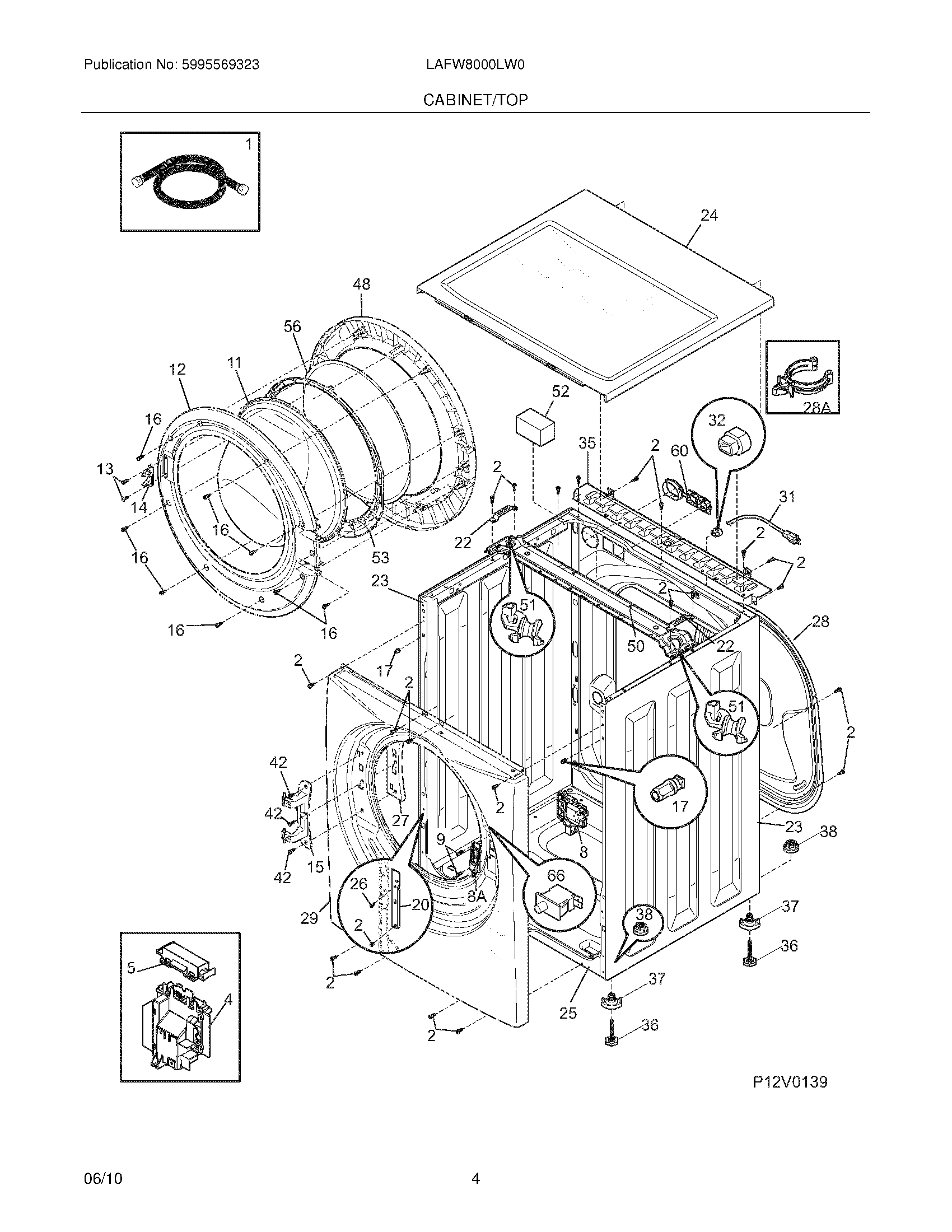

LAFW8000LW0 05 – CABINET/TOP

Products

Position	Product
NI	134629400 Frigidaire Screw
NI	WCI 134649400
NI	WCI 137247900
NI	134926600 Frigidaire Damper
NI	WCI 137021600
NI	134591500 Frigidaire Transport Plug Kit
NI	WCI 137021610
1	5303912532 Frigidaire Hose Inlet 60"
2	131168200 Frigidaire Dryer Screw
4	134618213 Frigidaire Washer Control Board
5	134649700 Frigidaire Cover
8A	137279900 Frigidaire Vent
8	DOOR LOCK/SWITCH ASSY
9	131302800 Frigidaire Drum Vane Screw
11	134366400 Frigidaire Panel
12	137280302 Frigidaire Outer Door Frame
13	131302901 Frigidaire Screw
14	131763302 Frigidaire Washer Door Strike
15	WCI 134550800
16	131205300 Frigidaire Screw
17	134638700 Frigidaire Clip
22	134648500 Frigidaire Spring Bracket
23	WCI 134958010
24	134638510 Frigidaire Washer Dryer Top Panel
25	WCI 134646000
26	134813600 Frigidaire Dryer Door Switch
27	134550900 Frigidaire Hinge Bracket
28	BACK PANEL SERVICE,service
28A	134876501 Frigidaire Clip
29	WCI 137021810
31	137011400 Frigidaire Power Cord
32	5303209428 Frigidaire Serv.Cord Bushing
35	WCI 134713100
36	134639100 Frigidaire Leveling Leg
37	134617600 Frigidaire Bushing
38	134639200 Frigidaire Nut
42	137380600 Frigidaire Screw - M5 x 0.8
48	5304506743 Frigidaire Outer Door Panel - Titanium
50	WCI 134645600
51	134655800 Frigidaire Protector
52	131931202 Frigidaire Dampener
53	137266700 Frigidaire Ring
56	137578120 Frigidaire Glass
60	134372000 Frigidaire Grommet
