LAT2600AAE 02 – CABINET

LAT2600AAE 02 – CABINET

Written by

in

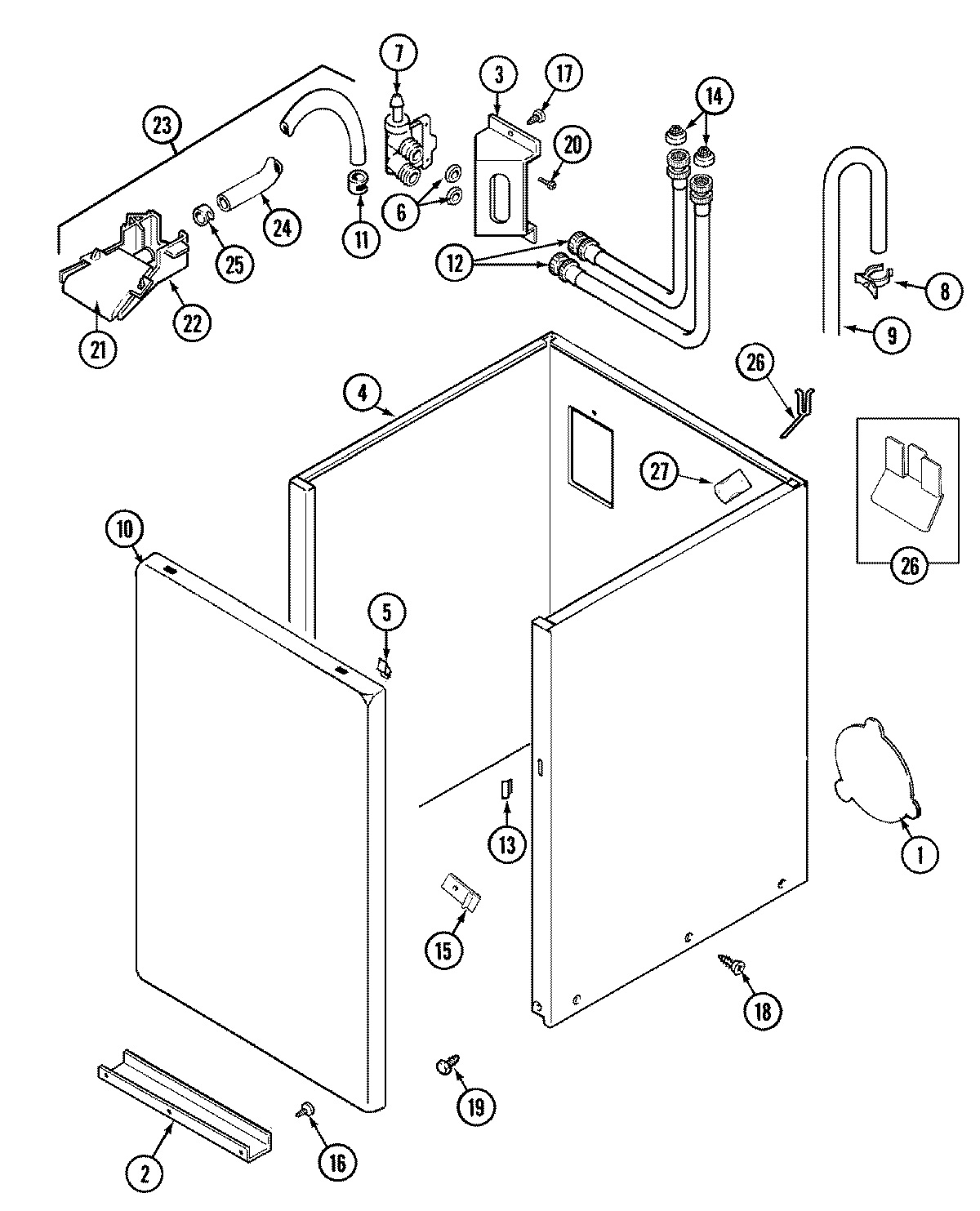

LAT2600AAE 02 – CABINET

Products

PositionProduct
1MAY 22002924
2MAY 213846
3MAY 22002361
4MAY 22002379
5WP22001650 Whirlpool Spring Clip
6MAY Y013783
7WP22002360 Whirlpool Water Valve
7WP96160 Whirlpool Washer Inlet Valve Screen
8WP22002765 Whirlpool Hose Clip
9WP22003410 Whirlpool Drain Hose
10MAY 22002366
10WP22001817 Whirlpool Sheet
12MAY 35-0874
12FILL HOSE 5' W/WASHER
14MAY 200961
15WP489128 Whirlpool Refrigerator Screw
15MAY 22002376
16WP90767 Whirlpool Screw
17MAY 22002372
18213007 Whirlpool Screw #12
19MAY 22002378
20MAY Y313561
21MAY 22001187
22MAY 22002310
23WP22001304 Whirlpool Injector Assembly
24MAY 22001190
25WP596669 Whirlpool Hose Clamp
26MAY 22001972
27MAY 22002377
