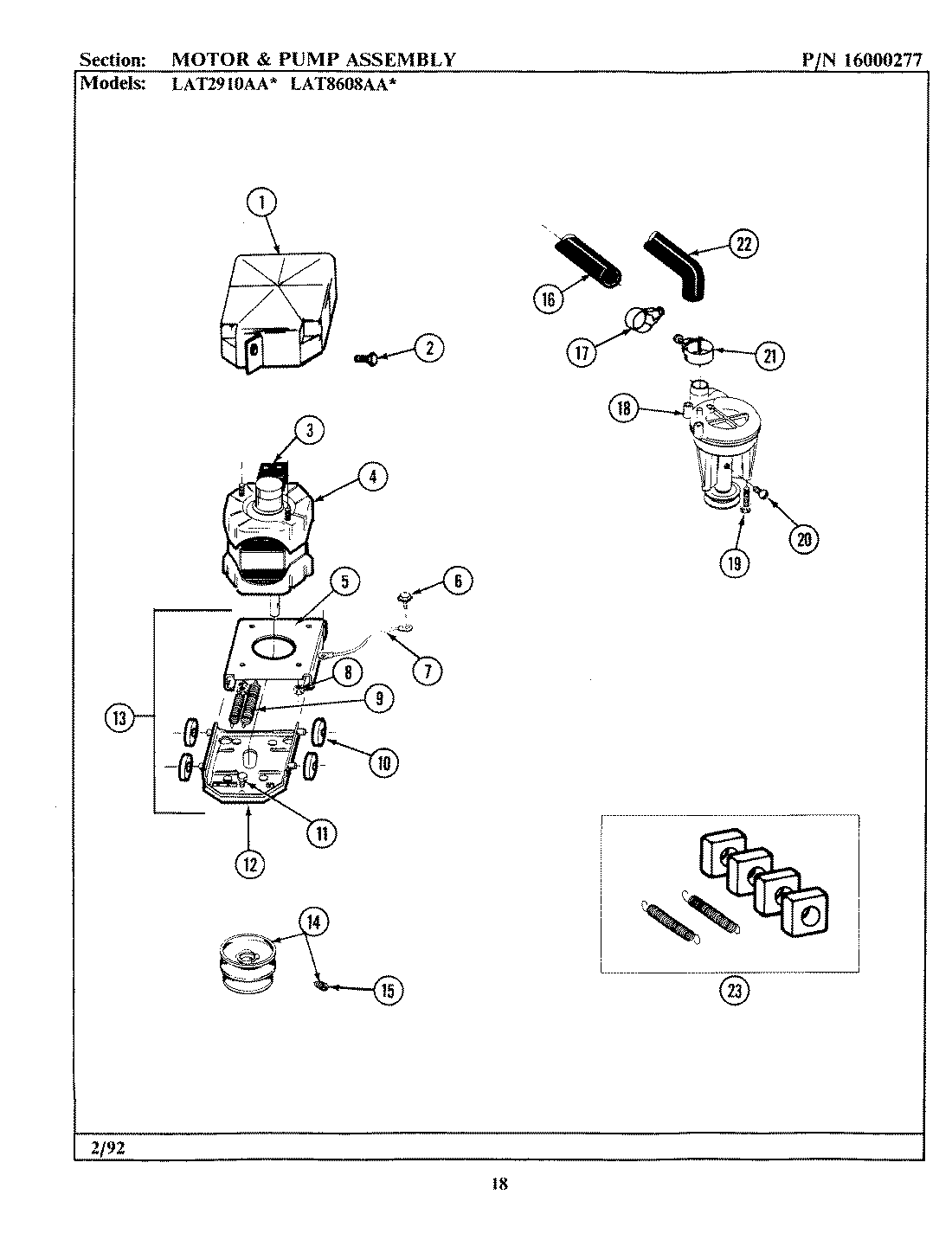

LAT2910AAL 05 – MOTOR & PUMP ASSEMBLY

Products

Position	Product
1	MAY 215098
2	WPW10346892 Whirlpool Screw
3	2-1664-11 AND 2-5463-1
3	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
3	2-1664-8 AND 2-5463
4	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
5	MAY 214956
6	MAY 210186
7	MAY 901220
8	WP3400029 Whirlpool Dishwasher Nut
9	202718 Whirlpool Tension Spring
10	205000 Whirlpool Motor Spring and Guide Kit
11	MAY Y313561
12	MAY 205908
13	MAY 205999
14	MAY 200816
15	MAY Y053241
16	MAY 214767
17	MAY 200461
18	MAY 202203
19	WPY014874 Whirlpool Screw
20	MAY Y015408
21	WP285655 Whirlpool Hose Clamp
22	WPY212989 Whirlpool Outer Hose
