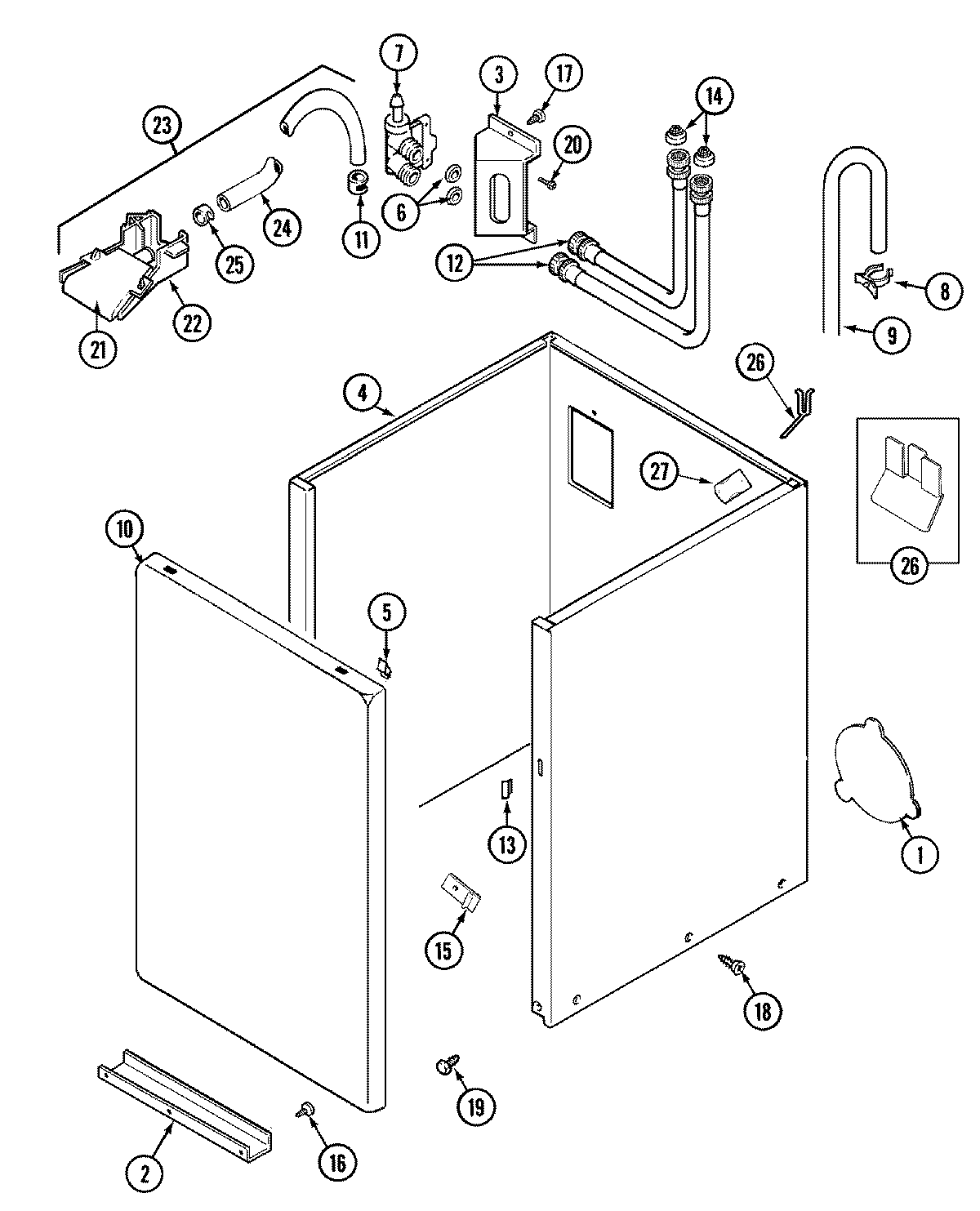

LAT3500AAQ 02 – CABINET

Products

PositionProduct
1MAY 22002924
1MAY 211878
3MAY 22002361
3MAY 22003217
4MAY 22002657
5WP22001650 Whirlpool Spring Clip
6MAY Y013783
7WP22002360 Whirlpool Water Valve
7WP96160 Whirlpool Washer Inlet Valve Screen
9WP22003410 Whirlpool Drain Hose
10WP22001817 Whirlpool Sheet
10MAY 22002658
11WP596669 Whirlpool Hose Clamp
12FILL HOSE 5' W/WASHER
12MAY 35-3401
13MAY 214376
14MAY 200961
15MAY 22002376
15W11573574 Whirlpool Screw
16WP90767 Whirlpool Screw
17MAY 22002372
18213007 Whirlpool Screw #12
19MAY 22002378
20MAY Y313561
21MAY 22001187
22WP22001186 Whirlpool Injector
23WP22001304 Whirlpool Injector Assembly
24MAY 22001190
26MAY 22001972
27MAY 22002377
