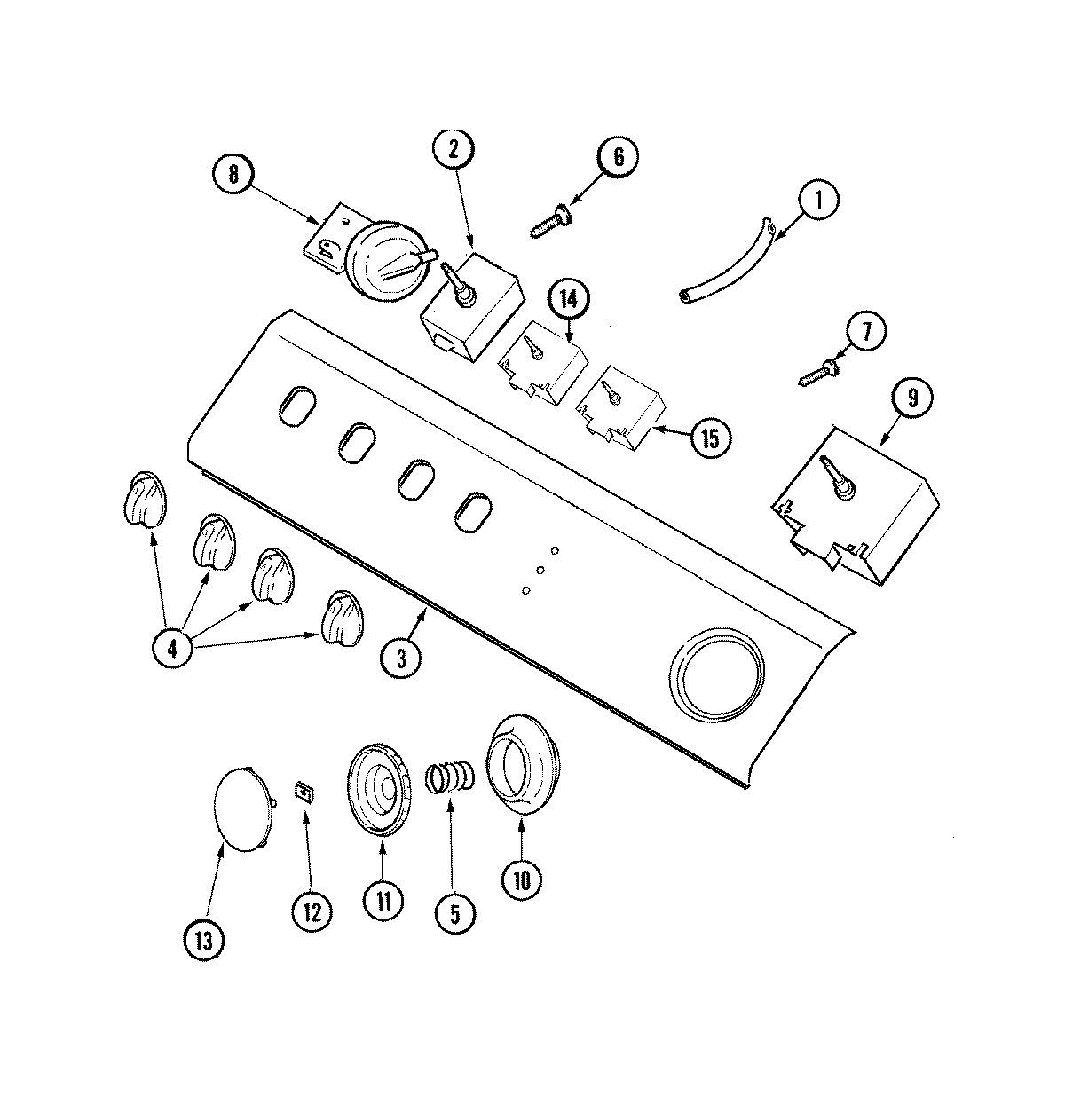

LAT3600AAQ 04 – CONTROL PANEL

LAT3600AAQ 04 – CONTROL PANEL

Written by

in

LAT3600AAQ 04 – CONTROL PANEL

Products

PositionProduct
1WP22001619 Whirlpool Washer Water Level Pressure Switch Hose
2MAY 22001825
3MAY 22003918
4MAY 22003919
5WP211065 Whirlpool Timer Spring
68534058 Whirlpool Refrigerator Screw
7WP3400094 Whirlpool Screw
8WP22001776 Whirlpool Infinite Switch
9WP22004262 Whirlpool Timer
10MAY 22003920
11MAY 22003915
12MAY 211605
13WP22001664 Whirlpool Timer Knob
14MAY 22001794
15MAY 22002578
