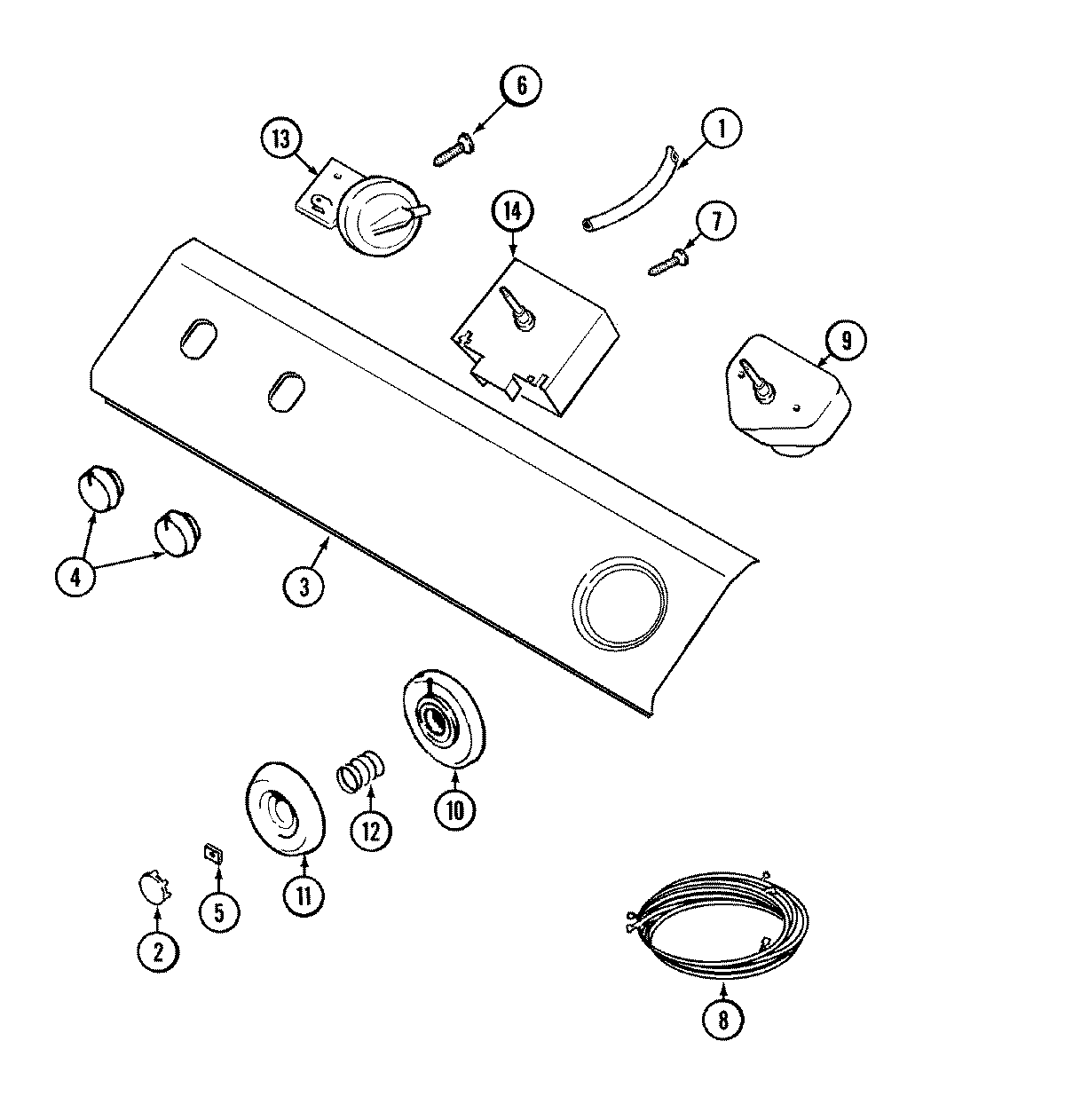

LAT5006AAE 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2WP22001664 Whirlpool Timer Knob
3MAY 22001728
4WP22001663 Whirlpool Selector Knob
5MAY 211605
68534058 Whirlpool Refrigerator Screw
7WP3400094 Whirlpool Screw
8MAY 22002204
8MAY 22001653
9WP22002180 Whirlpool Timer Assembly
9WP22001651 Whirlpool Timer
10MAY 22001660
11WP22001659 Whirlpool Timer Knob
12WP211065 Whirlpool Timer Spring
13MAY 22001827
14MAY 22001655
15MAY 22001768
15MAY 22001828
