LAT7304AGE 01 – BASE
Written by
in

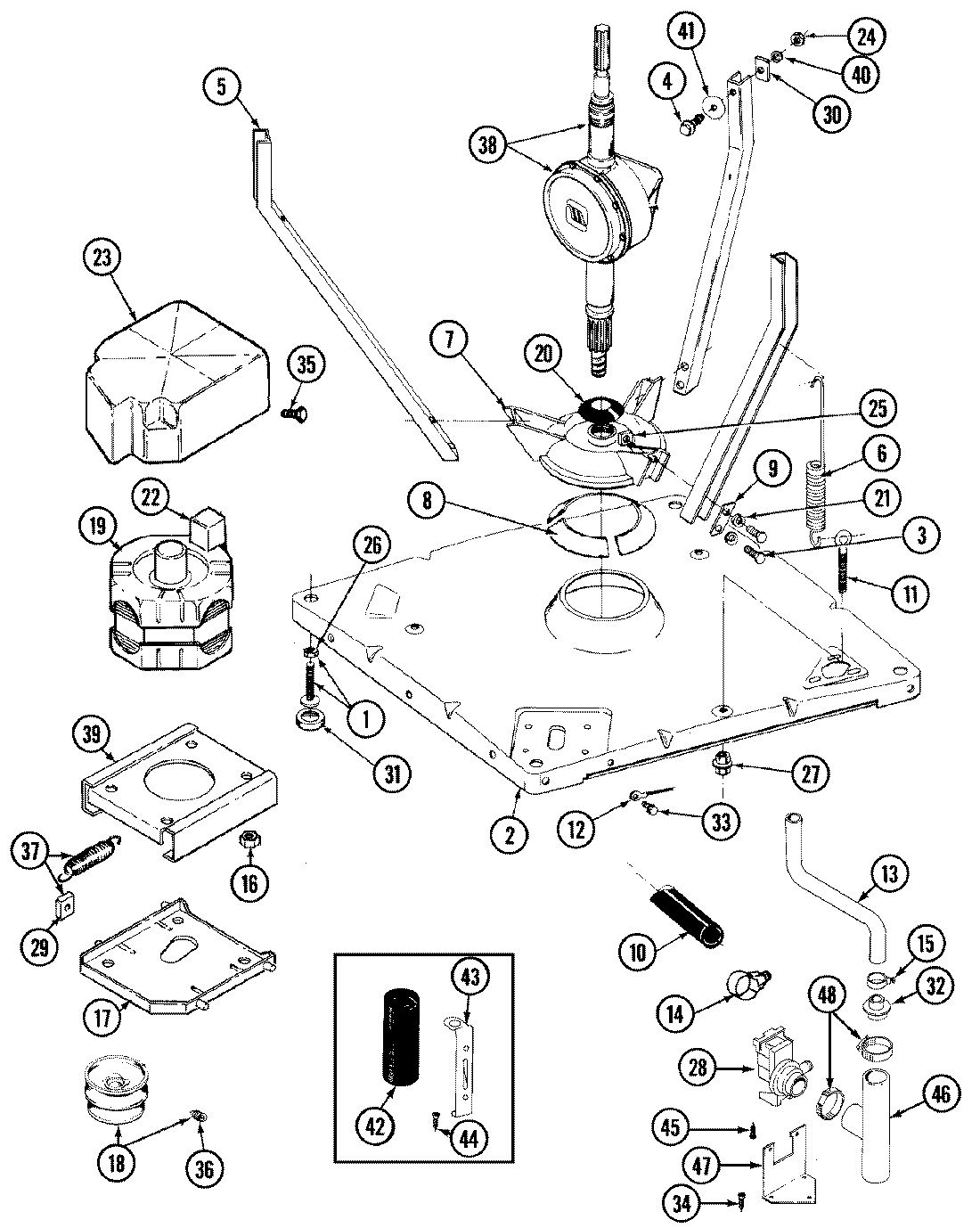

LAT7304AGE 01 – BASE
Products
Position
Product
1
LEG, ADJUSTABLE (W/NUT)—S
2
MAY 22001172
4
W10175939 Whirlpool Bolt Assembly
4
W10175938 Whirlpool Bolt
5
MAY 213100
6
MAY 22001300
7
MAY 203725
8
203956 Whirlpool Damper Pads 3 Pack with Poly
9
MAY 213073
10
MAY 214767
11
W11129403 Whirlpool Bolt
12
MAY 901220
13
MAY 22001280
15
WP285655 Whirlpool Hose Clamp
16
WP3400029 Whirlpool Dishwasher Nut
17
MAY 22001301
18
MAY Y202496
19
MAY 202157
20
MAY 211028
21
MAY 911852
22
SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
23
MAY 215098
24
MAY Y052734
25
MAY Y052785
26
WP210385 Whirlpool Lock Nut
27
WP211949 Whirlpool Nut
28
MAY 22001373
29
205000 Whirlpool Motor Spring and Guide Kit
30
MAY 212979
31
WP210684 Whirlpool Dishwasher Leveling Leg Pad
32
MAY 22001374
33
MAY 912365
34
MAY Y313561
35
WPW10346892 Whirlpool Screw
36
MAY 22001353
37
MAY 22001442
38
MAY 206708
39
MAY 214956
40
MAY Y054867
41
MAY 211100
42
MAY 201101
43
MAY 211149
44
WP90767 Whirlpool Screw
45
MAY 22001359
46
MAY 22001079
47
MAY 22001375
48
MAY 22001376
←
