LAT7314AAE 04 – CONTROL PANEL – Aparts

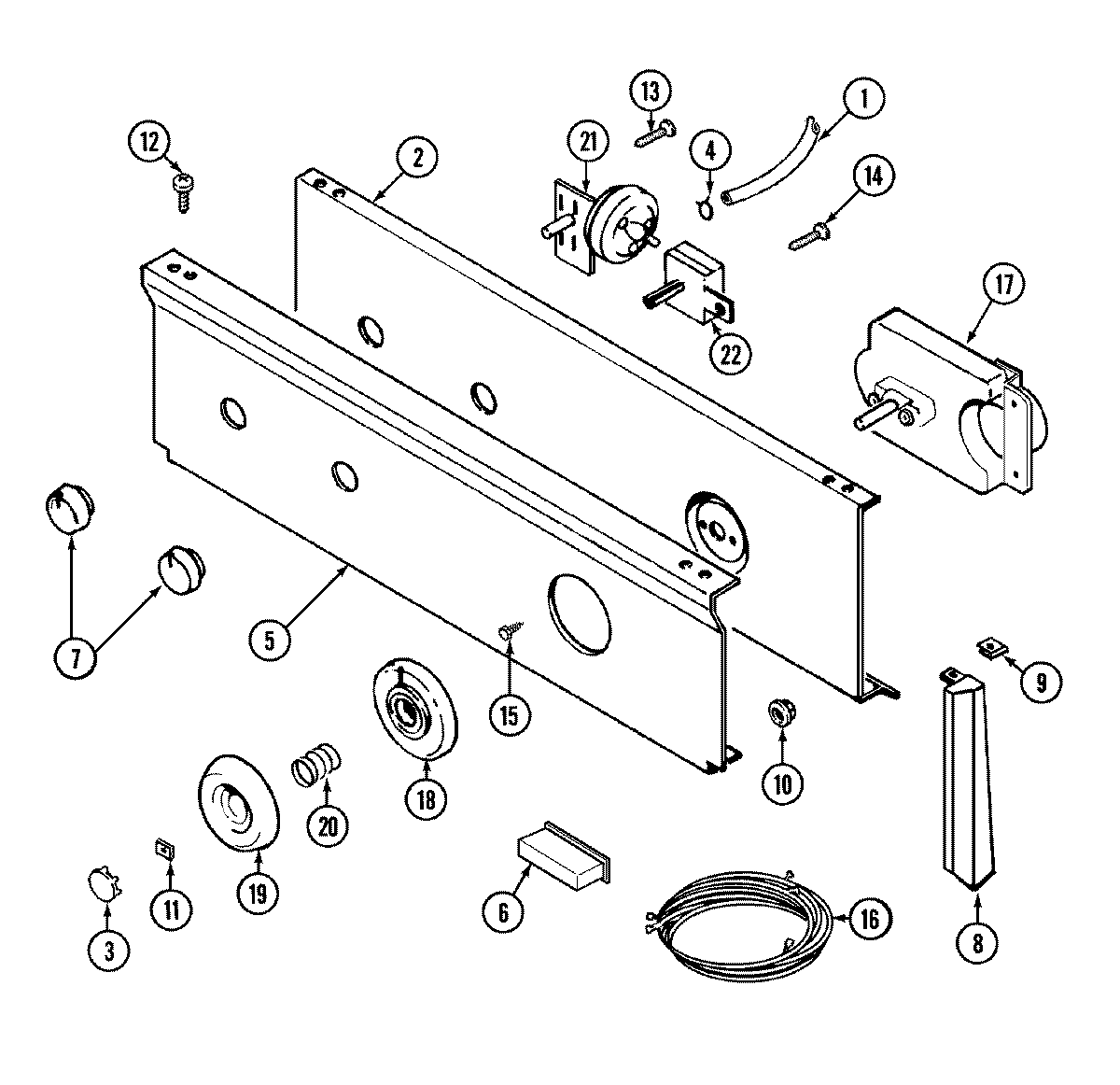

LAT7314AAE 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	MAY 22001132
2	MAY 204807
2	MAY 315483
3	MAY 216250
4	WP596669 Whirlpool Hose Clamp
5	MAY 22001242
6	MAY 214897
7	MAY 22001268
8	MAY 22001289
8	MAY 22001291
9	MAY 214894
10	MAY 214872
11	MAY 211605
12	MAY 210932
14	WPW10139210 Whirlpool Screw
15	MAY 216412
16	MAY 22001316
17	WP22001255 Whirlpool Timer
18	MAY 22001265
19	MAY 22001198
20	WP211065 Whirlpool Timer Spring
21	MAY 208203
22	MAY 208283
23	MAY 16000327
23	MAY 22001105
