LAT7334AAM 04 – CONTROL PANEL – Aparts

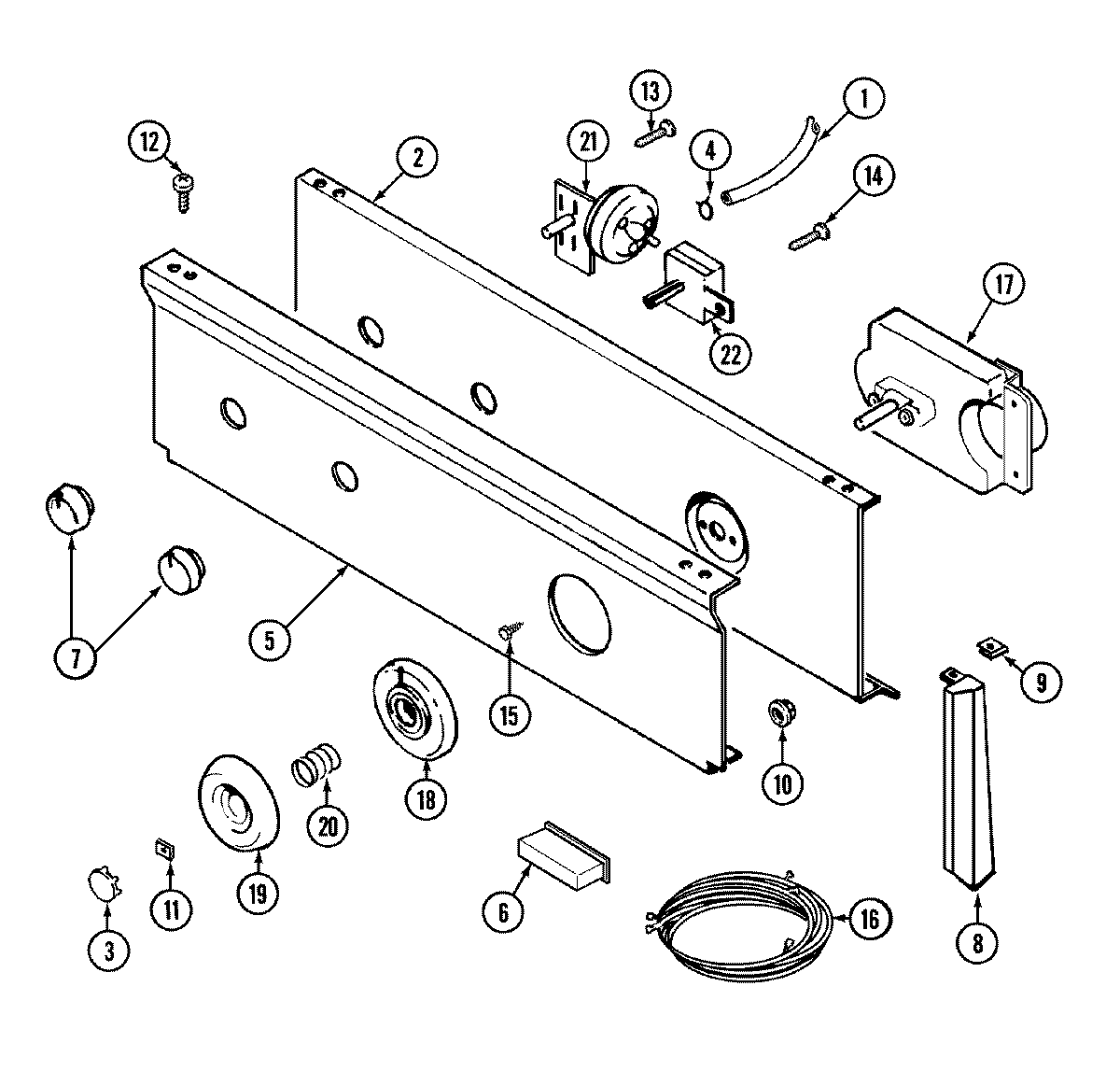

LAT7334AAM 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	MAY 22001132
2	MAY 315483
2	MAY 204807
3	MAY 216424
4	WP596669 Whirlpool Hose Clamp
5	MAY 22001492
6	MAY 214897
7	MAY 22001269
8	MAY 22001292
8	MAY 22001293
9	MAY 214894
10	MAY 214872
11	MAY 211605
12	MAY 210932
14	WPW10139210 Whirlpool Screw
15	MAY 216412
16	MAY 22001316
17	WP22001025 Whirlpool Timer
18	MAY 22001266
19	MAY 22001199
20	WP211065 Whirlpool Timer Spring
21	MAY 208206
22	MAY 208283
