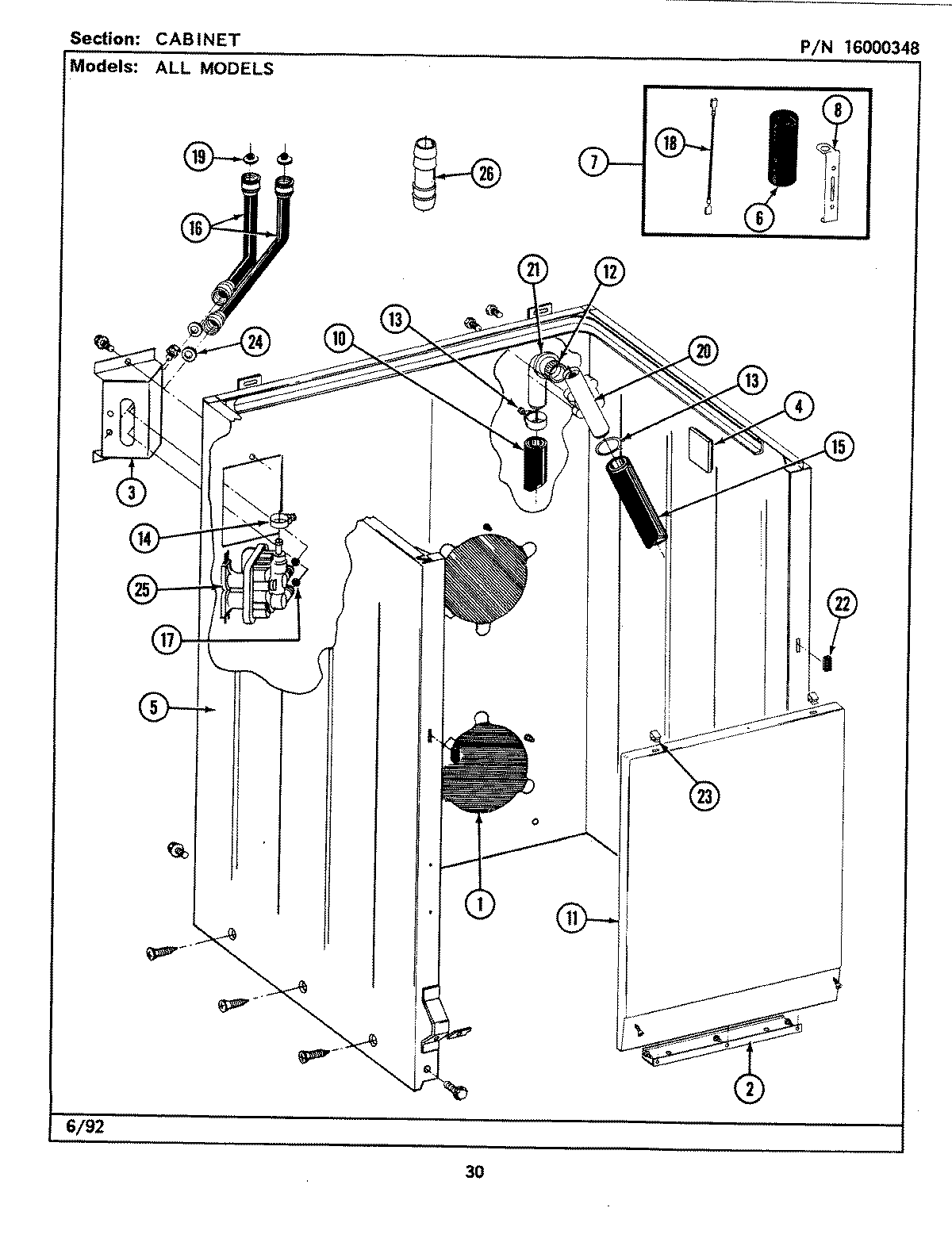

LAT7500ABL 02 – CABINET
Written by
in
LAT7500ABL 02 – CABINET
Products
Position
Product
1
MAY 211878
2
WP90767 Whirlpool Screw
2
MAY 213846
3
MAY 214812
4
MAY 215058
5
213007 Whirlpool Screw #12
5
MAY 203319L
5
SCREW & FSTNER ASSY (FT. PNL)
5
WP27001200 Whirlpool Screw
5
WPW10346892 Whirlpool Screw
6
MAY Y200832
7
MAY 206103
8
MAY 211149
9
MAY 202861
10
MAY 216017
10
MAY Y059149
11
MAY 212998L
12
WP214765 Whirlpool Gasket
13
MAY 200908
14
WP596669 Whirlpool Hose Clamp
15
MAY 214767
16
WP76314 Whirlpool Fill Hose
16
202860 Whirlpool Inlet Hose 5 FT
17
WP96160 Whirlpool Washer Inlet Valve Screen
18
MAY 203237
19
MAY 200961
20
WPY014874 Whirlpool Screw
20
206638 Whirlpool Break Siphon Connector Kit
21
WPW10116738 Whirlpool Elbow Connector
22
MAY 214376
23
MAY 212982
24
MAY Y013783
25
MAY 212276
25
205613 Whirlpool Washer Water Inlet Valve
26
MAY Y216015
←
