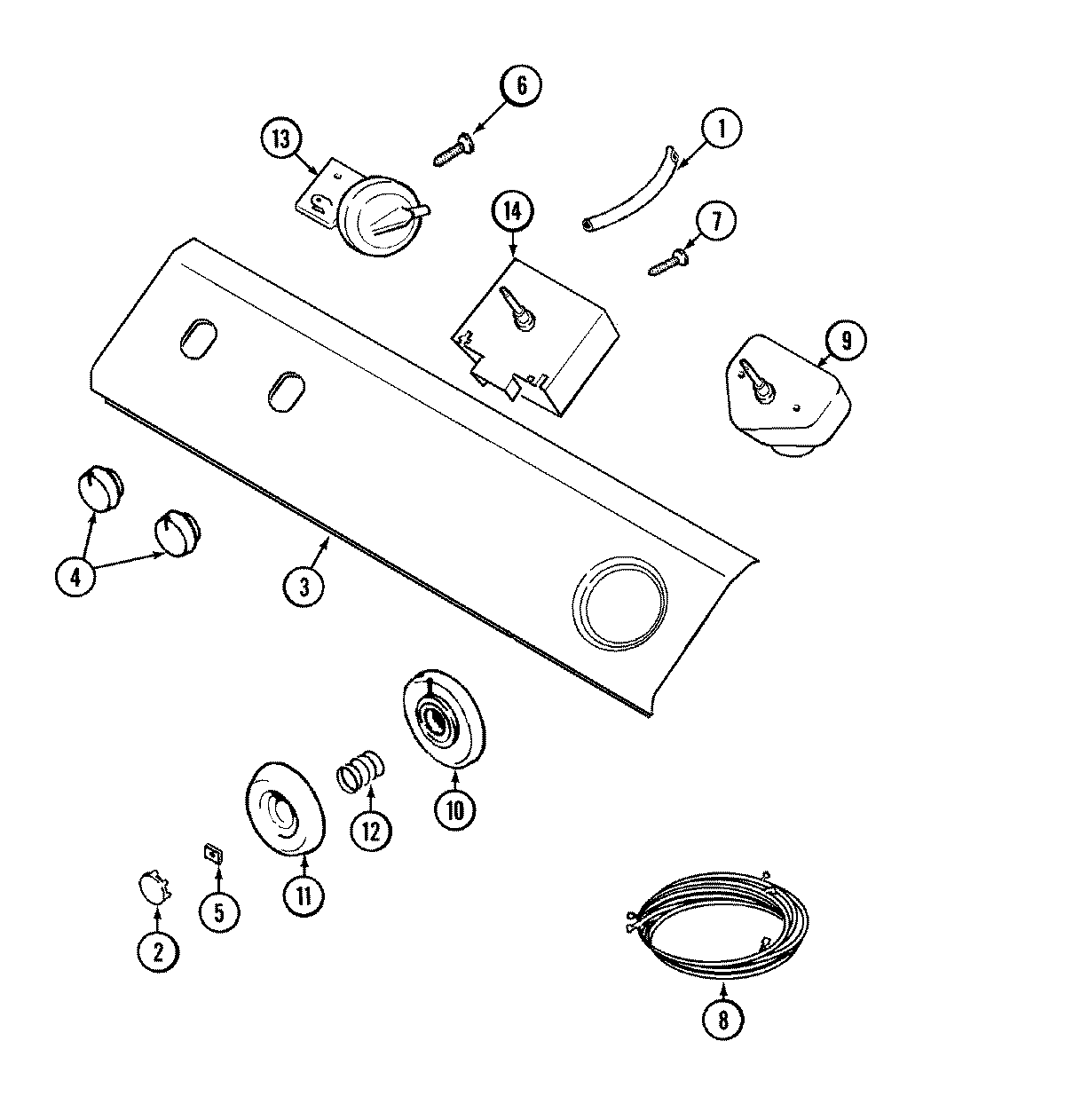

LAT8106ABE 04 – CONTROL PANEL

LAT8106ABE 04 – CONTROL PANEL

Written by

in

LAT8106ABE 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2WP22001664 Whirlpool Timer Knob
3MAY 22001699
4WP22001663 Whirlpool Selector Knob
5MAY 211605
68534058 Whirlpool Refrigerator Screw
7WP3400094 Whirlpool Screw
8MAY 22002206
8MAY 22001755
9MAY 22001686
10MAY 22001660
11WP22001659 Whirlpool Timer Knob
12WP211065 Whirlpool Timer Spring
13WP22001656 Whirlpool Washer Water Level Switch
14MAY 22001655
15MAY 22001657
15MAY 22001658
15MAY 16000327
