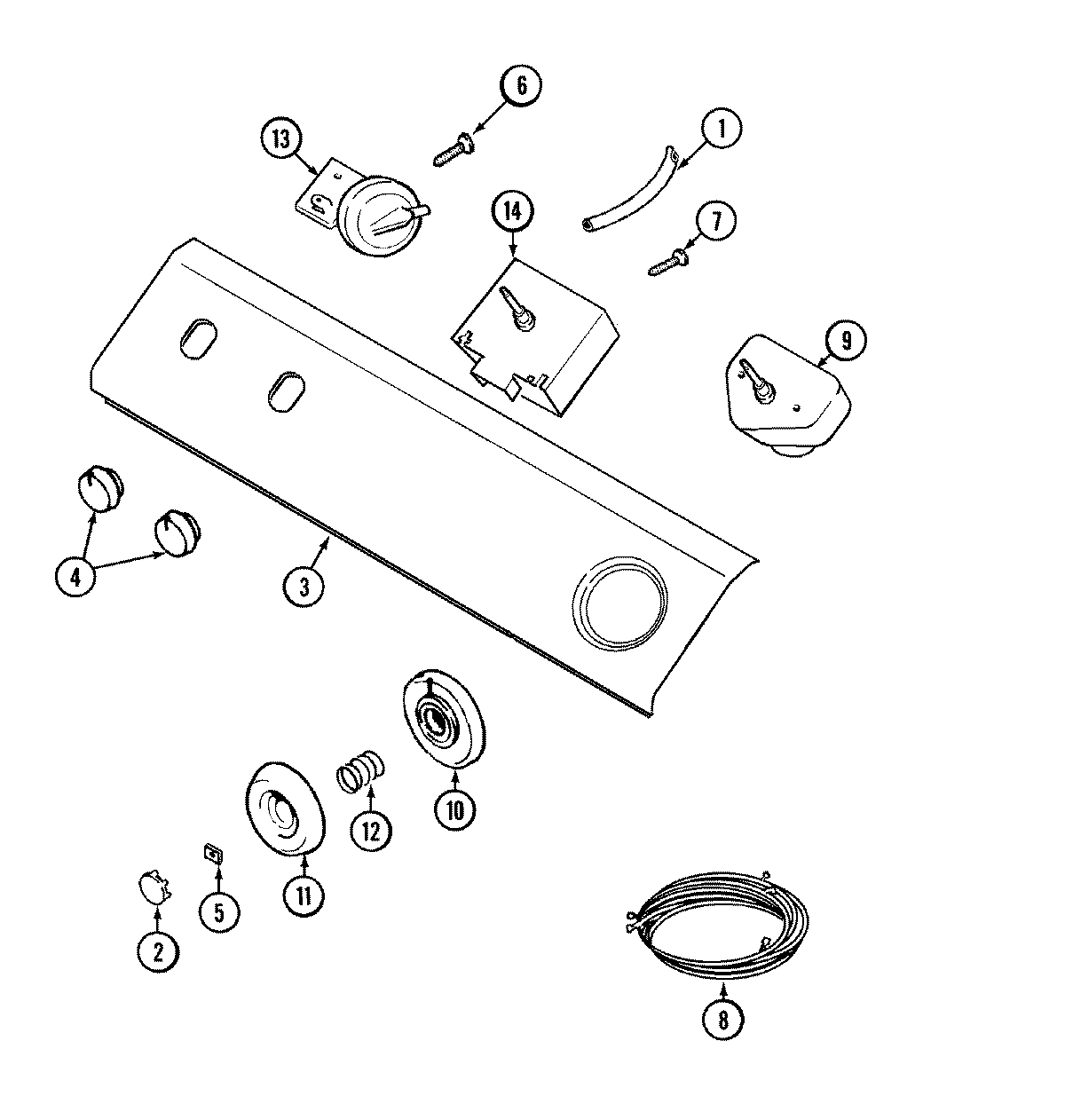

LAT8306AAE 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	WP22001664 Whirlpool Timer Knob
3	MAY 22001706
4	WP22001663 Whirlpool Selector Knob
5	MAY 211605
6	8534058 Whirlpool Refrigerator Screw
7	WP3400094 Whirlpool Screw
8	MAY 22001755
9	WP22002184 Whirlpool Timer
9	WP22001689 Whirlpool Timer
10	MAY 22001660
11	WP22001659 Whirlpool Timer Knob
12	WP211065 Whirlpool Timer Spring
13	WP22001656 Whirlpool Washer Water Level Switch
14	MAY 22001655
15	MAY 22001763
15	MAY 22001769
15	MAY 16000327
