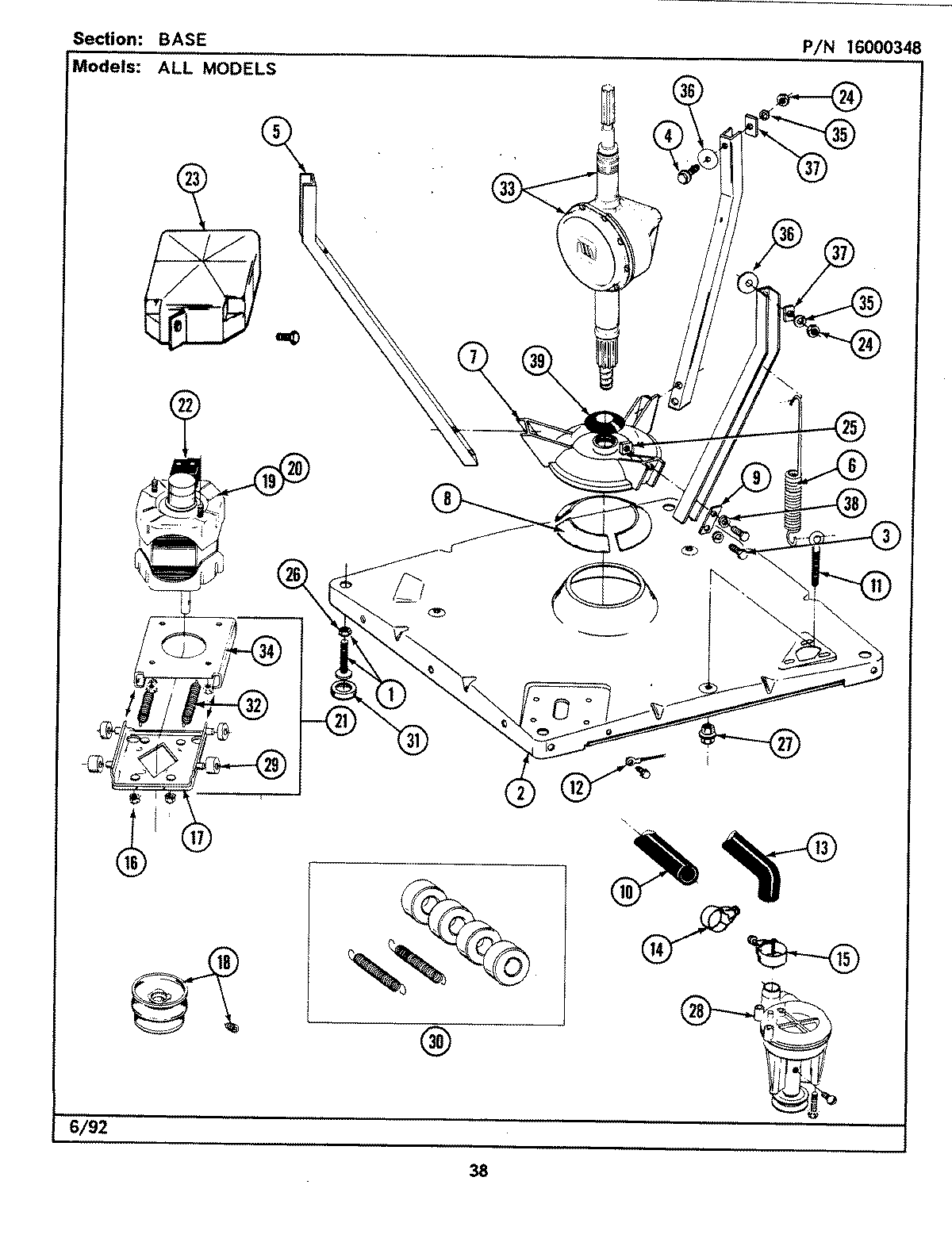

LAT8420ABW 01 – BASE

Products

Position	Product
1	LEG, ADJUSTABLE (W/NUT)—S
2	MAY 203274
4	W10175938 Whirlpool Bolt
4	W10175939 Whirlpool Bolt Assembly
5	MAY 213100
6	MAY 213054
7	MAY 203725
8	203956 Whirlpool Damper Pads 3 Pack with Poly
9	MAY 213073
10	MAY 214767
11	MAY 213120
12	MAY 204807
12	MAY 210186
13	WPY212989 Whirlpool Outer Hose
14	MAY 200461
15	WP285655 Whirlpool Hose Clamp
16	WP3400029 Whirlpool Dishwasher Nut
17	MAY 205908
18	MAY Y053241
18	MAY 200816
20	MAY 201807
21	MAY 205999
22	MAY 205131
22	MAY 205134
22	2-1664-11 AND 2-5463-1
22	MAY 206504
22	2-1664-8 AND 2-5463
22	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
23	WPW10346892 Whirlpool Screw
23	MAY 215098
24	MAY Y052734
25	MAY Y052785
26	WP210385 Whirlpool Lock Nut
27	WP211949 Whirlpool Nut
28	WPY014874 Whirlpool Screw
28	MAY 202203
28	MAY Y015408
29	205000 Whirlpool Motor Spring and Guide Kit
31	WP210684 Whirlpool Dishwasher Leveling Leg Pad
32	202718 Whirlpool Tension Spring
33	MAY 206708
34	MAY 214956
35	MAY Y054867
36	MAY 211100
37	MAY 212979
38	MAY 911852
39	MAY 211028
