LAT8424AAL 04 – CONTROL PANEL – Aparts

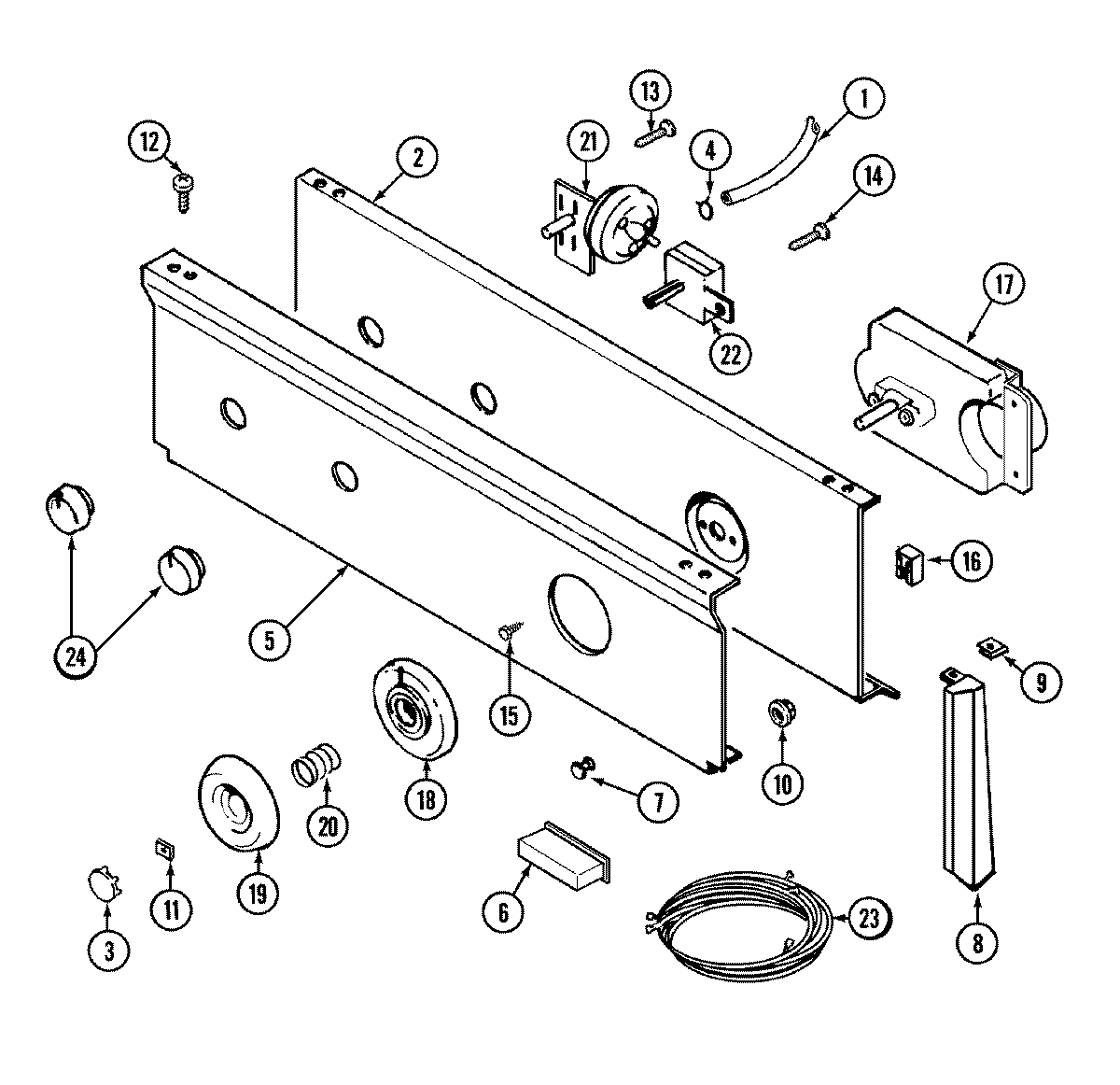

LAT8424AAL 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	MAY 22001132
2	MAY 315483
2	MAY 204807
3	MAY 216193
4	WP596669 Whirlpool Hose Clamp
5	MAY 22001159
6	MAY 214897
8	MAY 22001288
8	MAY 22001290
9	MAY 214894
10	MAY 214872
11	MAY 211605
12	MAY 314728
14	WPW10139210 Whirlpool Screw
15	MAY 216412
17	MAY 22001254
18	MAY 22001264
19	MAY 215828
20	WP211065 Whirlpool Timer Spring
21	MAY 208202
22	MAY 208281
23	MAY 22001312
24	MAY 22001267
