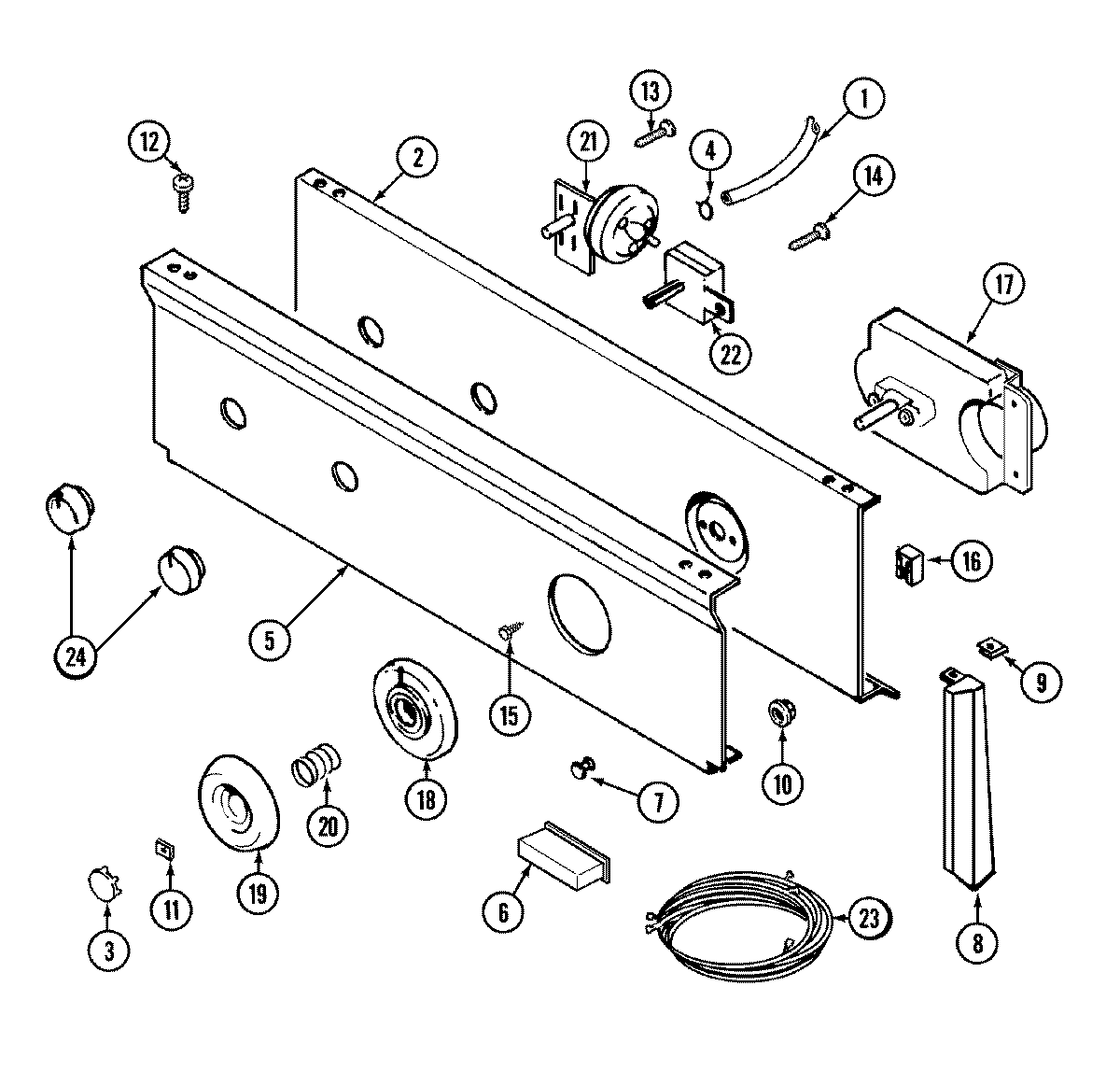

LAT8434AAE 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	MAY 22001132
2	MAY 204807
2	MAY 315483
3	MAY 216250
4	WP596669 Whirlpool Hose Clamp
5	MAY 22001229
6	MAY 214897
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 22001291
8	MAY 22001289
9	MAY 214894
10	MAY 214872
11	MAY 211605
12	MAY 210932
14	WPW10139210 Whirlpool Screw
15	MAY 216412
16	WP903115 Whirlpool Dishwasher Indicator Light
17	MAY 22001515
17	WP22001026 Whirlpool Timer
18	MAY 22001265
19	MAY 22001198
20	WP211065 Whirlpool Timer Spring
21	MAY 208201
22	MAY 208281
23	MAY 22001204
24	MAY 22001268
