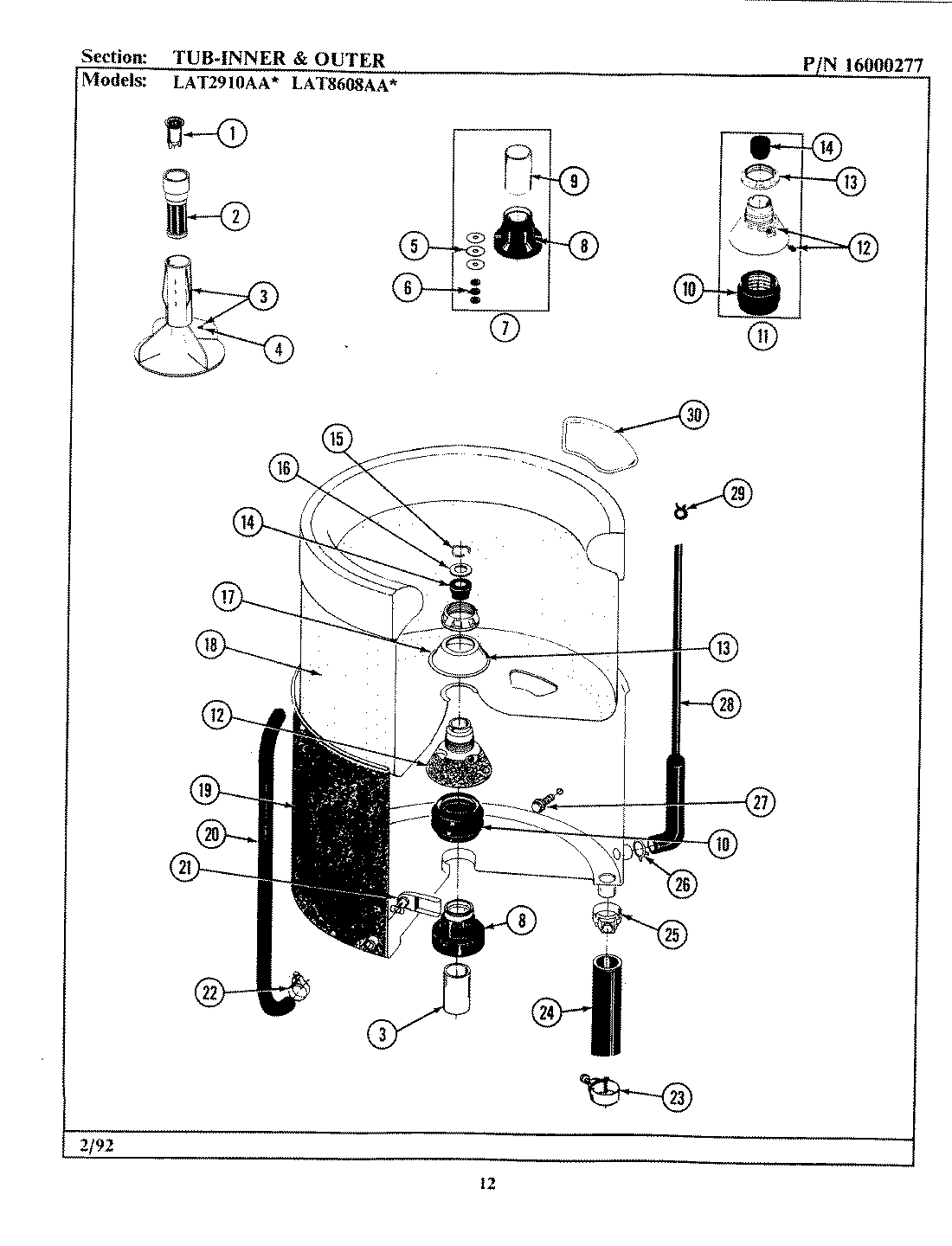

LAT8608AAW 08 – TUB-INNER & OUTER

LAT8608AAW 08 – TUB-INNER & OUTER

Written by

in

LAT8608AAW 08 – TUB-INNER & OUTER

Products

PositionProduct
1MAY 215733
2MAY 207426
3MAY 207228
4MAY 206478
5MAY 211100
6MAY Y054867
86-2040130 Whirlpool Washer Tub Bearing Kit
9MAY 211130
10MAY 201537
11MAY 204012
12MAY 202521
13WP6-2110472 Whirlpool Nut Clamp
14WP6-0A57420 Whirlpool Agitator Seal
15MAY Y015667
16WPY015666 Whirlpool Washer Retainer
17MAY 211210
18MAY 207831
19MAY 214725
19PART NOT USED
19WP596669 Whirlpool Hose Clamp
23WP285655 Whirlpool Hose Clamp
24WP213045 Whirlpool Dishwasher Tub to Pump Hose
25MAY 200900
27W10175938 Whirlpool Bolt
27W10175939 Whirlpool Bolt Assembly
28MAY 212942
30MAY 215980
