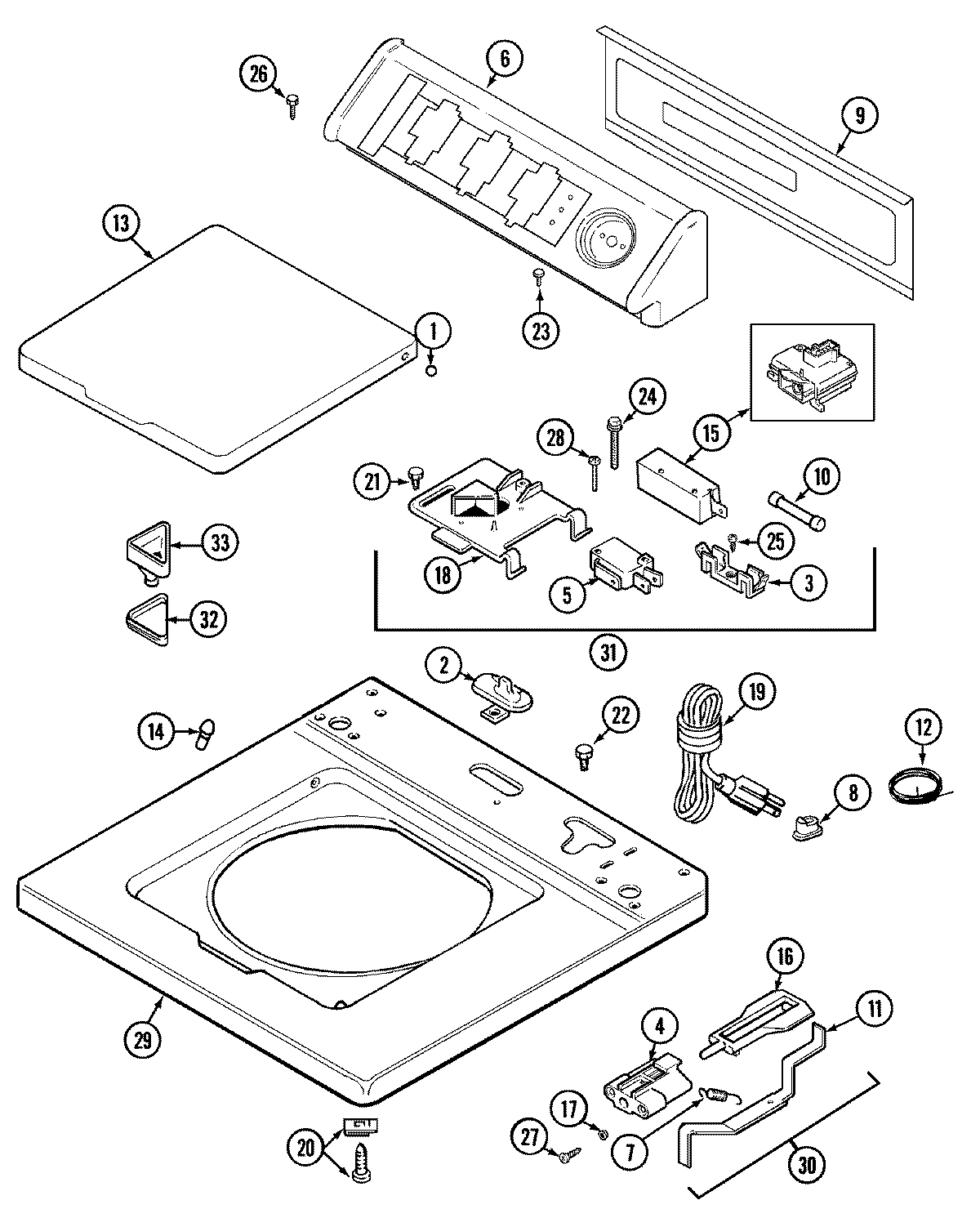

| 1 | WP211726 Whirlpool Ball Assembly |
| 2 | MAY 22001298 |
| 4 | MAY 22002135 |
| 6 | MAY 22001670 |
| 7 | WP213720 Whirlpool Spring Assembly |
| 8 | GROMMET |
| 9 | MAY 22001814 |
| 9 | 8534058 Whirlpool Refrigerator Screw |
| 11 | MAY 22001968 |
| 12 | MAY 22001654 |
| 14 | WP212716 Whirlpool Lid Bumper |
| 15 | 12001908 Whirlpool Washer Lid Switch Kit |
| 16 | MAY 216255 |
| 17 | MAY 211500 |
| 19 | MAY 208194 |
| 20 | MAY 22001402 |
| 21 | SCREW |
| 22 | WP489128 Whirlpool Refrigerator Screw |
| 24 | MAY 213501 |
| 25 | MAY Y311711 |
| 26 | MAY 216423 |
| 27 | W10756178 Whirlpool Screw |
| 28 | MAY 22001352 |
| 30 | MAY 22001969 |
| 31 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 32 | MAY 215374 |
| 33 | 22001006 Whirlpool Bleach Cup Assembly |
