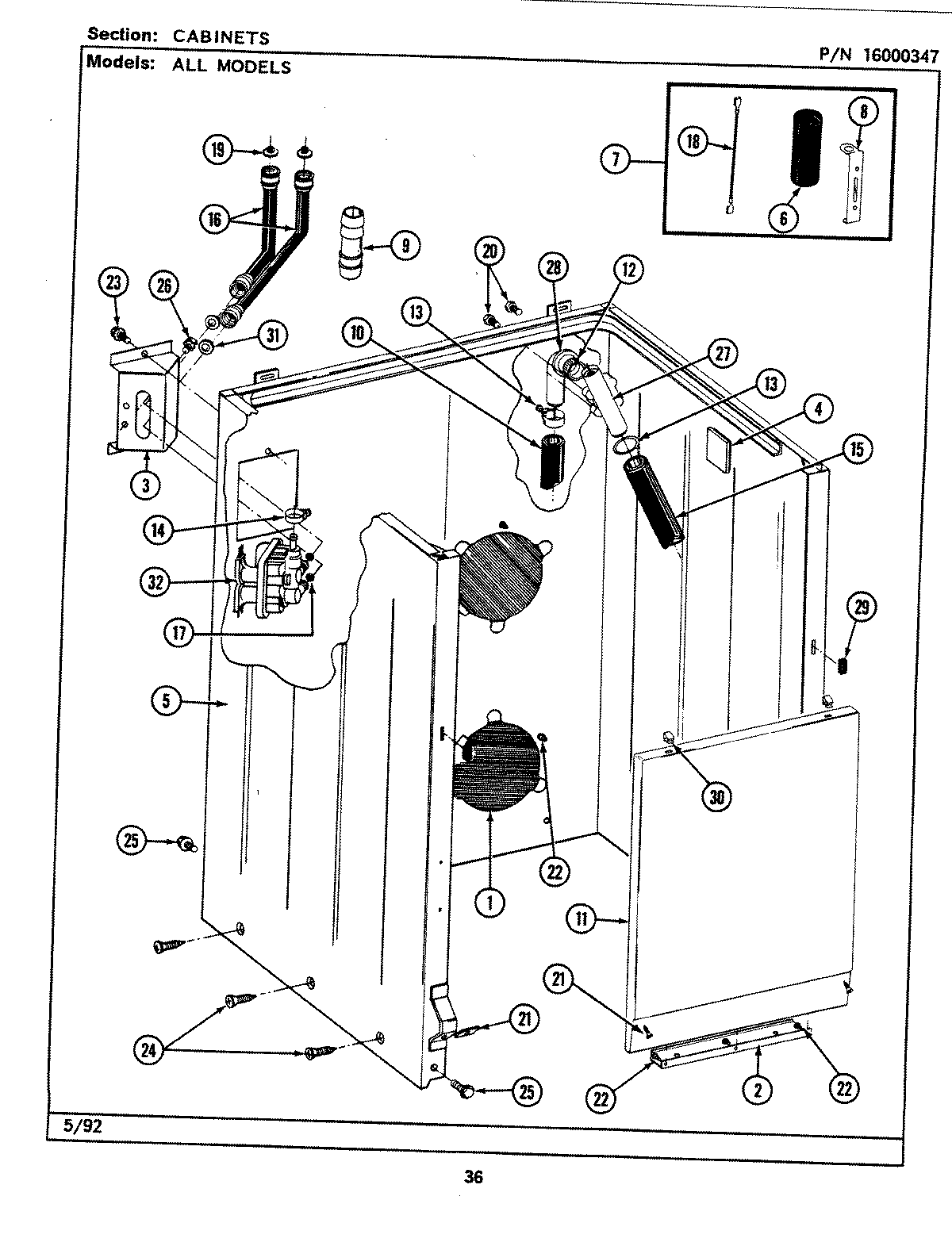

LAT8640BBL 02 – CABINET

LAT8640BBL 02 – CABINET

Written by

in

LAT8640BBL 02 – CABINET

Products

PositionProduct
1MAY 211878
2MAY 213846
3MAY 214812
4MAY 215058
5MAY 203319L
6MAY Y200832
7MAY 206103
8MAY 211149
9MAY Y216015
10MAY 216017
10MAY Y059149
11MAY 212998L
12WP214765 Whirlpool Gasket
13MAY 200908
14WP596669 Whirlpool Hose Clamp
15MAY 214767
16202860 Whirlpool Inlet Hose 5 FT
17WP96160 Whirlpool Washer Inlet Valve Screen
18MAY 203237
19MAY 200961
20WPY014874 Whirlpool Screw
21SCREW & FSTNER ASSY (FT. PNL)
22WP90767 Whirlpool Screw
23MAY 212276
24213007 Whirlpool Screw #12
25WP27001200 Whirlpool Screw
25WPW10346892 Whirlpool Screw
26MAY Y313561
27206638 Whirlpool Break Siphon Connector Kit
28WPW10116738 Whirlpool Elbow Connector
29MAY 214376
30MAY 212982
31MAY Y013783
32205613 Whirlpool Washer Water Inlet Valve
