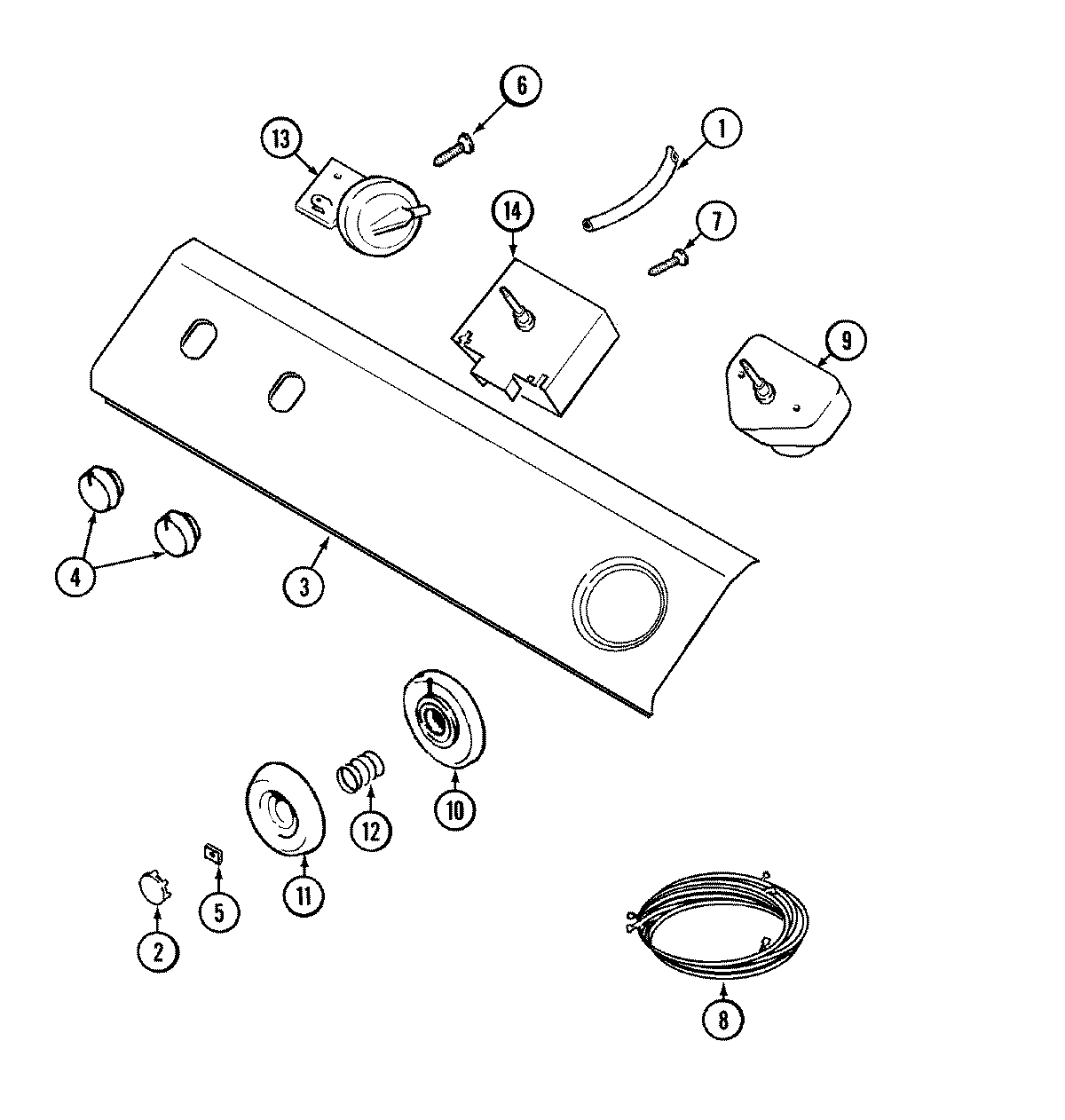

LAT9206AAE 04 – CONTROL PANEL

Products

Position	Product
1	MAY 22001036
2	WP22001664 Whirlpool Timer Knob
3	MAY 22001652
4	WP22001663 Whirlpool Selector Knob
5	MAY 211605
6	8534058 Whirlpool Refrigerator Screw
7	WP3400094 Whirlpool Screw
8	MAY 22002204
8	MAY 22001653
9	WP22002180 Whirlpool Timer Assembly
9	WP22001651 Whirlpool Timer
10	MAY 22001660
11	WP22001659 Whirlpool Timer Knob
12	WP211065 Whirlpool Timer Spring
13	WP22001656 Whirlpool Washer Water Level Switch
14	MAY 22001655
15	MAY 22001657
15	MAY 22001658
15	MAY 16000327
