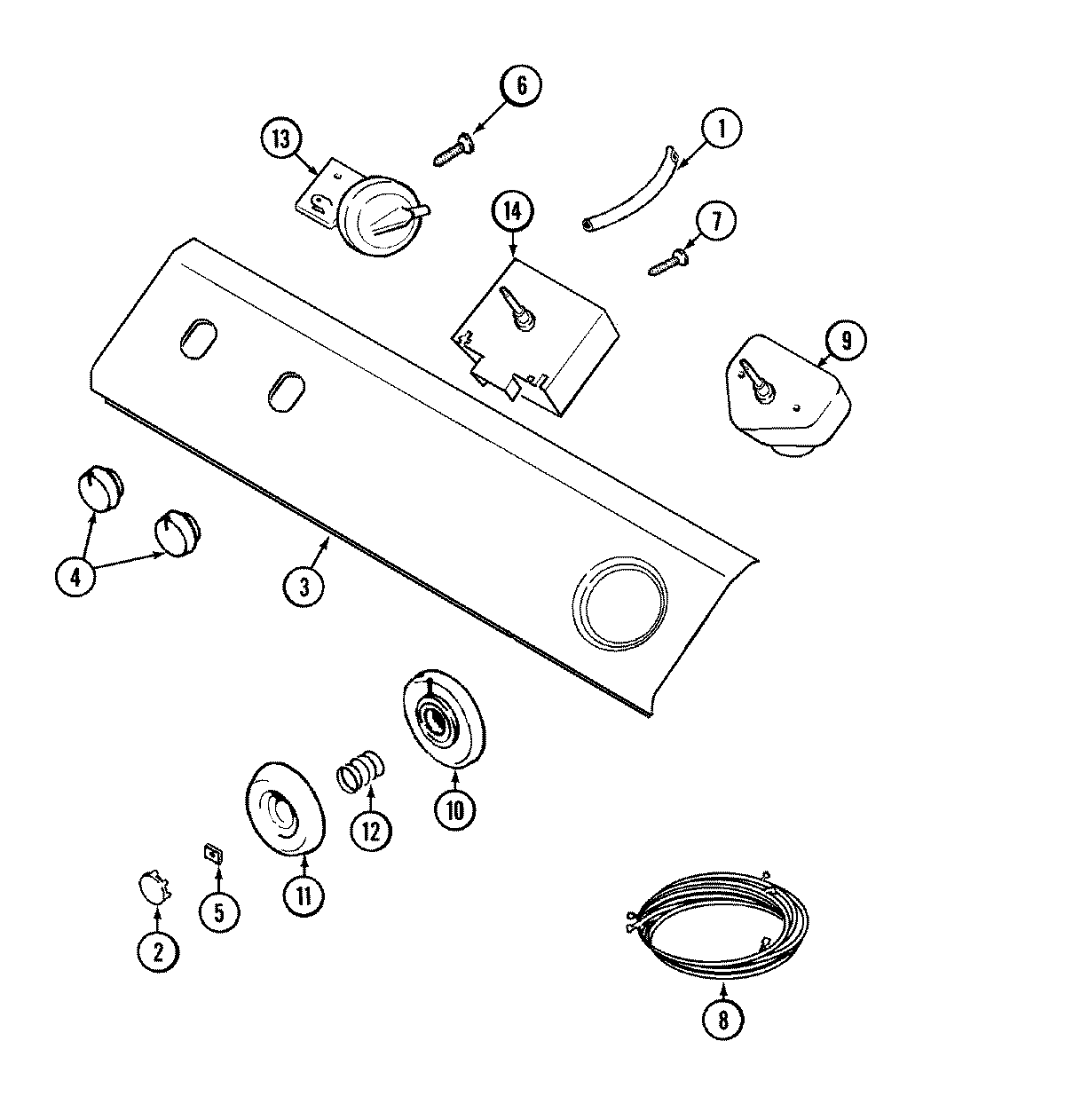

LAT9206BAE 04 – CONTROL PANEL

Products

PositionProduct
1WP22001619 Whirlpool Washer Water Level Pressure Switch Hose
2WP22001664 Whirlpool Timer Knob
3MAY 22002390
4WP22001663 Whirlpool Selector Knob
5MAY 211605
68534058 Whirlpool Refrigerator Screw
7WP3400094 Whirlpool Screw
8MAY 22002204
9MAY 22002183
10MAY 22001660
12WP211065 Whirlpool Timer Spring
13WP22001656 Whirlpool Washer Water Level Switch
14MAY 22001655
15MAY 16000327
16MAY 22002393
17MAY 22002392
