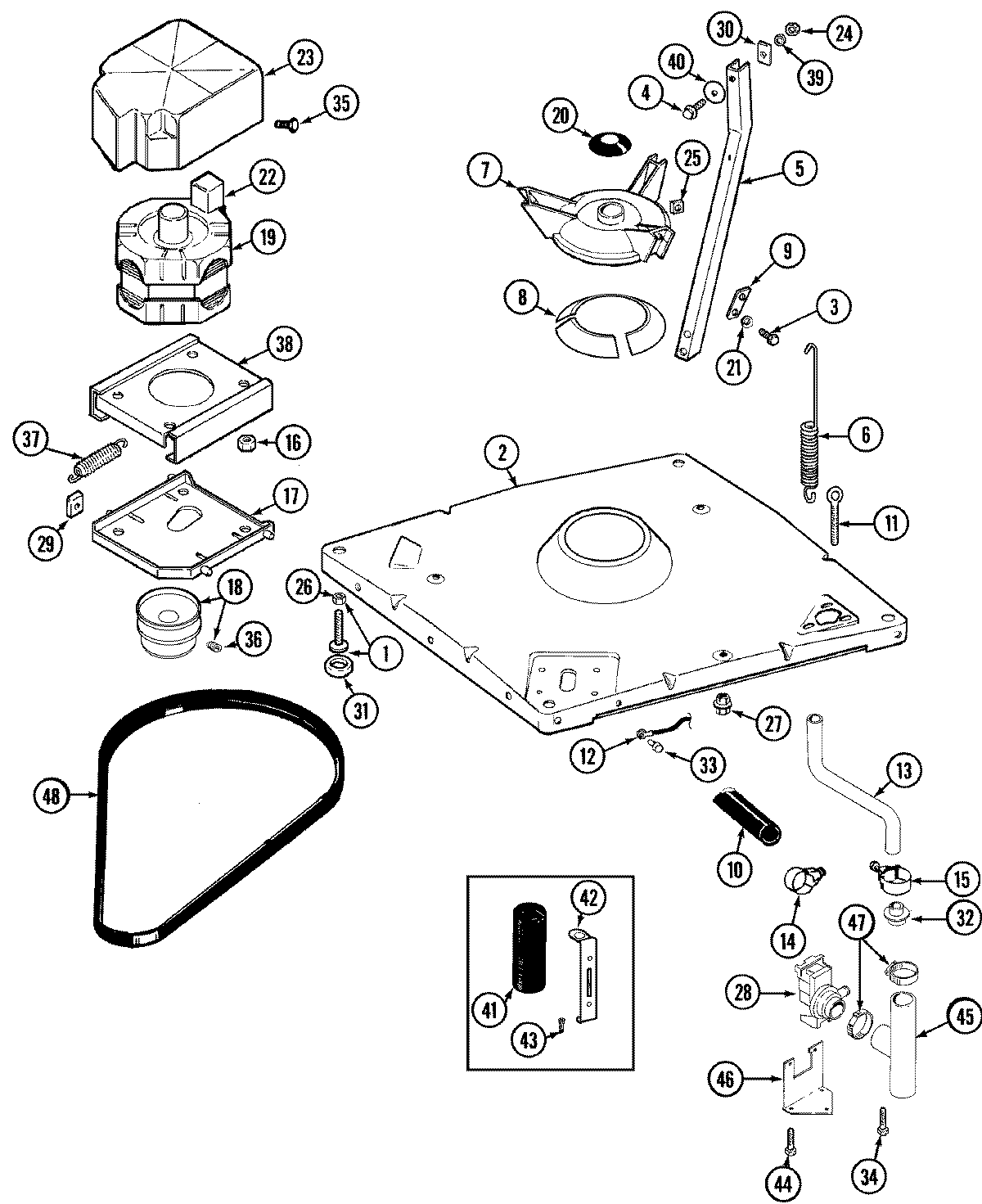

LAT9304AGM 01 – BASE (LAT9304AGM)

Products

Position	Product
1	LEG, ADJUSTABLE (W/NUT)---S
2	MAY 22001172
4	W10175939 Whirlpool Bolt Assembly
4	W10175938 Whirlpool Bolt
5	PART NOT USED
6	MAY 22001300
7	MAY 203725
8	203956 Whirlpool Damper Pads 3 Pack with Poly
9	MAY 213073
10	MAY 214767
11	W11129403 Whirlpool Bolt
12	MAY 901220
13	MAY 22001281
15	WP285655 Whirlpool Hose Clamp
16	WP3400029 Whirlpool Dishwasher Nut
17	MAY 22001301
18	MAY Y202496
19	MAY 202157
20	MAY 211028
21	MAY 911852
22	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
23	MAY 215098
24	MAY Y052734
25	MAY Y052785
26	WP210385 Whirlpool Lock Nut
27	WP211949 Whirlpool Nut
28	MAY 22001373
29	205000 Whirlpool Motor Spring and Guide Kit
30	MAY 212979
31	WP210684 Whirlpool Dishwasher Leveling Leg Pad
32	MAY 22001374
33	MAY 912365
34	MAY Y313561
35	WPW10346892 Whirlpool Screw
36	MAY 22001353
37	MAY 22001442
38	MAY 214956
39	MAY Y054867
40	MAY 211100
41	MAY 201101
42	MAY 211149
43	WP90767 Whirlpool Screw
44	MAY 22001359
45	MAY 22001079
46	MAY 22001375
47	MAY 22001376
48	WP211948 Whirlpool Drive Belt
