LAT9416AAE 05 – TOP (9416)

Products

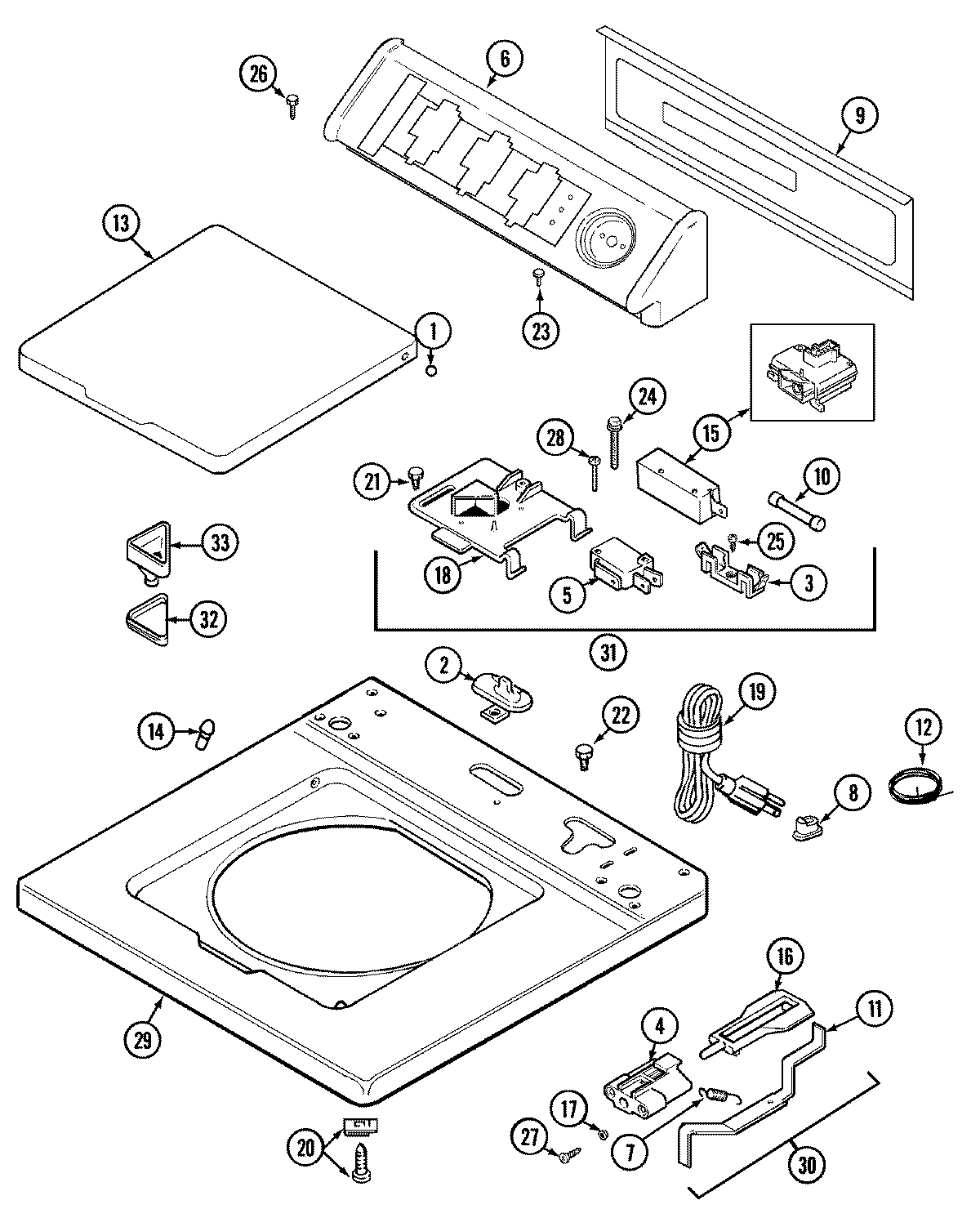

Position	Product
1	WP211726 Whirlpool Ball Assembly
2	MAY 22001298
3	MAY 207167
4	MAY 22002135
4	MAY 22001645
5	WP207166 Whirlpool CH Switch
6	MAY 22001670
7	WP213720 Whirlpool Spring Assembly
8	GROMMET
9	MAY 22001814
9	8534058 Whirlpool Refrigerator Screw
10	MAY 22001673
11	MAY 22001672
11	MAY 22001968
12	MAY 22001654
13	MAY 22001676
13	MAY 22001674
14	WP212716 Whirlpool Lid Bumper
15	MAY 22001972
15	12001908 Whirlpool Washer Lid Switch Kit
15	W10820036 Whirlpool Door Switch Kit
16	MAY 216255
17	MAY 211500
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	22001678 Whirlpool Switch and Fuse Bracket
19	MAY 208194
20	MAY 22001402
21	SCREW
22	WP489128 Whirlpool Refrigerator Screw
24	MAY 213501
25	MAY Y311711
26	MAY 216423
27	W10756178 Whirlpool Screw
28	MAY 22001352
29	MAY 22001781
29	MAY 22002145
30	MAY 22001969
30	MAY 22001681
31	MAY 22001682
32	MAY 215374
33	22001006 Whirlpool Bleach Cup Assembly
