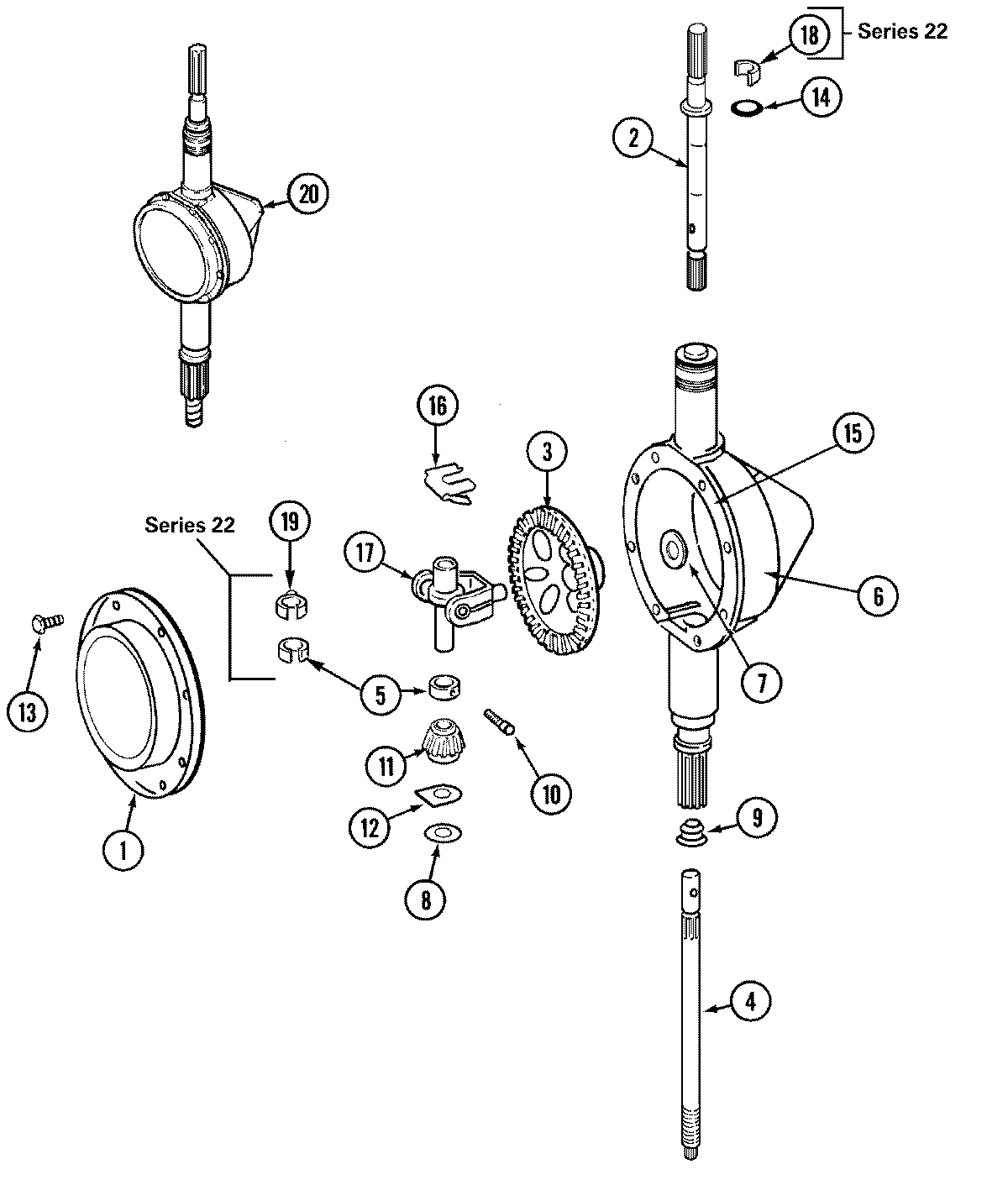

LAT9416AAE 06 – TRANSMISSION (9416)

Products

Position	Product
1	MAY 206628
2	MAY 22002415
2	MAY 207153
3	MAY 206713
4	MAY 22002342
4	MAY 215410
5	WP22002353 Whirlpool Collar
5	MAY 215415
6	MAY 22002416
6	MAY 206624
7	MAY 215394
8	WP6-2114830 Whirlpool Washer Spare Part
9	MAY 206602
10	WPY206629 Whirlpool Pin Collar
11	WPW10221114 Whirlpool Pinion
12	WP215395 Whirlpool Clutch Plate
13	MAY 215417
14	WP22002417 Whirlpool Agitator O-Ring
14	MAY 210690
15	MAY Y058700
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	WP215581 Whirlpool Spring Assembly
17	MAY 206685
18	WP22002340 Whirlpool Agitator Collar
19	WP22002341 Whirlpool Collar
20	MAY 206707
20	MAY 22002126
