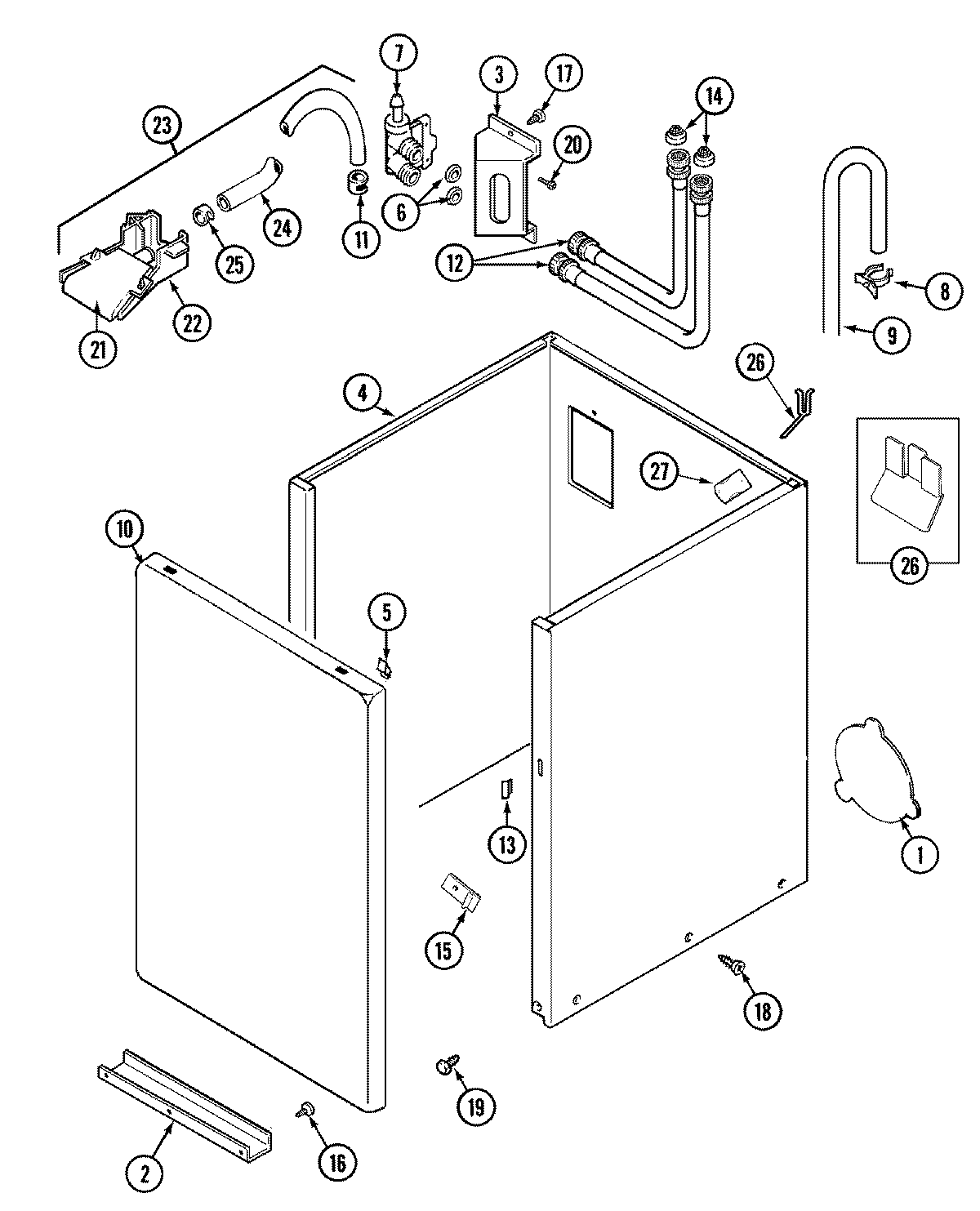

LAT9457BAE 02 – CABINET

LAT9457BAE 02 – CABINET

Written by

in

LAT9457BAE 02 – CABINET

Products

PositionProduct
1MAY 22002924
1MAY 211878
2MAY 213846
3MAY 22003217
3MAY 22002361
4MAY 22002379
5WP22001650 Whirlpool Spring Clip
6MAY Y013783
7WP96160 Whirlpool Washer Inlet Valve Screen
7WP22002360 Whirlpool Water Valve
8WP22002765 Whirlpool Hose Clip
9WP22003410 Whirlpool Drain Hose
10WP22001817 Whirlpool Sheet
10MAY 22002366
12FILL HOSE 5' W/WASHER
12MAY 35-3401
14WPL 12001413
15MAY 22002376
15MAY Y310632
16WP90767 Whirlpool Screw
17MAY 22002372
18213007 Whirlpool Screw #12
19MAY 22002378
20MAY Y313561
21MAY 22001187
22MAY 22002310
23WP22001304 Whirlpool Injector Assembly
24MAY 22001190
25WP596669 Whirlpool Hose Clamp
26MAY 22002377
27MAY 22003512
