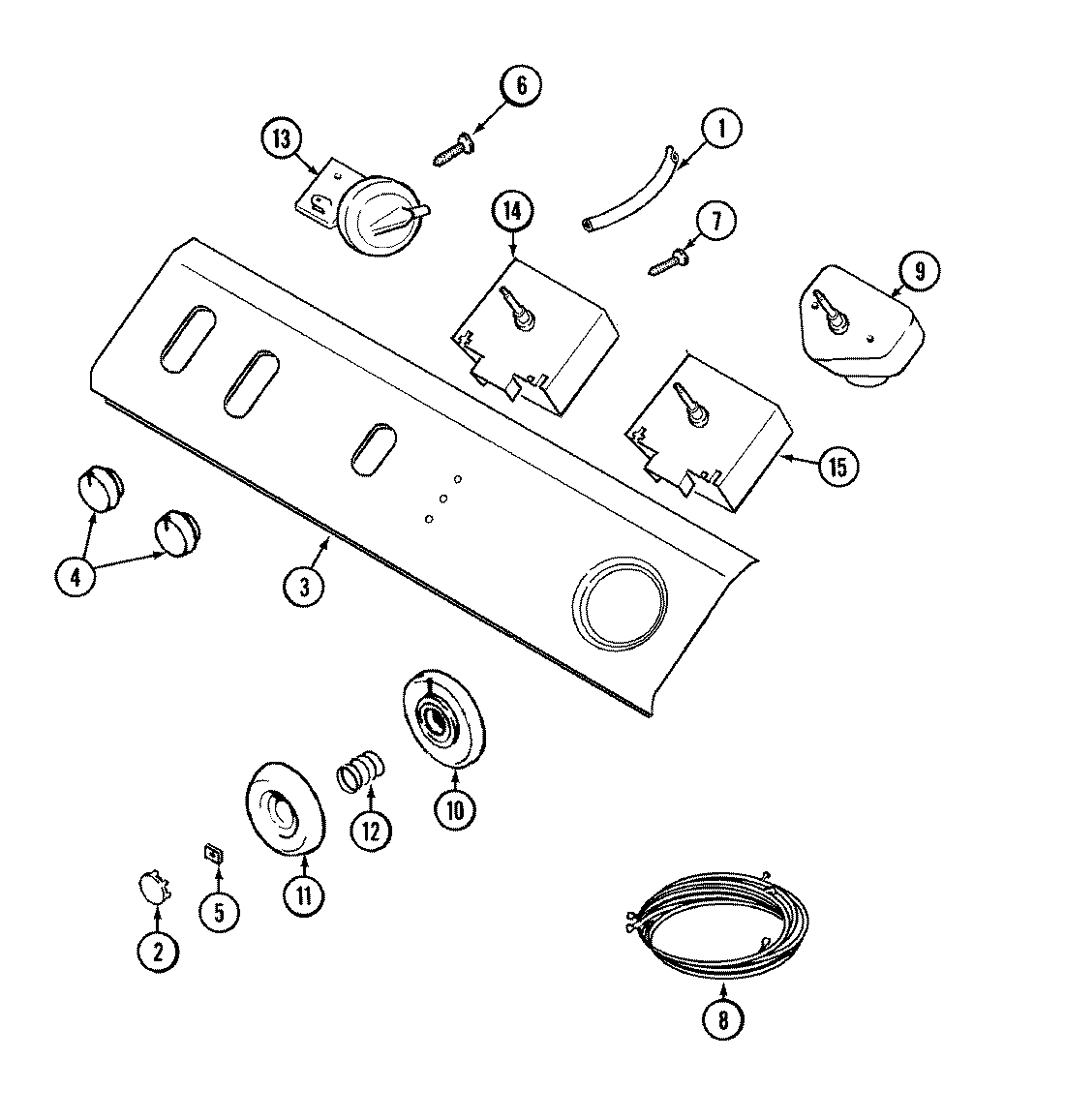

LAT9520AAQ 04 – CONTROL PANEL

LAT9520AAQ 04 – CONTROL PANEL

Written by

in

LAT9520AAQ 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2MAY 33002347
3MAY 22003023
4MAY 22002589
5MAY 211605
68534058 Whirlpool Refrigerator Screw
7WP3400094 Whirlpool Screw
8MAY 22002412
9WP22003363 Whirlpool Timer Assembly
10MAY 22002598
11WP22001659 Whirlpool Timer Knob
12WP211065 Whirlpool Timer Spring
13WP22001656 Whirlpool Washer Water Level Switch
14MAY 22001825
15MAY 22001794
16MAY 22003421
16MAY 22003420
