LAT9593ABL 02 – CABINET
Written by
in

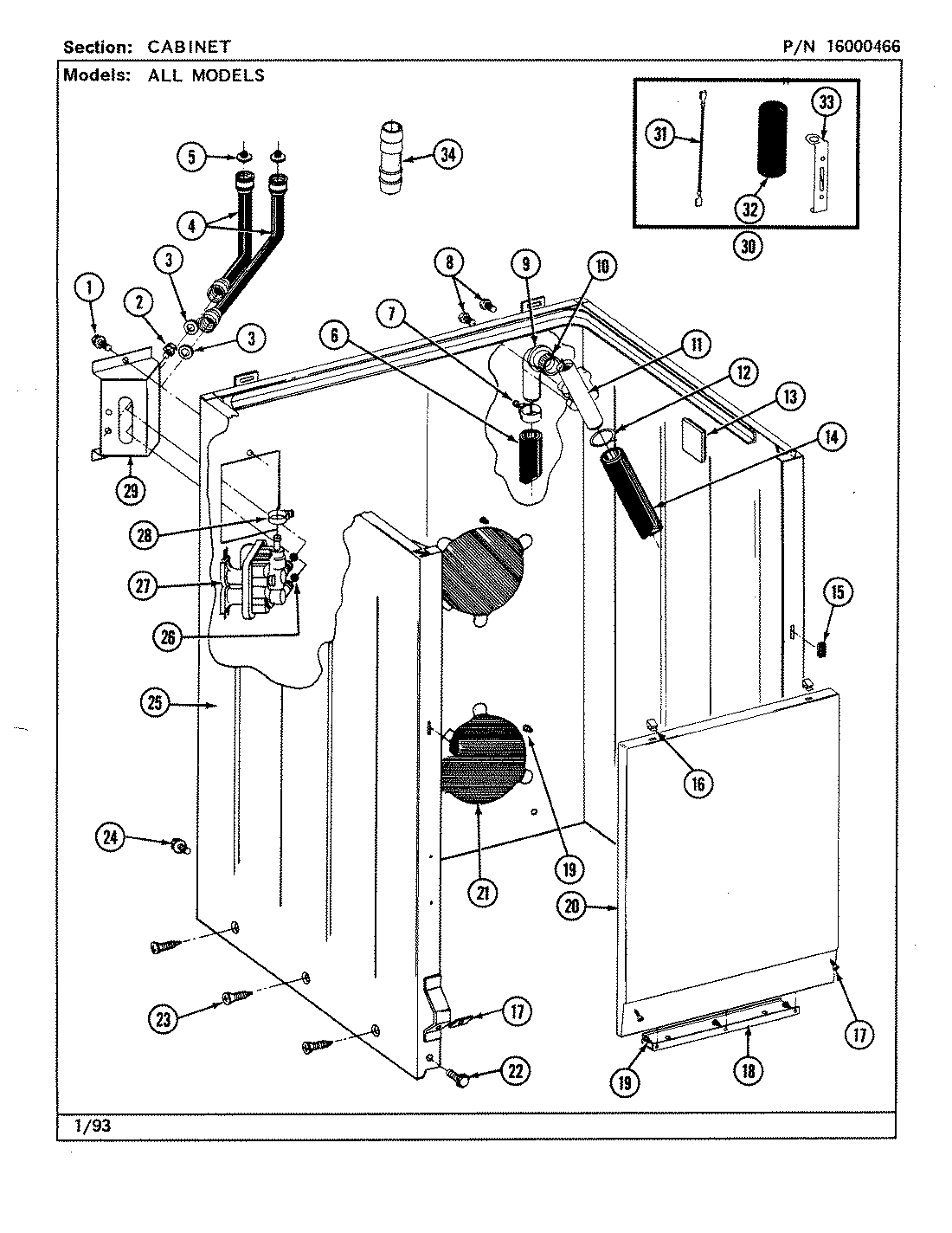

LAT9593ABL 02 – CABINET
Products
Position
Product
1
MAY 212276
2
MAY Y313561
3
MAY Y013783
4
202860 Whirlpool Inlet Hose 5 FT
5
MAY 200961
6
MAY 216017
7
MAY 200908
8
WPY014874 Whirlpool Screw
9
WPW10116738 Whirlpool Elbow Connector
10
WP214765 Whirlpool Gasket
11
206638 Whirlpool Break Siphon Connector Kit
12
MAY 200461
13
MAY 215058
14
MAY 214767
15
MAY 214376
16
MAY 212982
17
SCREW & FSTNER ASSY (FT. PNL)
18
MAY 213846
19
WP90767 Whirlpool Screw
20
MAY 212998L
21
MAY 211878
22
WP27001200 Whirlpool Screw
24
213007 Whirlpool Screw #12
25
MAY 203319L
26
WP96160 Whirlpool Washer Inlet Valve Screen
27
205613 Whirlpool Washer Water Inlet Valve
28
WP596669 Whirlpool Hose Clamp
29
MAY 214812
30
MAY 206103
31
MAY 203237
32
MAY Y200832
33
MAY 211149
←
