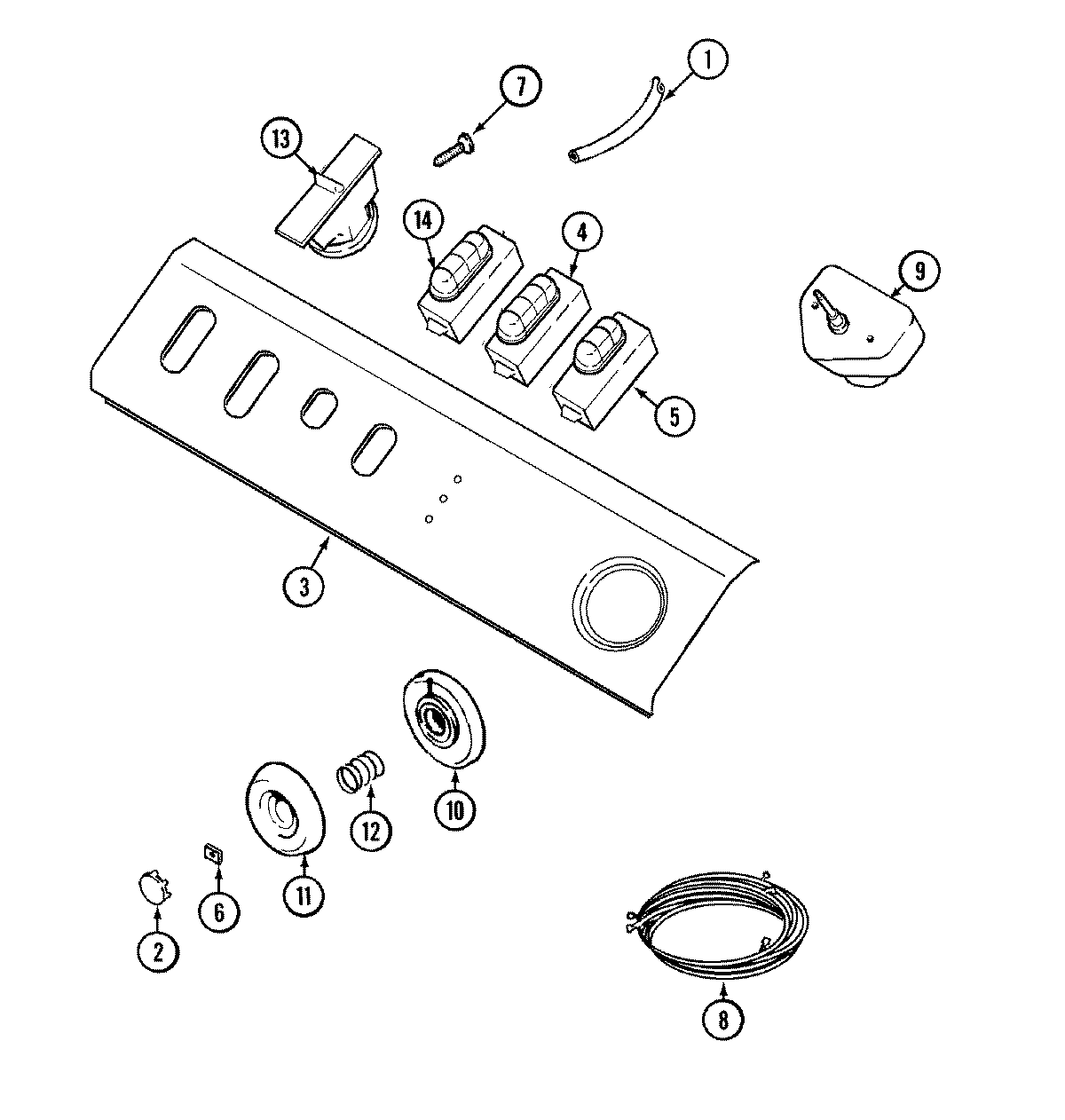

LAT9606ABM 04 – CONTROL PANEL

LAT9606ABM 04 – CONTROL PANEL

Written by

in

LAT9606ABM 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2MAY 22001665
3MAY 22001742
4MAY 22001784
4MAY 22001791
6MAY 211605
78534058 Whirlpool Refrigerator Screw
8MAY 22002208
9MAY 22002185
9WP3400094 Whirlpool Screw
10MAY 22001668
11WP22001659 Whirlpool Timer Knob
12WP211065 Whirlpool Timer Spring
13MAY 22001778
14MAY 22001790
14MAY 22001786
15MAY 22001765
15MAY 22001771
