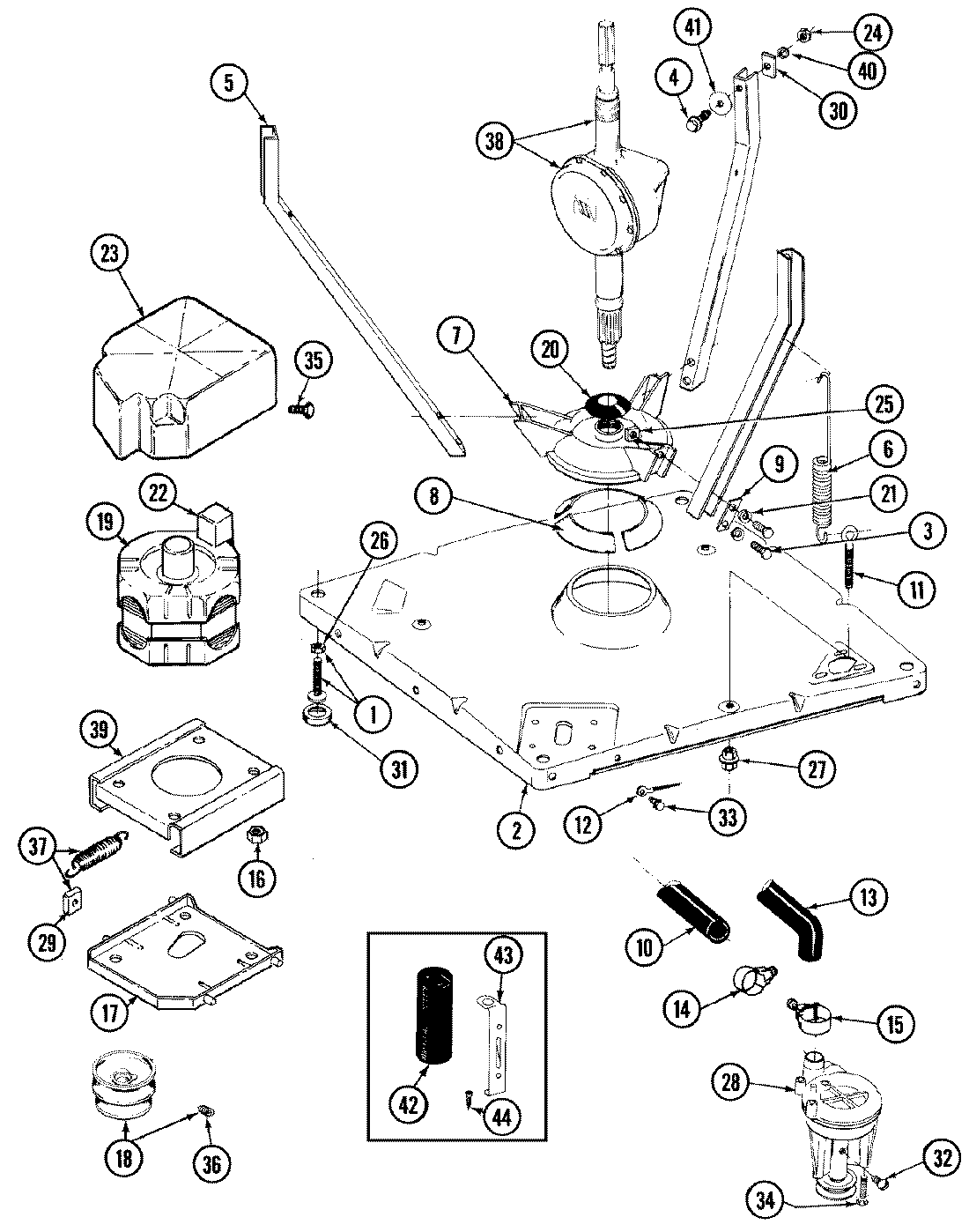

LAT9704GGE 01 – BASE

Products

Position	Product
1	LEG, ADJUSTABLE (W/NUT)—S
2	MAY 22001172
4	W10175938 Whirlpool Bolt
4	W10175939 Whirlpool Bolt Assembly
5	PART NOT USED
6	MAY 22001300
7	MAY 203725
8	203956 Whirlpool Damper Pads 3 Pack with Poly
9	MAY 213073
10	MAY 214767
11	W11129403 Whirlpool Bolt
12	MAY 901220
13	WP213045 Whirlpool Dishwasher Tub to Pump Hose
15	WP285655 Whirlpool Hose Clamp
16	WP3400029 Whirlpool Dishwasher Nut
17	MAY 22001301
18	MAY Y202496
19	WP22004498 Whirlpool Motor SP 2
20	MAY 211028
21	MAY 911852
22	MAY 205131
23	MAY 215098
24	MAY Y052734
25	MAY Y052785
26	WP210385 Whirlpool Lock Nut
27	WP211949 Whirlpool Nut
28	MAY 202203
29	205000 Whirlpool Motor Spring and Guide Kit
30	MAY 212979
31	WP210684 Whirlpool Dishwasher Leveling Leg Pad
32	MAY Y015408
33	MAY 912365
34	WPY014874 Whirlpool Screw
35	WPW10346892 Whirlpool Screw
36	MAY 22001353
38	MAY 206707
39	MAY 214956
40	MAY Y054867
41	MAY 211100
42	MAY 201101
43	MAY 211149
44	WP90767 Whirlpool Screw
