LAT9706ABE 04 – CONTROL PANEL

LAT9706ABE 04 – CONTROL PANEL

Written by

in

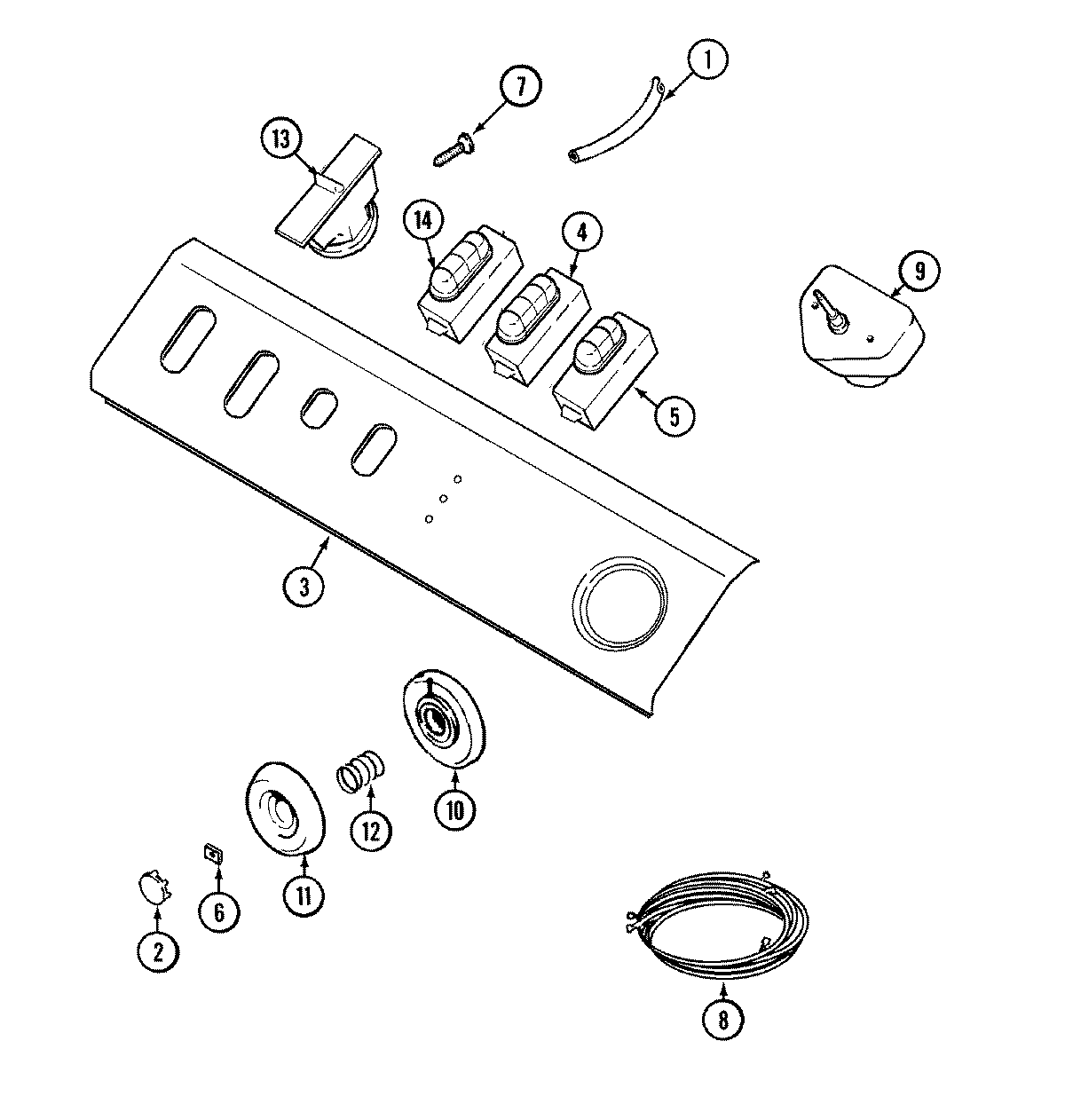

LAT9706ABE 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2WP22001664 Whirlpool Timer Knob
3MAY 22001722
4MAY 22001783
5MAY 22001795
6MAY 211605
78534058 Whirlpool Refrigerator Screw
8MAY 22002210
8WP22001948 Whirlpool Indicator Lens
8WP903115 Whirlpool Dishwasher Indicator Light
9WP22004262 Whirlpool Timer
9WP3400094 Whirlpool Screw
10MAY 22001660
11WP22001659 Whirlpool Timer Knob
12WP211065 Whirlpool Timer Spring
13MAY 22001777
14MAY 22001908
14MAY 22001789
14MAY 22001788
15MAY 22001772
15MAY 22001766
