LAT9806AAE 05 – TOP (9806)

LAT9806AAE 05 – TOP (9806)

Written by

in

LAT9806AAE 05 – TOP (9806)

Products

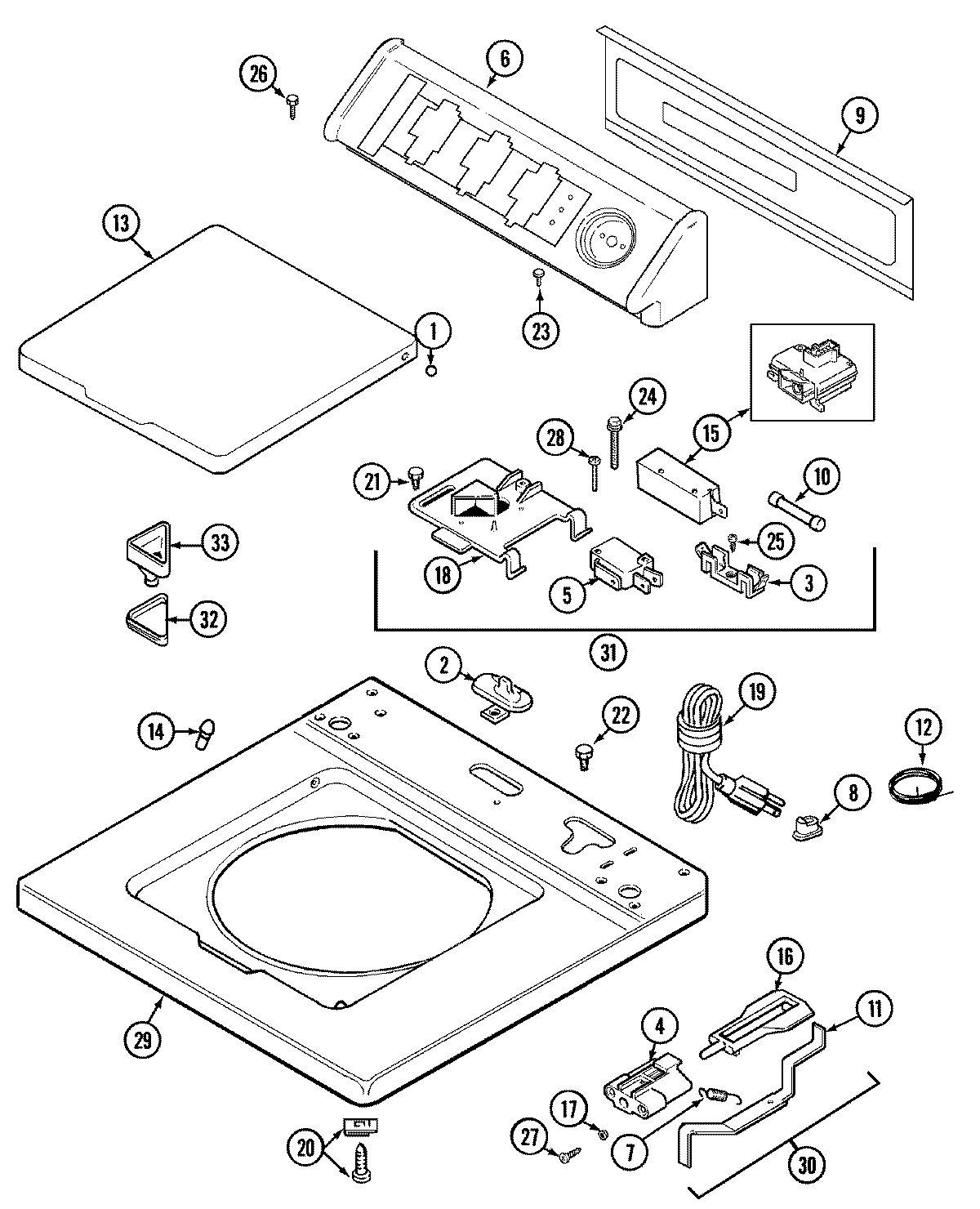

PositionProduct
1WP211726 Whirlpool Ball Assembly
2MAY 22001298
3MAY 207167
4MAY 22002135
4MAY 22001645
5WP207166 Whirlpool CH Switch
6MAY 22001670
7WP213720 Whirlpool Spring Assembly
8GROMMET
98534058 Whirlpool Refrigerator Screw
9MAY 22001814
10MAY 22001673
11MAY 22001672
11MAY 22001968
12MAY 22001654
13MAY 22001676
13MAY 22001674
14WP212716 Whirlpool Lid Bumper
15W10820036 Whirlpool Door Switch Kit
16MAY 216255
17MAY 211500
1822001678 Whirlpool Switch and Fuse Bracket
18NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19MAY 208194
20MAY 22001402
21SCREW
22WP489128 Whirlpool Refrigerator Screw
24MAY 213501
25MAY Y311711
26MAY 216423
27W10756178 Whirlpool Screw
28MAY 22001352
29MAY 22001781
30MAY 22001681
30MAY 22001969
3112001908 Whirlpool Washer Lid Switch Kit
31MAY 22001682
32MAY 215374
3322001006 Whirlpool Bleach Cup Assembly
