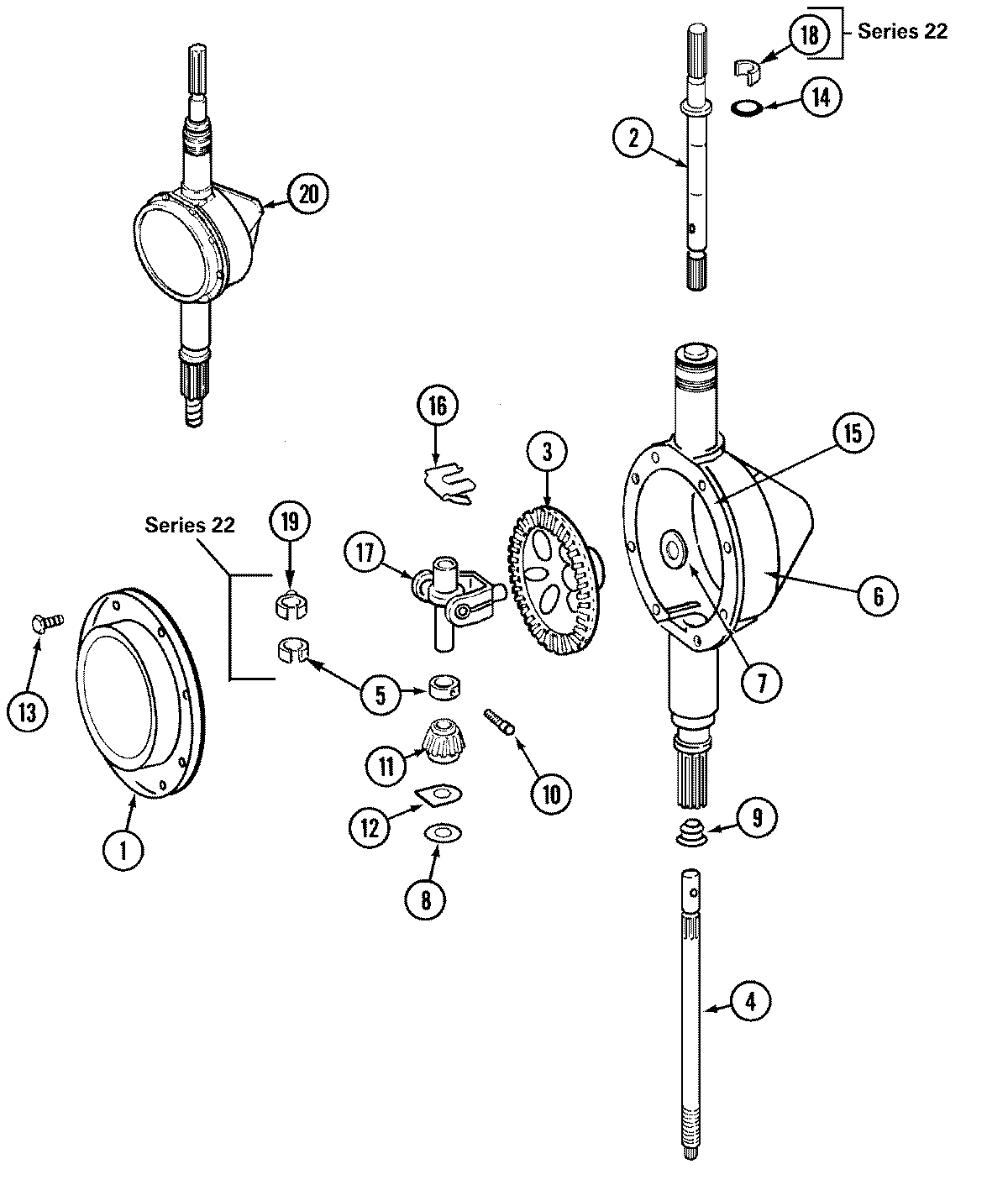

LAT9806DAQ 05 – TRANSMISSION (LAT9806)

Products

Position	Product
1	MAY 206628
2	MAY 22002415
3	MAY 206713
4	MAY 22002342
6	MAY 22002416
7	MAY 215394
8	WP6-2114830 Whirlpool Washer Spare Part
9	MAY 206602
11	WPW10221114 Whirlpool Pinion
12	WP215395 Whirlpool Clutch Plate
13	MAY 215417
14	WP22002417 Whirlpool Agitator O-Ring
15	MAY Y058700
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 206685
18	WP22002340 Whirlpool Agitator Collar
19	WP22002341 Whirlpool Collar
20	MAY 22002126
