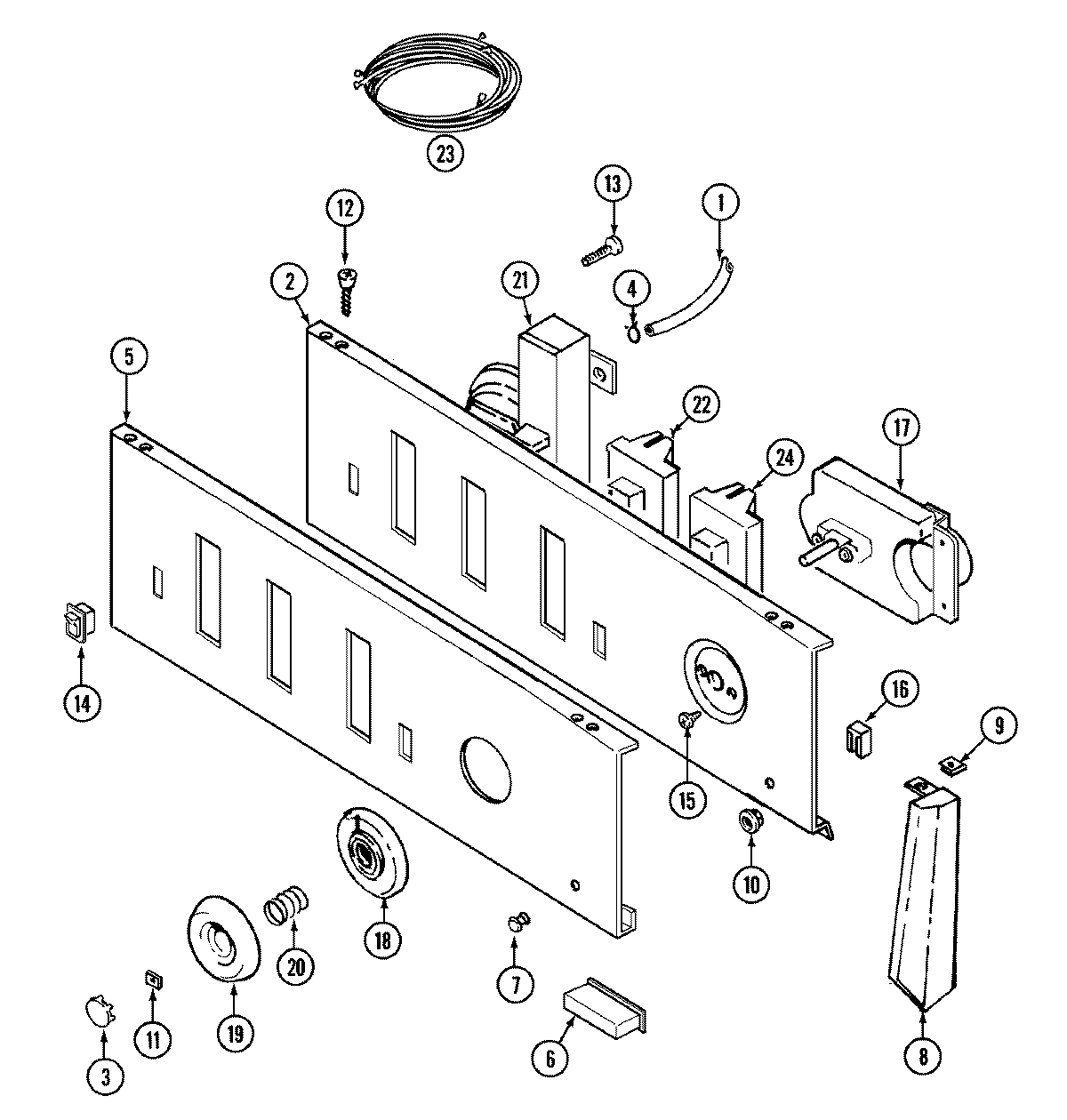

LAT9824AKM 04 – CONTROL PANEL

LAT9824AKM 04 – CONTROL PANEL

Written by

in

LAT9824AKM 04 – CONTROL PANEL

Products

PositionProduct
1MAY 22001036
2MAY 22001133
3MAY 22001447
4WP596669 Whirlpool Hose Clamp
5MAY 22001557
6MAY 214897
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 22001567
8MAY 22001566
9MAY 214894
10MAY 214872
11MAY 211605
12MAY 210932
13WPW10139210 Whirlpool Screw
14MAY 22001282
15MAY 216412
16MAY 22001403
17MAY 22001559
18MAY 22001266
19MAY 22001199
20WP211065 Whirlpool Timer Spring
21MAY 22001454
22MAY 22001455
23MAY 22001411
24MAY 22001458
25MAY 16000327
25MAY 22001560
