LATA200AAL 03 – MOTOR & PUMP – Aparts

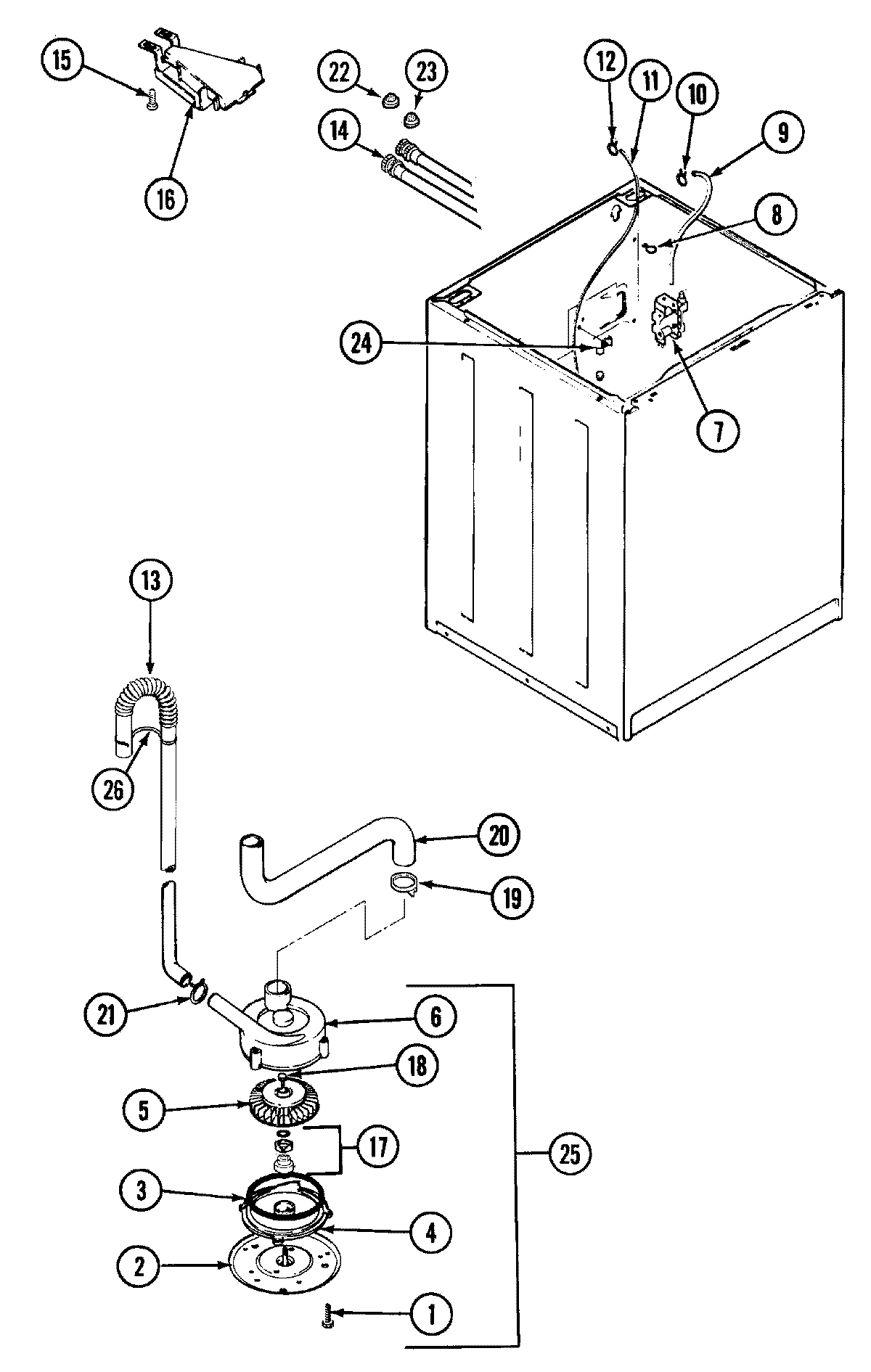

LATA200AAL 03 – MOTOR & PUMP

Products

Position	Product
1	MAY 25-7405
2	MAY 33-6035
3	MAY 33-6032
4	MAY 35-2058
5	WP35-6465 Whirlpool Drain Pump
6	MAY 35-2056
7	WP25-7220 Whirlpool Cabinet Clip
7	MAY 35-2374
9	12002749 Whirlpool Flume Hose Kit
11	MAY 35-2261
11	MAY 35-2321
12	MAY 33-6099
13	MAY 35-3539
13	MAY 33-9537
14	FILL HOSE 5' W/WASHER
14	MAY 35-0874
15	WP90767 Whirlpool Screw
16	MAY 35-2051
17	MAY 35-0707
18	MAY 25-7894
19	WP285655 Whirlpool Hose Clamp
20	WP21001915 Whirlpool Hose Tub
22	MAY 25-7048
23	MAY 33-7313
24	WP596669 Whirlpool Hose Clamp
25	MAY 35-2344
25	MAY 35-2099
