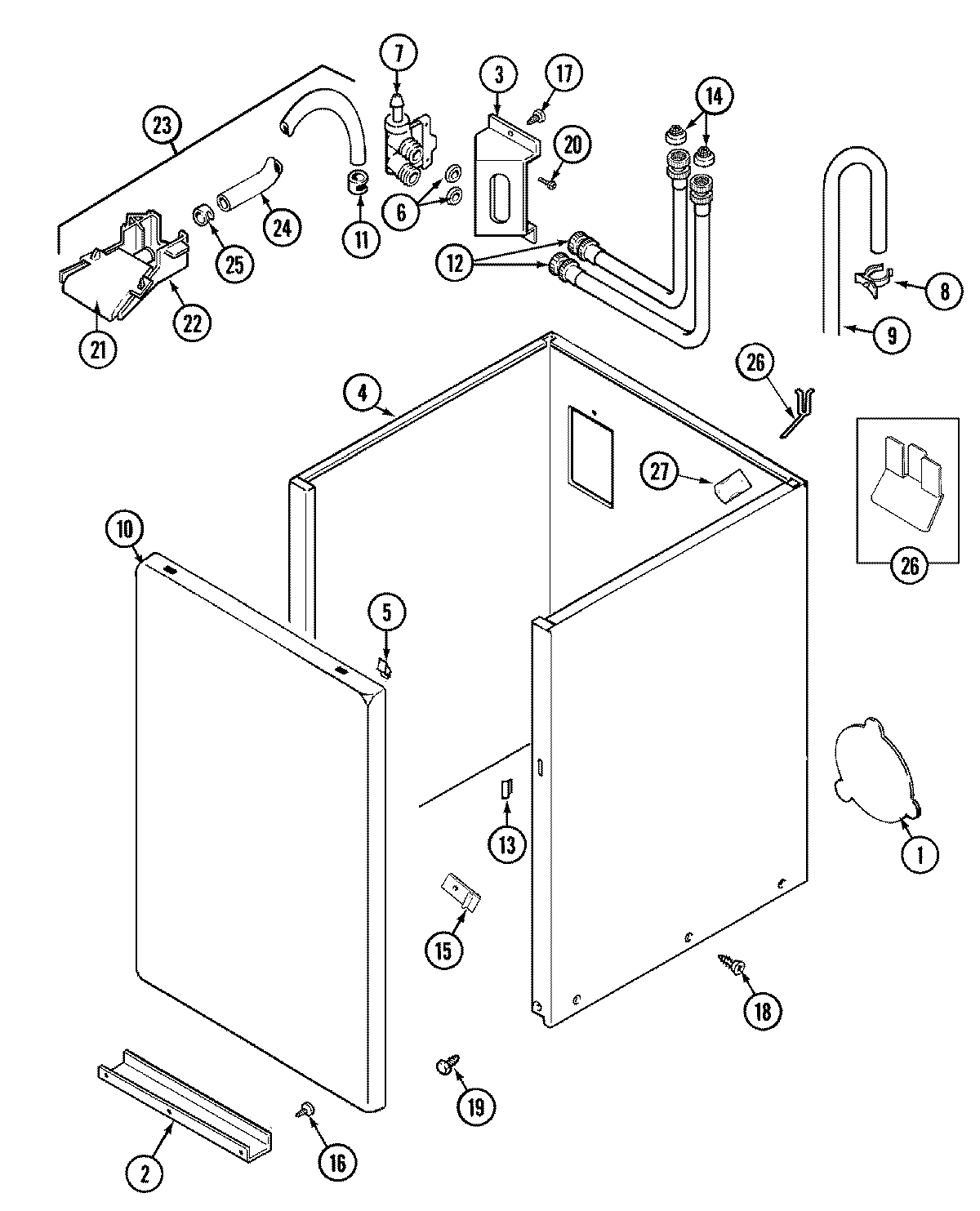

LAW2400AAE 02 – CABINET

LAW2400AAE 02 – CABINET

Written by

in

LAW2400AAE 02 – CABINET

Products

PositionProduct
1MAY 211878
1MAY 22001683
2MAY 213846
3MAY 22002361
3MAY 22003217
4MAY 22002379
5WP22001650 Whirlpool Spring Clip
6MAY Y013783
7WP96160 Whirlpool Washer Inlet Valve Screen
7WP22002360 Whirlpool Water Valve
8WP22002765 Whirlpool Hose Clip
9MAY 22002701
9WP22003410 Whirlpool Drain Hose
10MAY 22002366
12MAY 35-3401
12FILL HOSE 5' W/WASHER
13MAY 214376
14MAY 200961
15MAY 22002376
15W11573574 Whirlpool Screw
16WP90767 Whirlpool Screw
17MAY 22002372
18213007 Whirlpool Screw #12
19WPW10346892 Whirlpool Screw
20MAY Y313561
21MAY 22001187
22WP22001186 Whirlpool Injector
23WP22001304 Whirlpool Injector Assembly
24MAY 22001190
25WP596669 Whirlpool Hose Clamp
26MAY 22001972
27MAY 22002377
