LAW9304AAM 04 – CONTROL PANEL (LAW9304AAM & LAT9304DAM)

LAW9304AAM 04 – CONTROL PANEL (LAW9304AAM & LAT9304DAM)

Written by

in

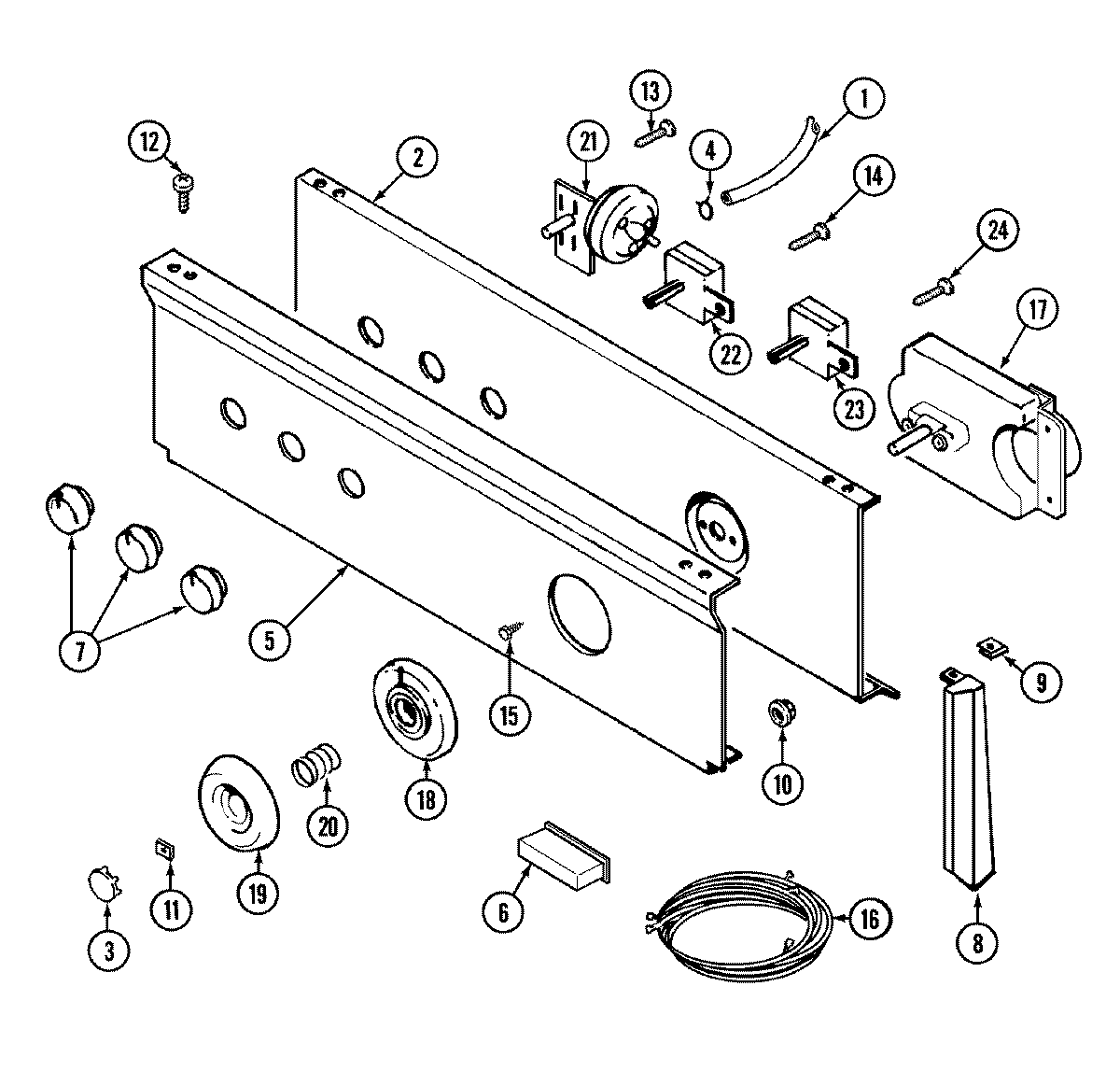

LAW9304AAM 04 – CONTROL PANEL (LAW9304AAM & LAT9304DAM)

Products

PositionProduct
1MAY 22001036
2MAY 22001132
2MAY 315483
2MAY 204807
3MAY 216424
4WP596669 Whirlpool Hose Clamp
5MAY 22001465
6MAY 214897
7MAY 22001269
8MAY 22001566
8MAY 22001293
8MAY 22001567
8MAY 22001292
9MAY 214894
10MAY 214872
11MAY 211605
12MAY 210932
15MAY 216412
16MAY 22001031
17MAY 22001256
18MAY 22001266
19MAY 22001199
20WP211065 Whirlpool Timer Spring
21MAY 208202
22MAY 208283
23MAY 22001259
24WPW10139210 Whirlpool Screw
25MAY 16000327
25MAY 22001324
