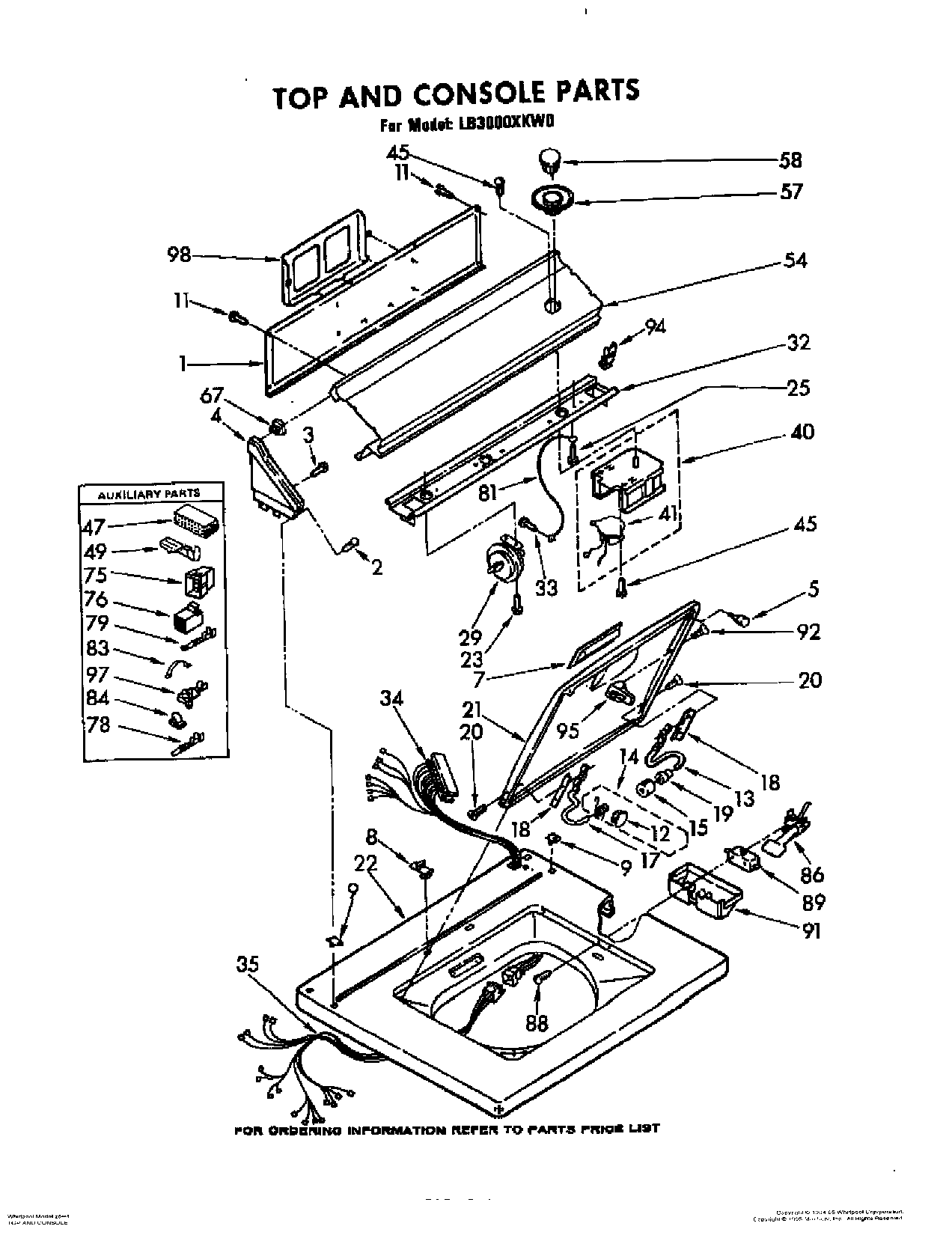

LB3000XKW0 04 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap , End (R.H.) (White)
4	Cap, End (L.H.) (White)
5	WP9724509 Whirlpool Bumper
7	WP686711 Whirlpool Door Handle
8	Nut, Push-In (2)
9	Stop, Push-In Top
11	W11693756 Whirlpool Screw Assembly
12	Plug, Button
13	WP91770 Whirlpool Hinge
14	Spring & Button, Lid ((L.H.))
15	Bumper, Lid Hinge
17	WP54584 Whirlpool Hinge
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
22	Lid (White)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level
32	Bracket, Control
33	SCREW
34	Harness, Console
35	Harness, Base
40	Timer, 60 Hz. (C.C.A.)
41	Motor, Timer (60 Hz.) (Use W/C.C.A. Timer)
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
49	Terminal, Female
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	Wire, Ground
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
86	Switch Actuator Assembly
88	Screw & Washer, Lid Switch (2)
89	W10820036 Whirlpool Door Switch Kit
91	WP359231 Whirlpool Shield
92	Screw & Washer
94	W10113937 Whirlpool Clamp
95	Strike, Lid Switch
97	WPL 357695
98	Rack, Literature
